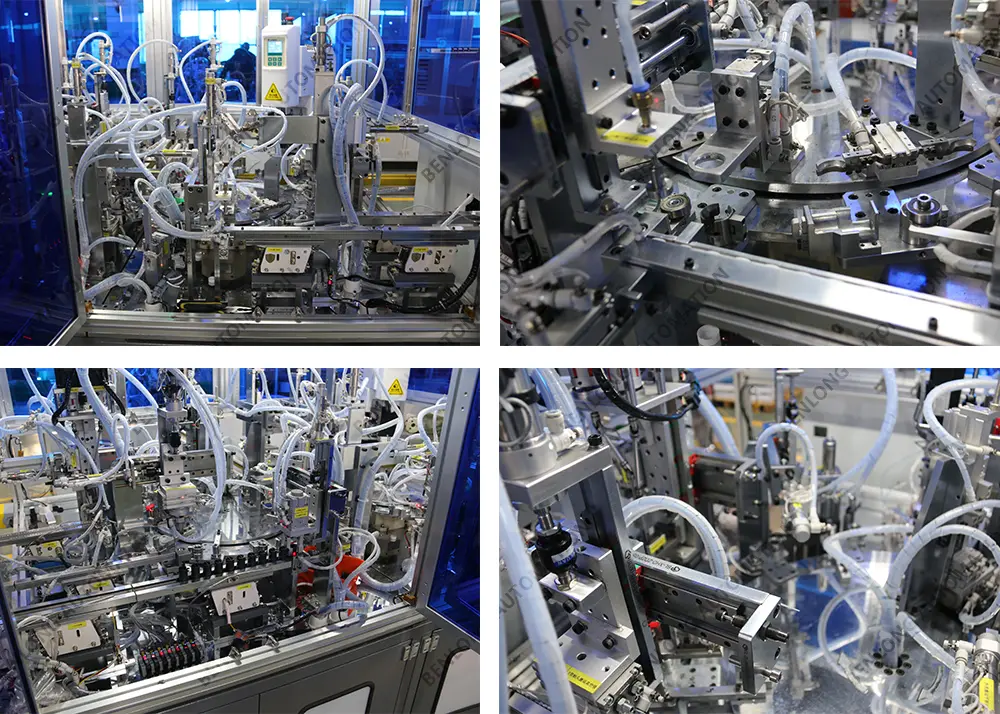

Fully Automatic Indicator Light Production Line
Indicator Light Automatic Manufacturing System is a complete package to create a pilot light, an industrial or a residential signal indicator and an LED indicator lamp. All aspects of the manufacturing process (i.e., insertion of the copper sheet, assembly of circuit boards (PCBs), riveting the housing, fastening with screws, pad printing, and finally packaging the base) have been automated. This manufacturing system is designed for high volume production with high quality while greatly reducing dependence on labor.

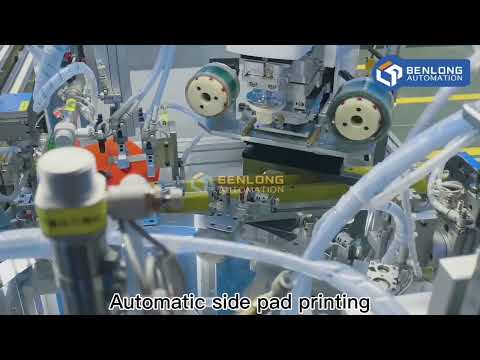

This line integrates robotic arms, servo driven riveting systems, automatic screwdriver workstations, and a pad printer for printing logos or ratings. The primary functions performed are the embedding of copper sheets on PCBs, PCB placement, 2 stage riveting (for electrical connector contacts), nut tightness (by automatic means) with rubber o-rings sealing the nuts, pad printing of logos/rating, and the final riveting to seal the covers onto the assemblies. Each of the workstations on the line are controlled by one central PLC with HMI which provides for real-time monitoring of operations and changeover to new recipes. The normal output of the line is 1200 to 2000 assemblies per hour, depending on how the equipment is configured.
Standard delivery: 30-60 days | ROI typically 8-14 months | Customizable for LED and neon indicators
Definition of Indicator Light Automation Assembly Line
An indicator light automatic production line is a fully automated assembly solution designed for the manufacture of indicator lights, display indicators, and LED indicator lights. The assembly line provides for the sequential assembly of mechanical and electrical components where the process includes the following: inserting copper conductive component parts; placing PCBs; riveting contacts; fastening screws and nuts (including the use of rubber sealing rings); applying pad printed ink markings; and finally sealing the base using rivets. The assembly line provides for no manual handling or variation, thereby guaranteeing that each indicator light manufactured meets the same high electrical and mechanical standards. The assembly line is best utilized by manufacturers of industrial control panels, household appliances, automotive dashboards, and signalling equipment.
Copper Insertion → PCB Placement → Riveting (2x) → Screw Fastening → Nut Tightening + Rubber Ring → Pad Printing → Cover Sealing → Final Riveting.
The vision-guided robots accurately position copper and circuit board component pieces. Riveting force and screw torque are digitally controlled.
An optional electrical continuity test, riveting force monitoring, and vision inspecting can be added at the critical assembly points.
Allows manufacturers to changeover between different sizes of indicator lights (8mm, 12mm, 16mm, 22mm) in less than 30 minutes using recipe based settings.
Machine Features & Assembly Process
Technical Specifications
| Applicable indicator types | Industrial pilot lights, LED indicators, neon signal lamps, 8/12/16/22mm panel mount sizes |
|---|---|
| Production capacity | 1,200 – 2,000 units/hour (depending on complexity) |
| Main assembly stations | Copper insertion · PCB placement · Riveting (2 stations) · Automatic screw driving · Nut tightening with rubber ring · Pad printing · Cover sealing · Final riveting |
| Riveting method | Servo‑controlled press riveting, force up to 5kN, accuracy ±2% |
| Screw & nut tightening | Automatic screwdriver (torque range 0.2–1.5 N·m); nut tightening with rubber ring placement |
| Pad printing | 1‑2 colors, automatic ink cup system, quick‑release cliché holder |
| Control system | PLC (Siemens/Mitsubishi) with HMI touch screen, recipe storage for up to 20 product models |
| Power supply | 380V ±10% 50Hz | Compressed air 0.5-0.7MPa |
| Optional modules | Electrical continuity test, LED brightness test, vision inspection for logo quality, automated boxing |
Key Advantages of the Integrated Assembly Line
Labor cost reduction
Replaces 8‑12 manual assembly operators with one machine attendant. ROI typically within 8‑14 months.
Consistent electrical reliability
Automated riveting and screw tightening eliminate human variation, ensuring stable contact resistance and sealing.
Compact modular footprint
Each station is designed as an independent module, allowing future expansion (e.g., adding a tester or packer).
Traceability ready
Optional barcode reader and data logging system record assembly parameters per unit for full traceability.
Trusted by industry leaders
Customer Success Story
A European manufacturer of industrial control panels faced high labor costs and inconsistent riveting quality for 22mm LED indicators. After deploying this indicator light automatic production line:
The project paid for itself over 11 months and allowed the business to keep up with the increasing need for their product without increasing their number of employees.
Applications and Production Flexibility
Standard Delivery and Commissioning
Request a Custom Indicator Light Production Line Quote
Send us your indicator light samples, drawings, or target output. Our engineers will design a tailored assembly line for your specific LED or neon pilot lamp.
WhatsApp: +86 150 5837 0007 | Email: xsb@benlongkj.cn | English & Chinese support
Why Choose Benlong for Indicator Light Automation?
- 15+ years designing indicator light automatic production lines for global brands
- Proven integration of riveting, screw driving, and pad printing in one line
- Servo‑controlled riveting with force monitoring for consistent contact resistance
- Modular design – add testing or packaging stations later
- Worldwide service support (Europe, Asia, Americas, Middle East)
Standard Line Inclusions
Copper insertion & PCB placement units · 2 servo riveting stations · Automatic screwdriver & nut tightening module (with rubber ring feeder) · Pad printing machine (1 color) · Cover sealing & final riveting unit · PLC with HMI · Safety enclosure · One set of change parts for one indicator size
Related solutions
Most Common Questions
This line will produce round panel indicator lights with standard sizes of 8mm, 12mm, 16mm, 22mm and can produce custom rectangular and miniaturized sizes with custom tooling.
The line offers electrical testing (continuity, LED brightness, polarity) as an option to be integrated after final assembly. We recommend to add a test module to ensure the highest quality assurance.
Yes, both indicator lights use a similar assembly process, however proper handling of the PCB when assembling LED panel indicators is critical. The line is capable of assembling both LED and Neon indicator lights; therefore, we will adapt the PCB mounting setups and screw fastening set-up to support your individual design.
Changeover for electrical parameter changes (color and voltage) are done via the recipe on the HMI – no changes are needed to the machines mechanically; for panel indicator lights that have different physical dimensions (e.g., 16mm vs. 22mm), it should take approximately 30 minutes to change tooling.
The line produces between 9,600 and 16,000 units per 8‑hour shift (1,200–2,000 per hour), depending on the number of parallel stations and indicator complexity.
