What is an ACB Comprehensive Test Bench?

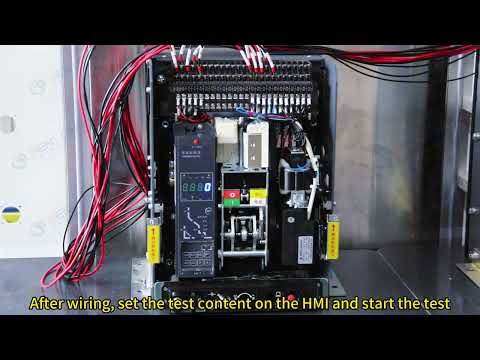

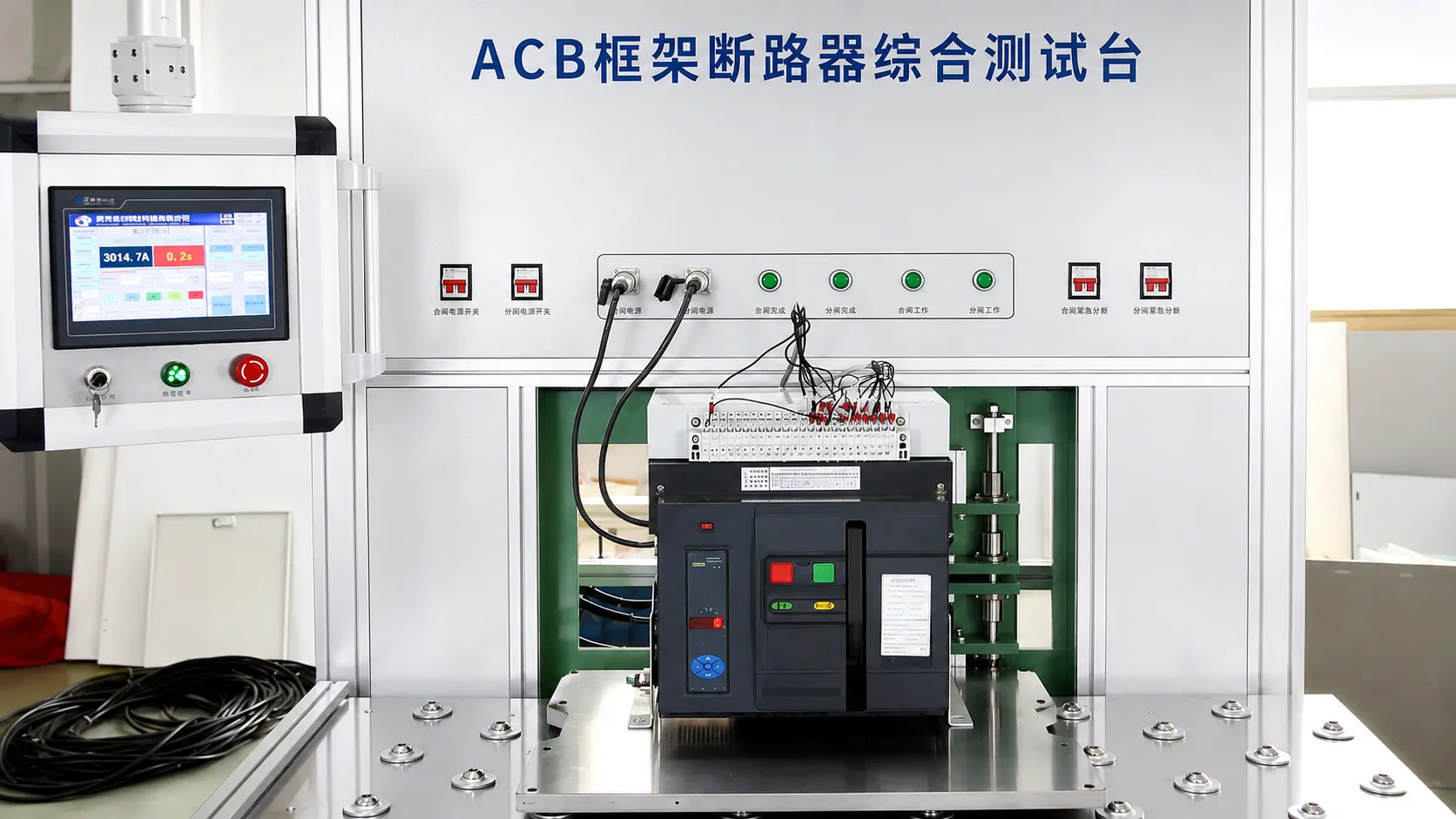

An ACB comprehensive test bench is a consolidated laboratory and production test station for air circuit breakers — the large-frame, high-current breakers (1600A–6300A) that protect main incoming circuits in low-voltage power distribution. Because these breakers sit at the top of the protection hierarchy, every unit must be verified before shipment, and IEC 60947-2 defines the verification practice the industry follows. The bench covers four complementary tests. The loop resistance test injects DC current through each pole and measures the voltage drop across the main circuit path at micro-ohm resolution: elevated resistance points to poor contact pressure, contamination, or connection defects that would otherwise appear later as dangerous heating in service. The insulation and withstand voltage test applies elevated voltage between poles and from phase to earth to verify dielectric integrity of the insulation system. The current characteristic test uses primary current injection to verify that the trip unit follows its protection curve — long-time, short-time, and instantaneous behavior — across the settings your production requires. Finally, the temperature rise and power consumption test carries the breaker at sustained current until thermal steady state, verifying that terminal and contact temperatures and internal losses stay within limits. Running all four on one bench eliminates the handling, re-connection, and floor space of separate stations — a significant saving when the device under test weighs as much as a large-frame ACB does.
