What is a Semi Automatic Welding Machine?

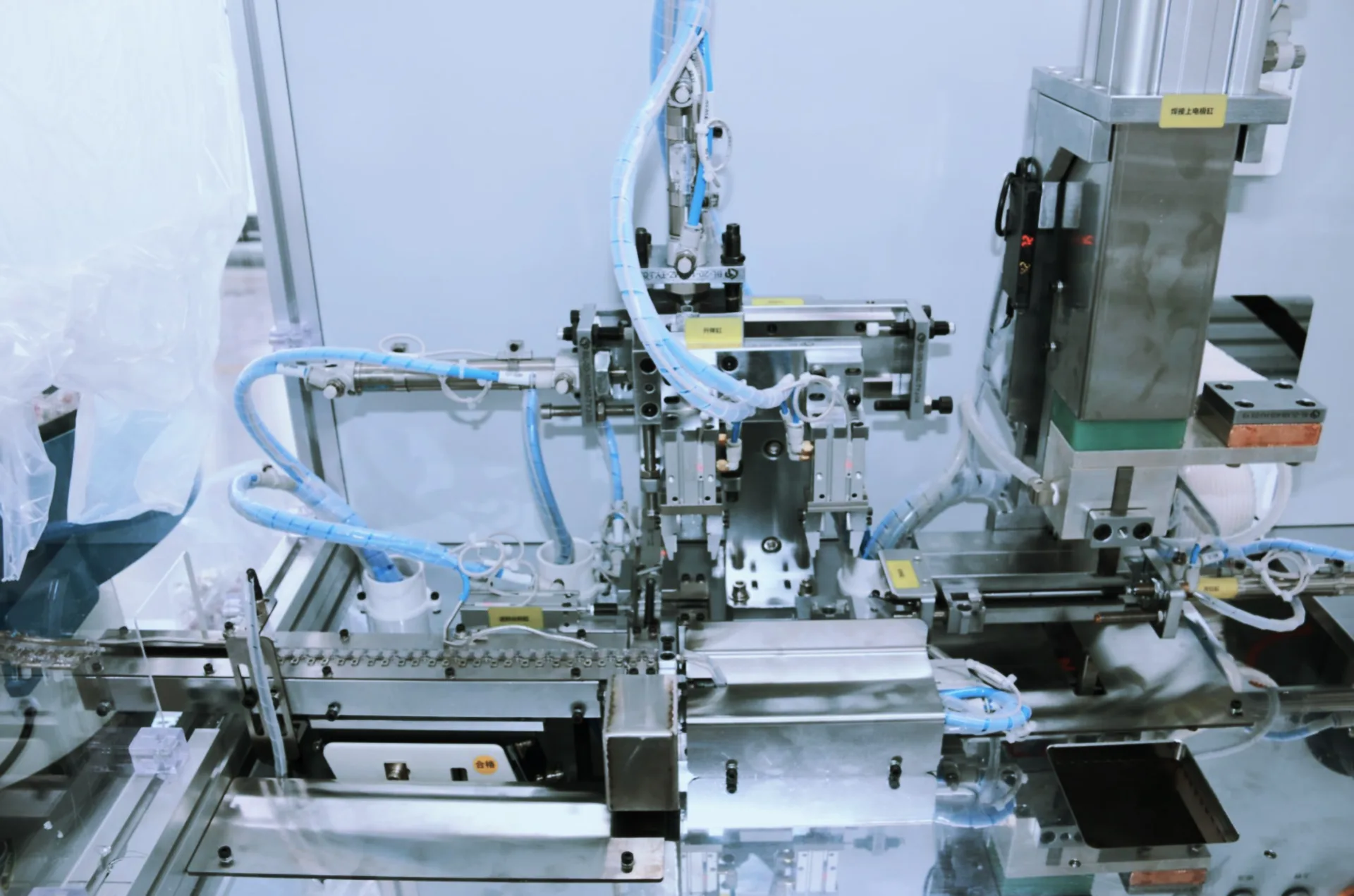

A semi-automatic welding machine represents a kind of spot welding device where the operator does load the parts, yet the machine itself takes care of all the important welding processes. In contrast with the fully manual spot welder, in this case, the welding parameters, welding position, and pressure values are set by the machine, which ensures that each of the parts is stably welded. As opposed to the fully automated solution, this option does not require any elaborate parts feeding systems and is a relatively cheap and effective decision for cases when medium volume production is required, or the part feeding is complex. In this configuration, part 1 is being fed into the welding fixture with the help of a bowl while the operator loads part 2 and pushes the start button after the parts are adjusted; at this point, the lifting cylinder raises the parts up to the welding height whereupon the upper welding body applies pressure for the medium-frequency welding process that takes two and a half seconds; the completed parts are unloaded by the machine itself. The operator checks the quality of welding on the parts after that. The machines are custom made, which means that we will customize the fixture, feeding technology, as well as welding parameters according to the shape of the of part, location of welding spots, and production features.
