What is a Toggle Spring Automatic Assembly Machine?

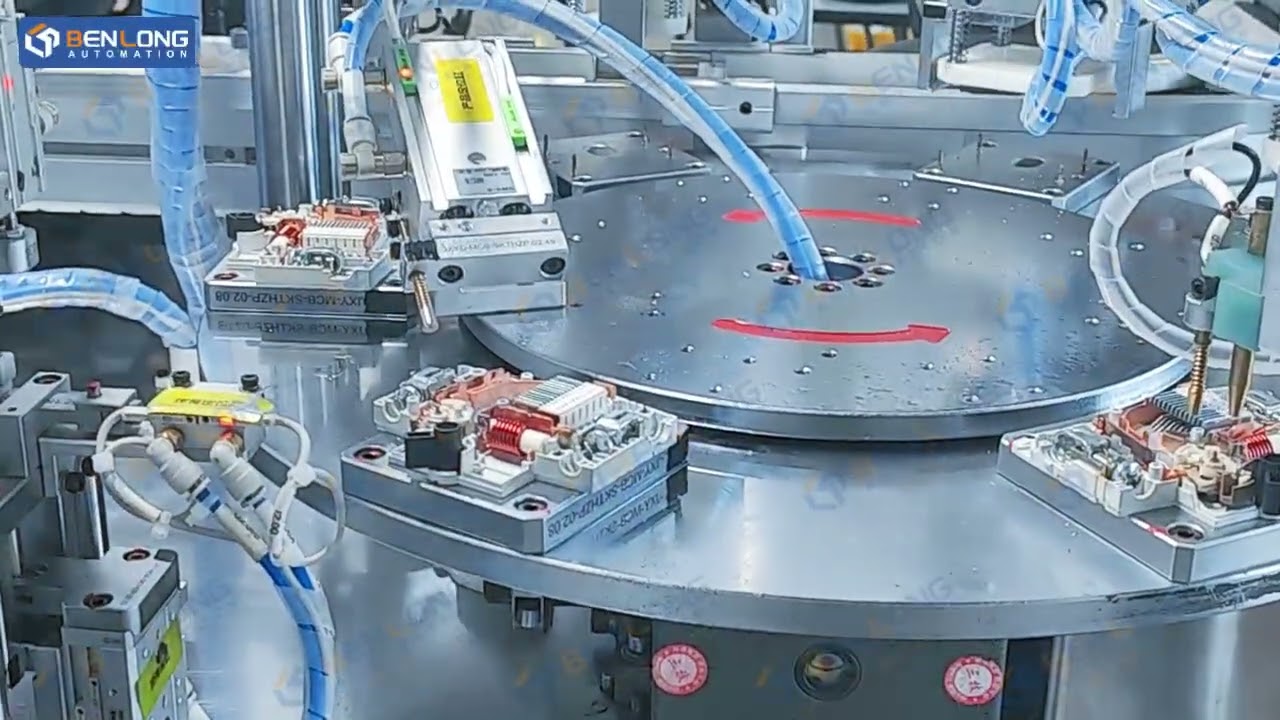

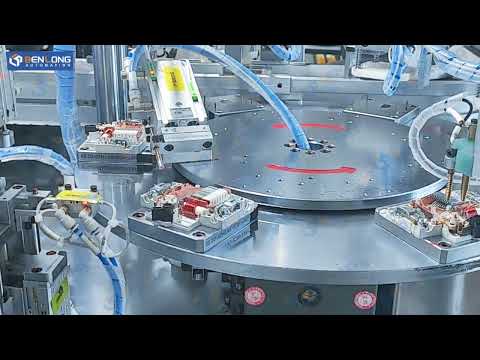

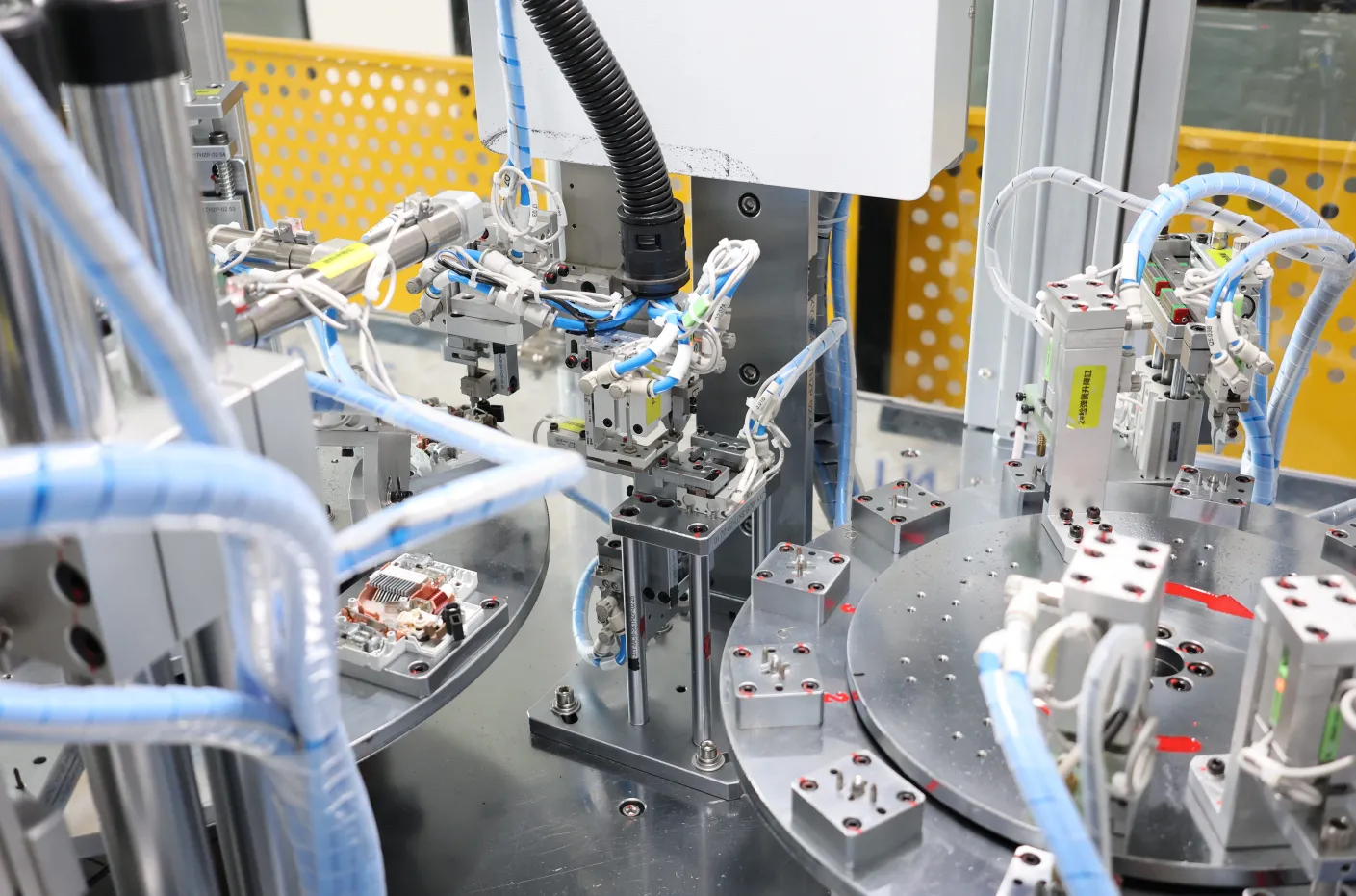

Inside a miniature circuit breaker, the toggle spring provides the operating force for the trip mechanism — it stores and releases the energy that gives the breaker its snap action. Installing that spring correctly is critical: if the spring is missing, mis-seated, or inconsistently loaded, the mechanism will not operate as designed, and the fault is hard and costly to catch once the breaker is fully assembled. Manual spring assembly is exactly where this goes wrong — handling a small spring under tension and seating it to the right position is difficult to repeat by hand across a full shift. A toggle spring automatic assembly machine replaces that manual step with a dedicated inline station. The machine sits within the assembly line: units flow in automatically from the upstream process, a sensor detects and separates each unit into position, the toggle spring is fed by a vibratory bowl, gripped and pre-assembled into the fixture, and then installed into the product mechanism. A detection station immediately checks that the spring is present; any unit that fails is automatically diverted to a reject area, while good units return to the conveyor and continue down the line. Because the operation runs inline and unattended, it removes both the labor and the inconsistency of manual spring fitting. As a non-standard custom machine, the fixtures, gripper, and feeding tooling are engineered around your specific product and toggle spring geometry.
