IEC 60898‑1 · High‑volume assembly

MCB Automatic Production Line
2,500+ units/hour | 1P‑4P assembly

An automated assembly line that makes MCBs is capable of performing many tasks. The assembly line welds the bimetal, welds the magnetic trip, assembles multiple poles, and performs electrical and mechanical endurance testing. The assembly line runs continuously and produces MCBs at a high volume.

2,500+
Units/hour
1P‑4P
Pole configuration
100%
Inline testing
15+
Integrated stations
Core advantages

Why a fully automatic MCB production line?

By utilizing automatic assembly lines, manufacturers of large volumes of miniature circuit breakers are able to ensure consistent torque, accurate bimetal placement (position), and have conducted 100% in-line mechanical and electrical testing in compliance with IEC 60898-1 standards .

Multi‑pole automatic assembly
CCD vision‑guided conversion from 1P to 2P/3P/4P. Servo riveting with real‑time force monitoring. Tool‑less changeover between pole configurations.
Precision welding stations
Automatic welding for bimetal support frames (±0.05mm) and magnetic trip set coil leads. Micro‑resistance or laser welding with post‑weld verification.
Integrated endurance testing
Mechanical life test (ON/OFF cycling) and electrical endurance test with programmable L‑R load, contact voltage drop monitoring, auto‑shutdown on welding.
MES & full traceability
Each unit’s welding parameters, torque values, and endurance results linked to serial number. Real‑time SPC and reject sorting.
Integrated line modules

Our MCB automatic production line components

All necessary elements for assembling and testing micro circuit breakers. These include parts feeding systems all the way through endurance benchmarks.

Each module can be ordered separately or as a fully integrated line. Custom configurations for 1P‑4P MCBs available.
Field results

Real impact from automatic MCB lines

Global MCB brand – China
Deployed full assembly line for 1P‑4P MCBs. Output increased from 1,200 to 2,600 units/hour. Welding consistency improved by 90% with vision‑guided stations.
Indian electrical manufacturer
Integrated multi‑pole assembly and electrical endurance test. Reduced field failures due to contact welding by 70%. Payback period 11 months.
Middle East distributor
Custom line for B/C/D curve MCBs. Achieved 100% inline mechanical life verification. Passed major utility audit with full traceability.
European OEM
Added automatic bimetal welding and magnetic trip assembly. Labor cost reduced by 65%, first‑pass yield 99.4%.
Technical specs

Traditional semi‑auto line vs. our fully automatic MCB line

Gain awareness of the variations between testing coverage, throughput and packaging accuracy while producing compact circuit breakers.

Parameter Traditional semi‑auto line Benlong fully automatic line
Output (units/hour)800‑1,2002,500‑3,500
Pole assembly methodManual clip + hand screwCCD vision + servo riveting
Welding accuracy (bimetal)±0.2mm (operator)±0.05mm (vision guided)
Magnetic trip weldingManual solderingMicro‑resistance/laser, post‑weld check
Mechanical endurance testSample‑based, external100% inline, programmable cycles
Electrical endurance testSample‑based100% inline, L‑R load, contact monitoring
Traceability levelPaper logSerialized barcode, MES upload
Typical investment$200k – $500k$800k – $2.2M+

If an MCB line is fully automated, then its payback period is 12-18 months with a capacity of at least 5 million units annually. Determine your return on investment (ROI).

Design guide

How to specify an MCB automatic production line – 5 steps

Plan your miniature circuit breaker assembly line for maximum efficiency and IEC compliance.

Step 1: Define pole mix & output volume
Specify ratio of 1P, 2P, 3P, 4P MCBs and daily target. This determines multi‑pole assembly station design and changeover frequency.
Step 2: Select welding technologies
Bimetal support frame → resistance welding; magnetic trip coil leads → micro‑resistance or laser welding. Both with integrated verification.
Step 3: Decide endurance test scope
Mechanical only (ON/OFF cycles) or electrical with L‑R load (PF 0.85). For IEC 60898‑1 Clause 9.11 compliance, electrical endurance is required.
Step 4: Plan for quick changeover
Tool‑less changeover between pole configurations (15‑20 minutes). For frequent changes, add a second set of fixtures.
Step 5: Specify MES & data logging
Each unit’s welding parameters (current, time, force), torque values, and test results linked to serial number. Real‑time SPC dashboards.

If you’re interested in a full MCB Production solution, just send us your Pole Combination and what you need to produce (Output) and we can provide you with a complete production line. Please contact our line integration team →

COMPANY PROFILE

Automation System Integration at the Core

Benlong Automation Technology Co., Ltd. is a proudly recognized national high-tech enterprise engaged in developing state-of-the-art digital intelligent manufacture equipment. Established in 2008 in Wenzhou, China, we specialize as a manufacturer-focused provider of MCB automatic assembly and testing solutions to low-voltage electrical manufacturers globally.

We design our automated MCB manufacturing lines for mass production by combining multi-pole manufacturing, accurate welding, mechanical/electrical endurance testing, and MES connection.

We specialize in providing assembly equipment and services for manufacturers who produce miniature circuit breakers as they transition to Industry 4.0.

MCB production line assembly workshop
National High-Tech EnterpriseMCB Assembly & Test
2008Founded
50.88MRegistered Capital RMB
160+National Patents
26Software Copyrights
300+Qualification Records
1200+Customers Served
MCB production line engineering
ENGINEERING & INTEGRATION

From components to full MCB assembly line

Benlong manufactures and designs fully automatic MCB production lines, comprising all essential processes, such as multi-pole assembly, bimetal welding, magnetic trip welding, cycling for mechanical endurance, electrical endurance testing, and packaging. In addition, we also provide turnkey installations, PLC programming, and MES handshake.

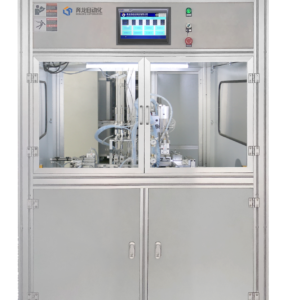

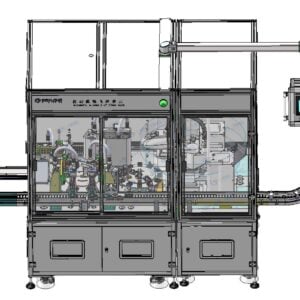

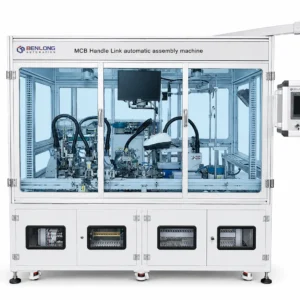

Multi‑pole automatic assembly machine – CCD vision, servo riveting, tool‑less changeover

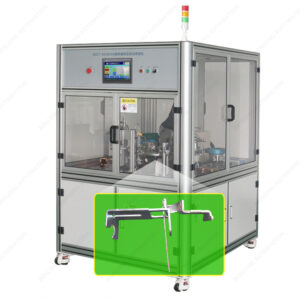

Bimetal support frame welding machine – ±0.05mm accuracy, 1,400‑2,400 pcs/hour

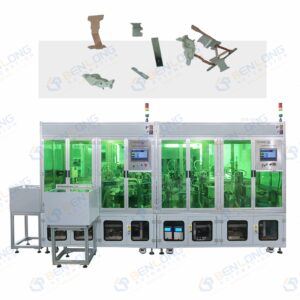

Magnetic trip set welding machine – micro‑resistance or laser, post‑weld verification

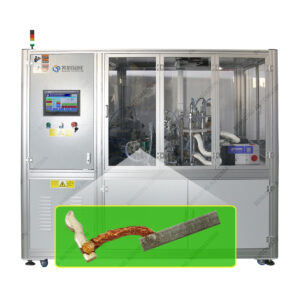

Electrical endurance test bench – L‑R load, contact welding detection, auto shutdown
