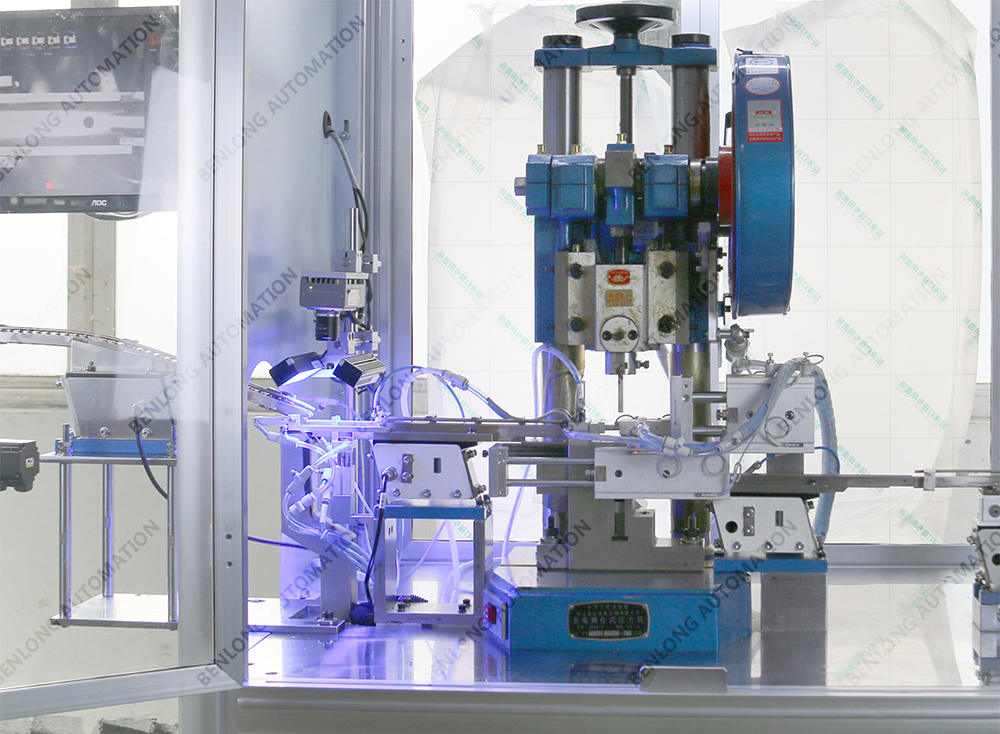

Visual coil peeling automatic detection equipment

Short Description:

Visual inspection: The equipment is equipped with a high-resolution visual system, which can comprehensively and accurately detect the quality of coil peeling. Through image processing and algorithm analysis, key parameters such as peeling position, peeling depth, and peeling quality can be detected.
Automatic peeling operation: The device has an automatic peeling function, which can automatically identify and peel off the insulation layer of the coil. By setting the stripping parameters, automated stripping operations are achieved, improving stripping efficiency and consistency.
Peeling parameter setting: The device can set parameters according to the requirements of different coils, such as peeling depth, peeling speed, etc. Users can make adjustments as needed to ensure peeling quality and coil integrity.
Peeling quality inspection: The equipment can detect whether there are quality issues during the peeling process, such as incomplete peeling, deviation of peeling position, etc. Through real-time monitoring and algorithm analysis of the visual system, timely detection and alarm can be made to ensure that the coil peeling quality meets the requirements.
Data recording and analysis: The equipment can record key data during the peeling process, such as peeling depth, peeling position, etc. These data can be used for quality management and traceability, as well as for optimizing the peeling process through data analysis to improve peeling efficiency and stability.
Flexibility and adaptability: The device can adapt to coil peeling operations of different sizes, shapes, and types. By adjusting parameters and settings, it can adapt to different coil peeling needs, improve the applicability and flexibility of the equipment.

Send email to us

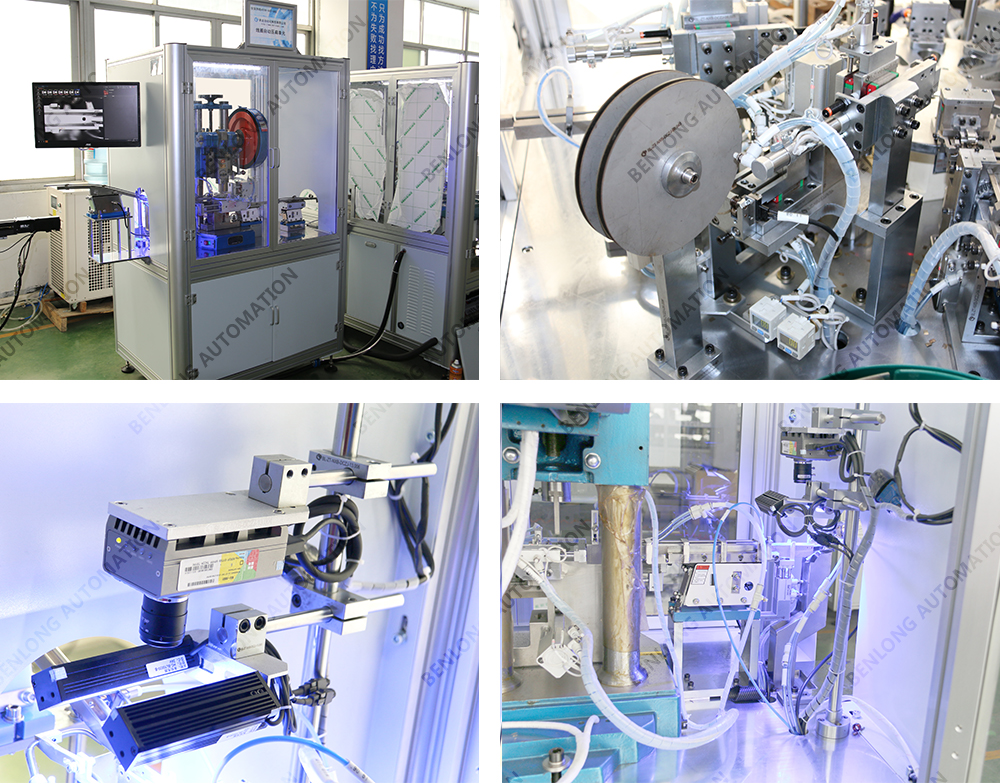

Photograph

Parameters

Video

Previous: Visual automatic core insertion equipment

Next: Visual silver dot automatic detection equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. Detection current accuracy ± 1%; Waveform distortion ≤ 3%; The output current can be set arbitrarily.
7. Automatic detection method: Single phase detection and series detection can be selected.
8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
9. There are two operating systems available: Chinese and English.
10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
11. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
12. Having independent and independent intellectual property rights.
