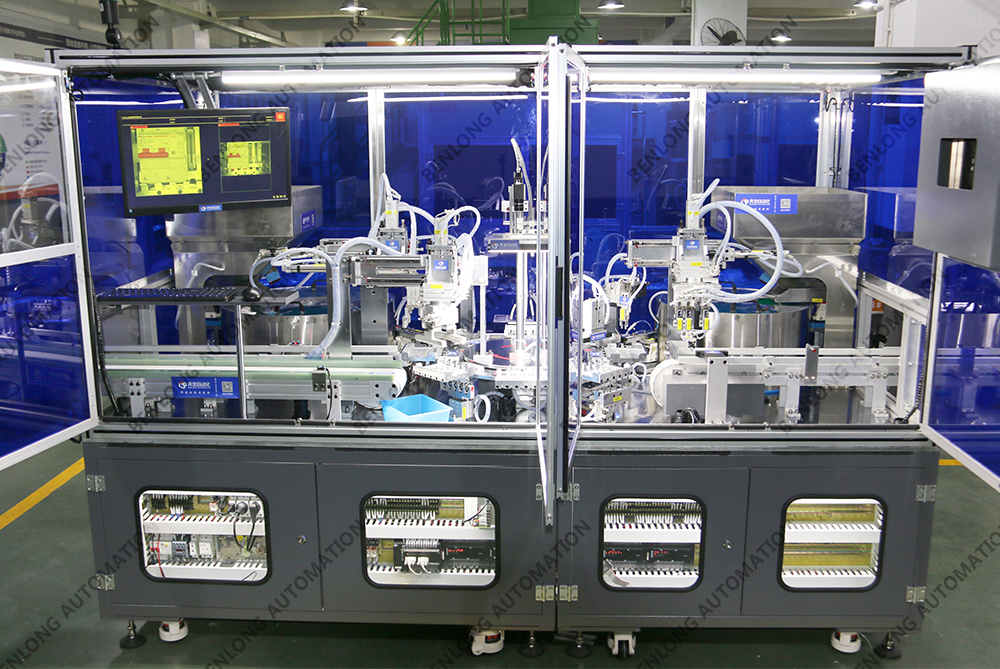

Visual automatic clamping equipment

Short Description:

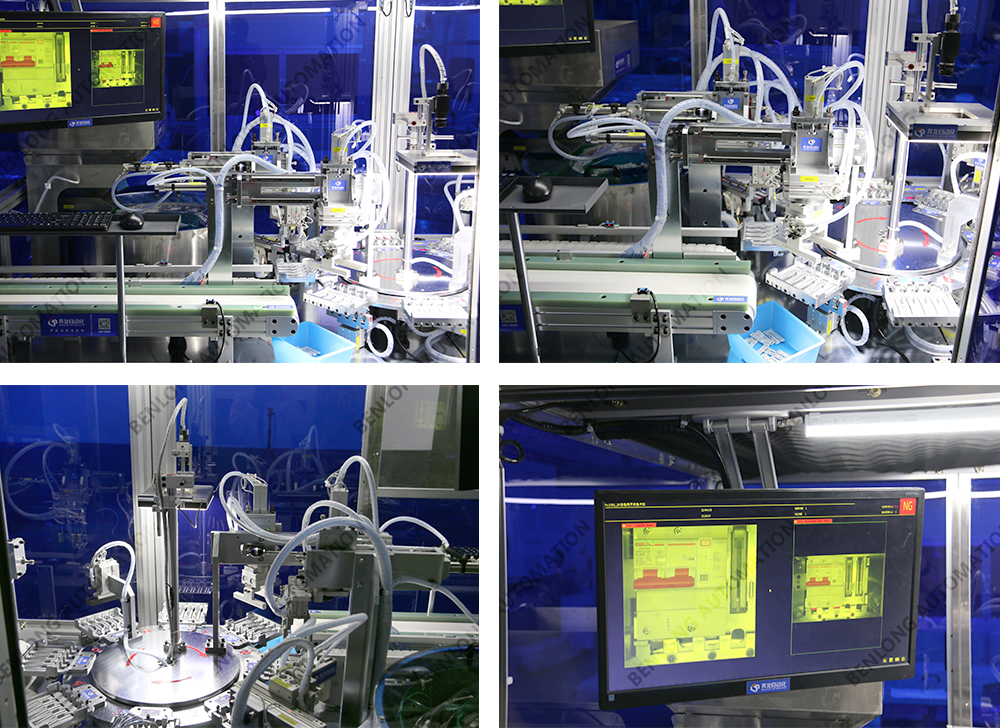

Visual guidance: The device is equipped with a high-precision visual system that can monitor the position of clips and objects in real-time, and guide according to the preset assembly path. Through visual guidance, the accuracy and precision of the buckle installation can be ensured.
Automated assembly: The equipment can automatically perform buckle installation operations, reduce manual operations, and improve assembly efficiency and consistency. Automated assembly can ensure the stability and consistency of assembly, avoiding assembly defects caused by human factors.
Clamping parameter control: The device has adjustable clamping parameters, such as assembly force, angle, position, etc. Users can set and adjust according to specific requirements to achieve the best assembly effect.
Real time detection and feedback: The equipment is equipped with high-precision sensors, which can detect assembly quality and defects in real time. If assembly problems are found, the equipment will provide timely feedback and make corresponding adjustments to ensure that the assembly quality meets the requirements.
Data recording and analysis: Equipment can record assembly parameters and assembly process data for analysis. This helps optimize assembly processes, improve assembly quality and efficiency, and provide reliable data support for quality management and traceability.

Send email to us

Photograph

Parameters

Video

Previous: Visual silver dot automatic welding equipment

Next: Visual automatic core insertion equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz
2. Device compatibility specifications: CJX2-0901, 0910, 1201, 1210, 1801, 1810.
3. Equipment production rhythm: 10 seconds per unit.
4. Different specifications of products can be switched with one click or scan code switching; Switching between different shell shelf products requires manual replacement or adjustment of molds/fixtures, as well as manual replacement/adjustment of different product accessories.
5. Assembly method: manual assembly and automatic assembly can be selected at will.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights
