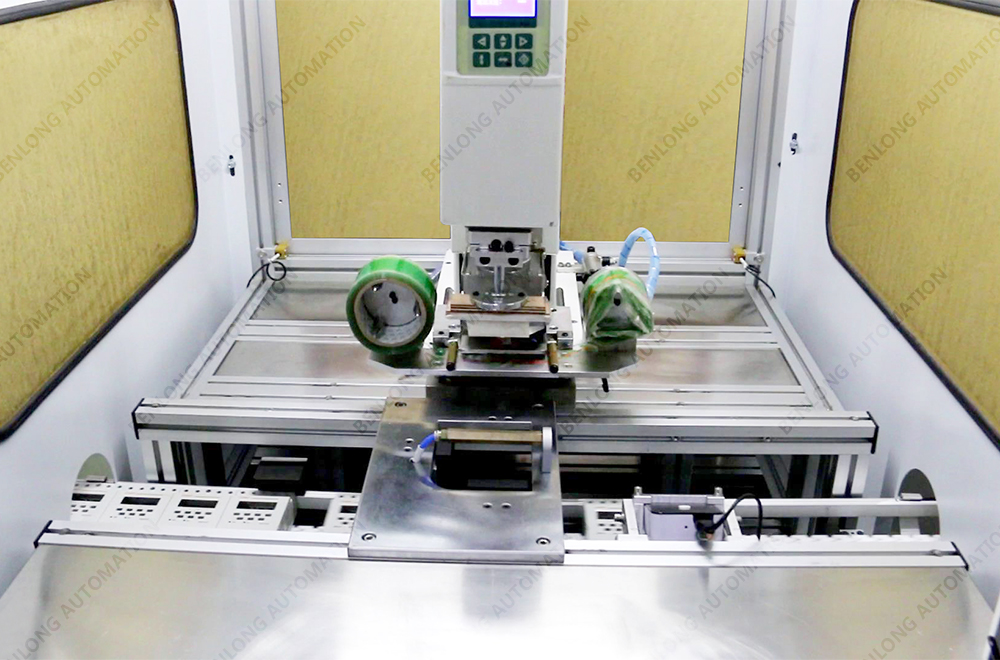

Time controlled switch automatic transfer printing equipment

Short Description:

Automation operation: The equipment is controlled by a time controlled switch to achieve automation of transfer printing operations, without the need for manual intervention, improving production efficiency and reducing labor costs.
Transfer printing function: The device can transfer patterns, text, or images from one material surface to another based on preset parameters and patterns. It can be used for pad printing of various materials such as clothing, ceramics, glass, etc.
Transfer printing speed: The device’s time control switch can set parameters such as transfer printing time, speed, and pressure to control the transfer printing speed. Adjustments can be made based on actual needs to improve production efficiency.
Transfer printing accuracy: The device can ensure accurate positioning and transfer of transfer printing through the control of a time controlled switch. It can meet the requirements of different products for fine pad printing.
Material adaptability: The equipment can adapt to various materials and surfaces, including fabrics, metals, plastics, glass, ceramics, etc. Can achieve transfer printing without damaging the surface of the material.
Programmable control: The timing switch of the device can be programmed to achieve flexible pad printing modes and sequences. Customized pad printing operations can be carried out according to different needs.

Send email to us

Photograph

Parameters

Video

Previous: Time controlled switch automatic laser marking equipment

Next: Automated welding and assembly equipment for time control switches

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, and 3 seconds per pole; Five different specifications of equipment.
4. The same shelf product can be switched between different poles with one click or scan code switching; Different shell frame products require manual replacement of molds or fixtures.
5. The detection method for defective products is CCD visual inspection.

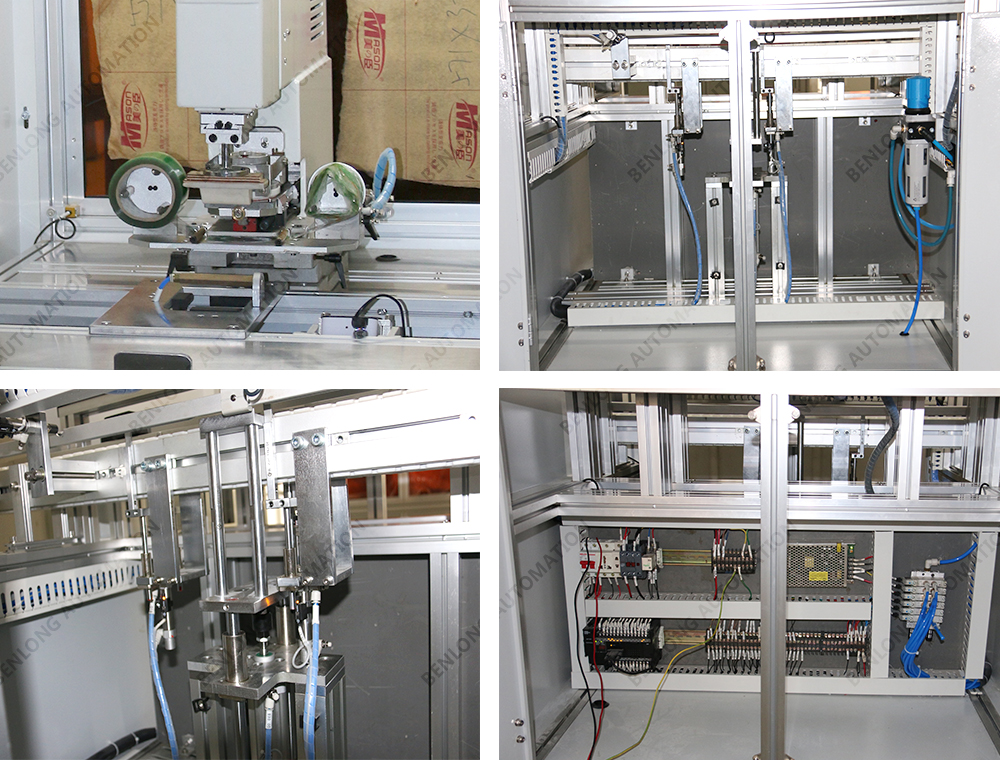

6. The transfer printing machine is an environmentally friendly transfer printing machine that comes with a cleaning system and X, Y, and Z adjustment mechanisms.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights
