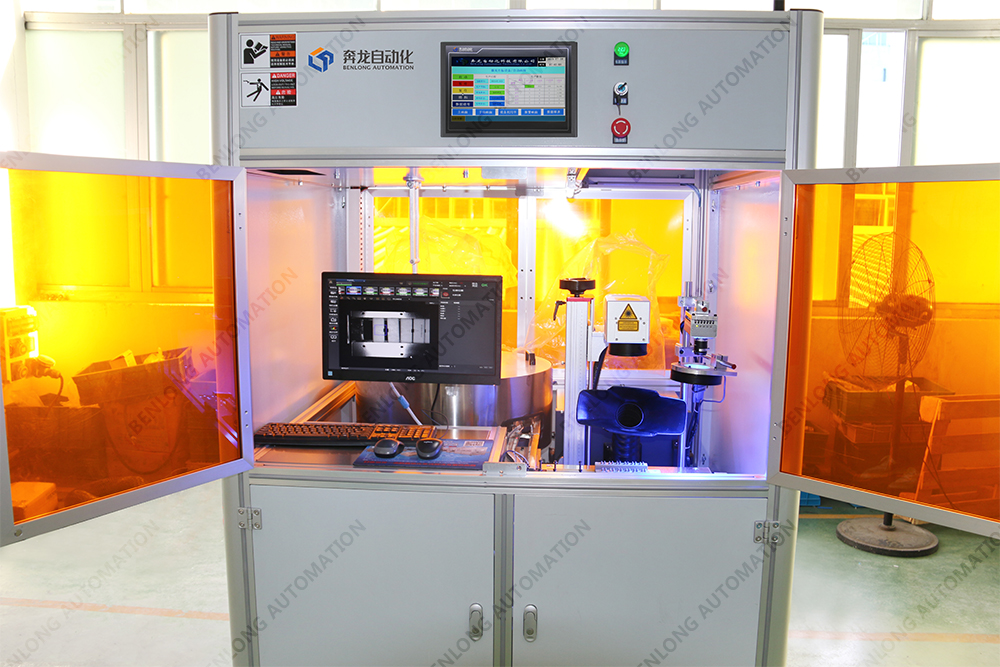

Time controlled switch automatic laser marking equipment

Short Description:

Automatic operation: the equipment is controlled by time control switch to realize the automatic operation of laser marking without manual intervention, which improves the production efficiency and reduces the labor cost.

Marking function: the equipment can use laser technology to mark text, patterns, bar codes, etc. on different material surfaces according to preset parameters and patterns. The marking effect is clear and accurate.

Marking speed: The time control switch of the equipment can set parameters such as laser working time, dwell time and moving speed to control the marking speed. It can be adjusted according to the actual demand to improve the production efficiency.

Marking precision: the equipment can ensure the precise positioning and movement of the laser through the control of the time control switch to realize high-precision marking. It can meet the demand for fine marking in different fields.

Material adaptability: the equipment can adapt to different materials, including metal, plastic, glass, ceramics and so on. Laser marking technology can mark without damaging the surface of the material, maintaining the integrity of the material.

Programmable control: The equipment’s time control switch can be programmed to achieve flexible marking patterns and sequences. The marking operation can be customized according to different product requirements.

Send email to us

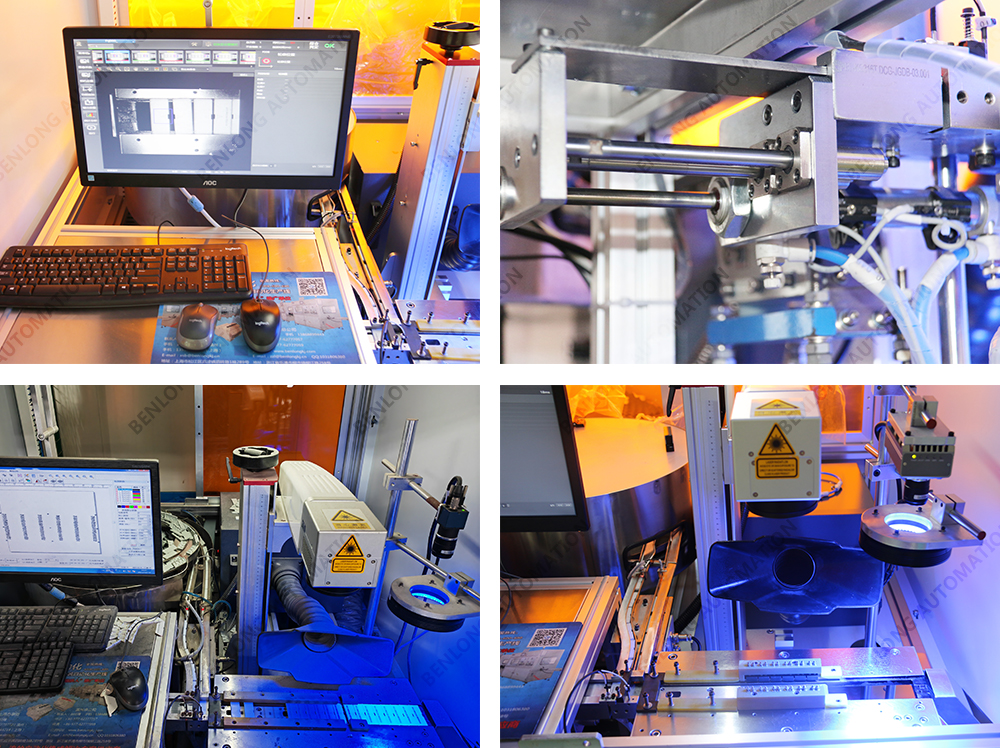

Photograph

Parameters

Video

Previous: Time switch aging test equipment

Next: Time controlled switch automatic transfer printing equipment

1, equipment input voltage 220V/380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible with the number of poles: 1P, 2P, 3P, 4P, 5P
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of the device.
4, the same shell frame products, different poles can be switched with one key; different shell frame products need to manually replace the mold or fixture.
5、Equipment fixture can be customized according to the product model.
6, laser parameters can be pre-stored in the control system, automatic access to marking; marking two-dimensional code parameters can be set arbitrarily, generally ≤ 24 bits.
7、Equipment with fault alarm, pressure monitoring and other alarm display functions.
8, Chinese and English version of the two operating systems.
9, all core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
11、Independent independent intellectual property rights
