Thermal relay automatic assembly test equipment

Short Description:

Automated assembly: able to automatically complete the assembly process of the thermal relay, improve production efficiency and reduce labour costs.
Testing function: It can test the performance and function of the assembled thermal relays to ensure the quality of the products.
Data recording and analysis: it can record the testing data of each thermal relay and analyse the data in order to find out and solve the problems in the assembly in time.
High precision and stability: with high-precision testing instruments and stable assembly system to ensure the accuracy and reliability of testing results.
Automatic alarm and troubleshooting: it can automatically identify problems in assembly and alarm, and at the same time, it has the function of troubleshooting to improve the stability and reliability of the production line.
Overall, the thermal relay automatic assembly and testing equipment can improve production efficiency, ensure product quality, reduce costs, and has the characteristics of high precision, stability and automation.

Send email to us

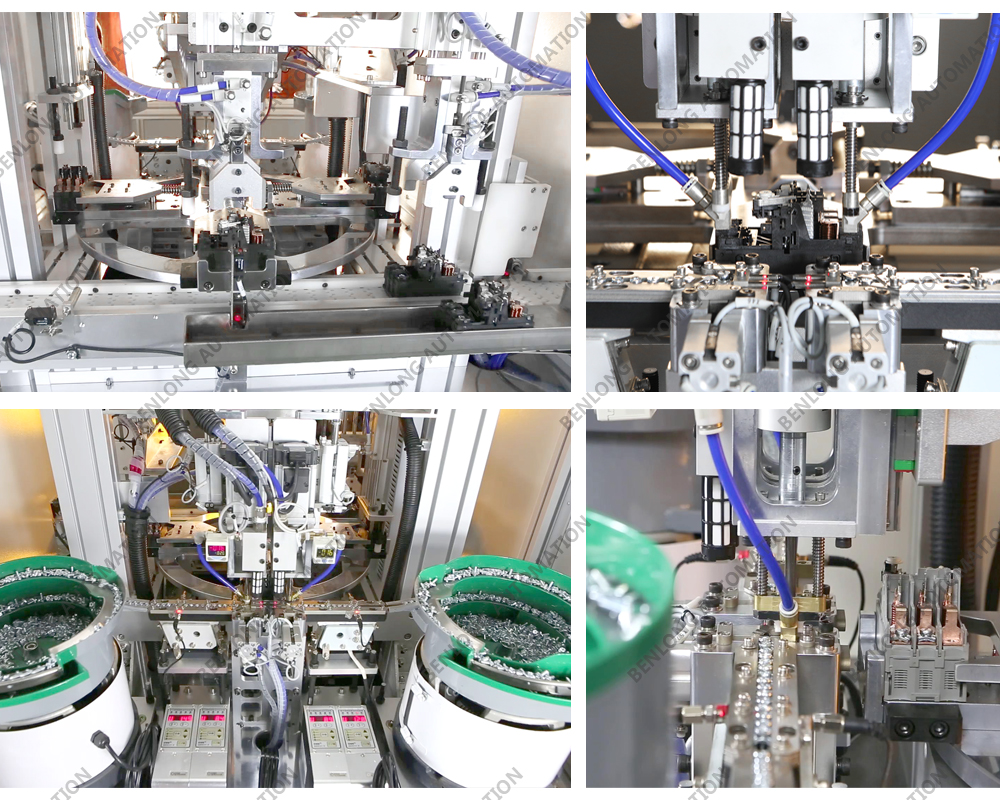

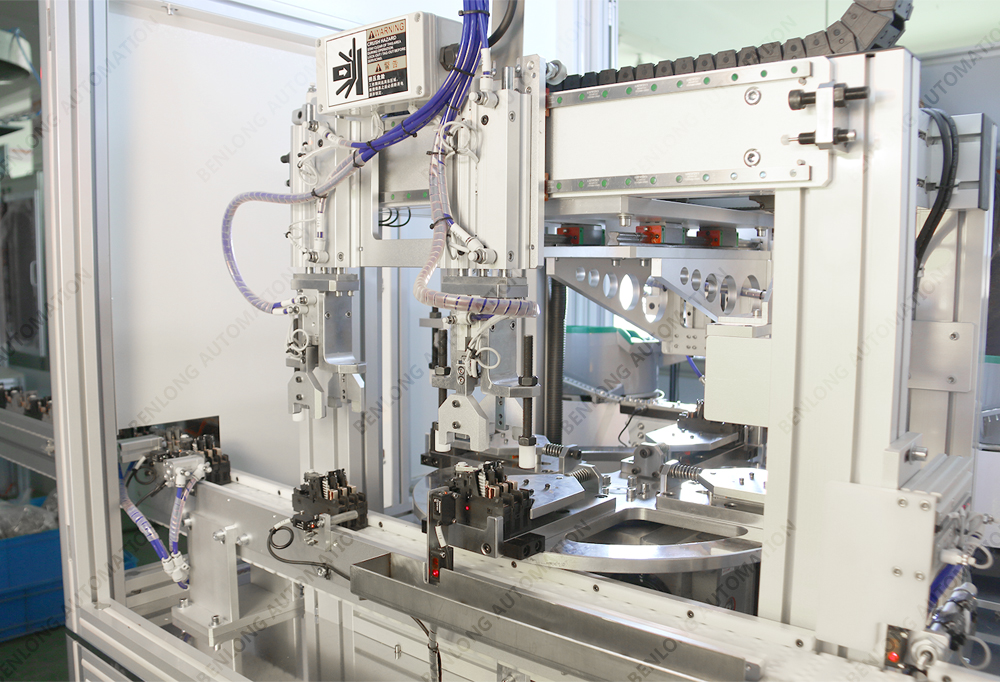

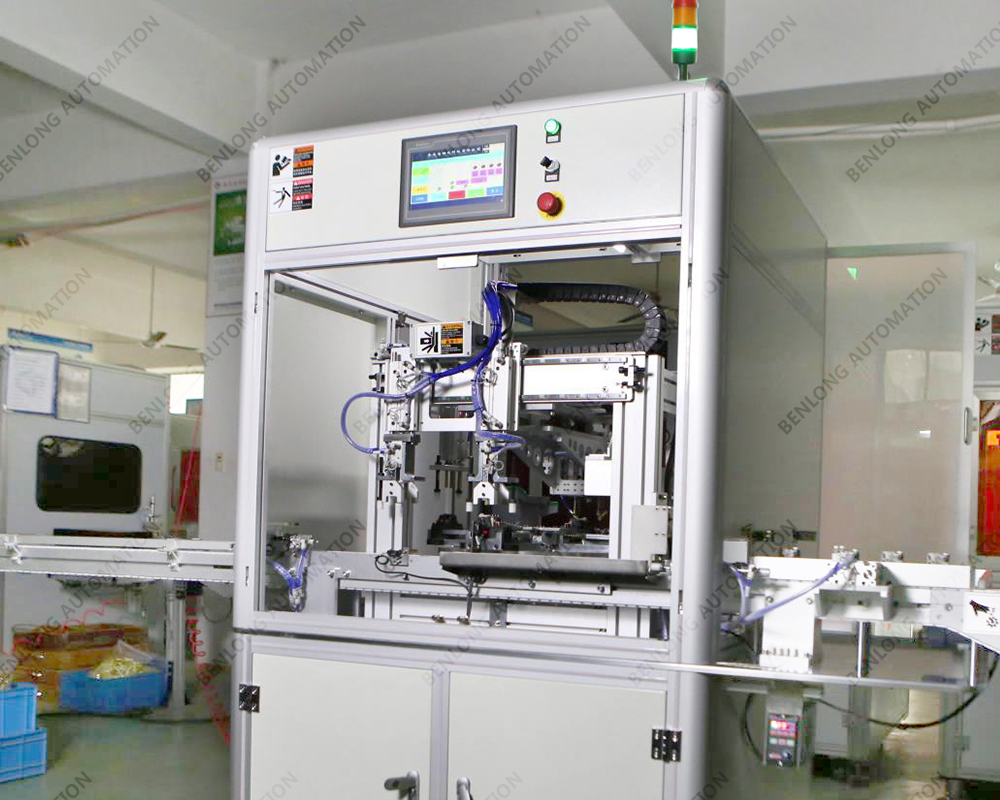

Photograph

Parameters

Video

Previous: AC Automatic pad printing equipment for contactors

Next: MCB Manual Delay Test Equipment

1. Equipment input voltage 220V ± 10%, 50Hz; ± 1Hz;
2. Number of compatible poles for the device: can be customized according to the product model.
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, 3 seconds per pole; Five different specifications of equipment.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Switching products requires manual replacement of molds or fixtures.
5. Assembly methods: manual assembly and automatic assembly can be freely selected.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
