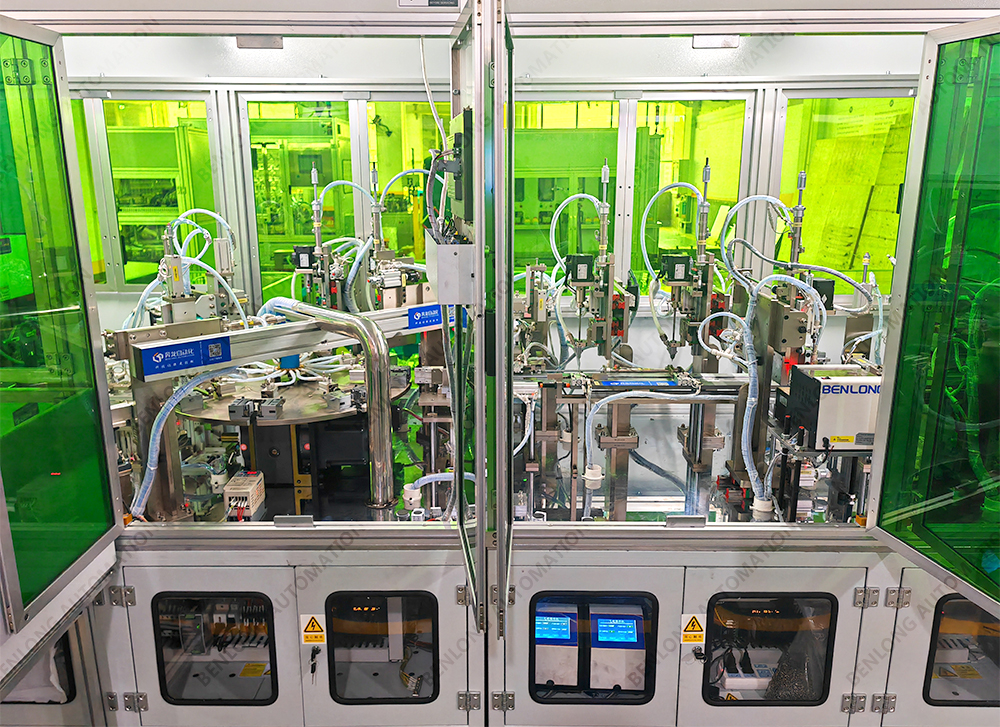

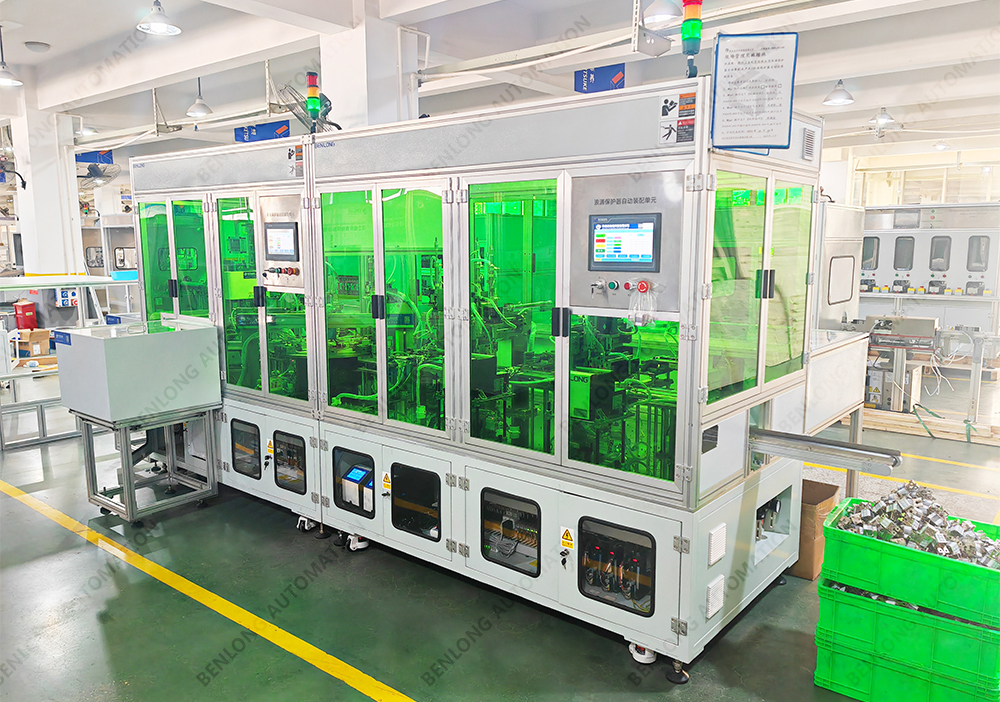

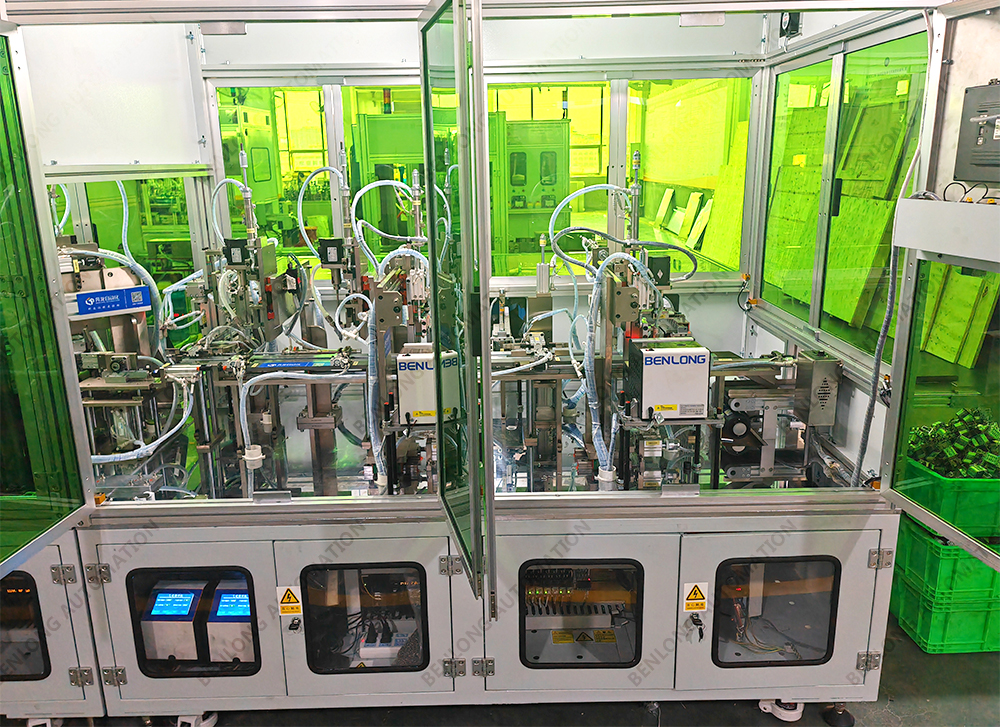

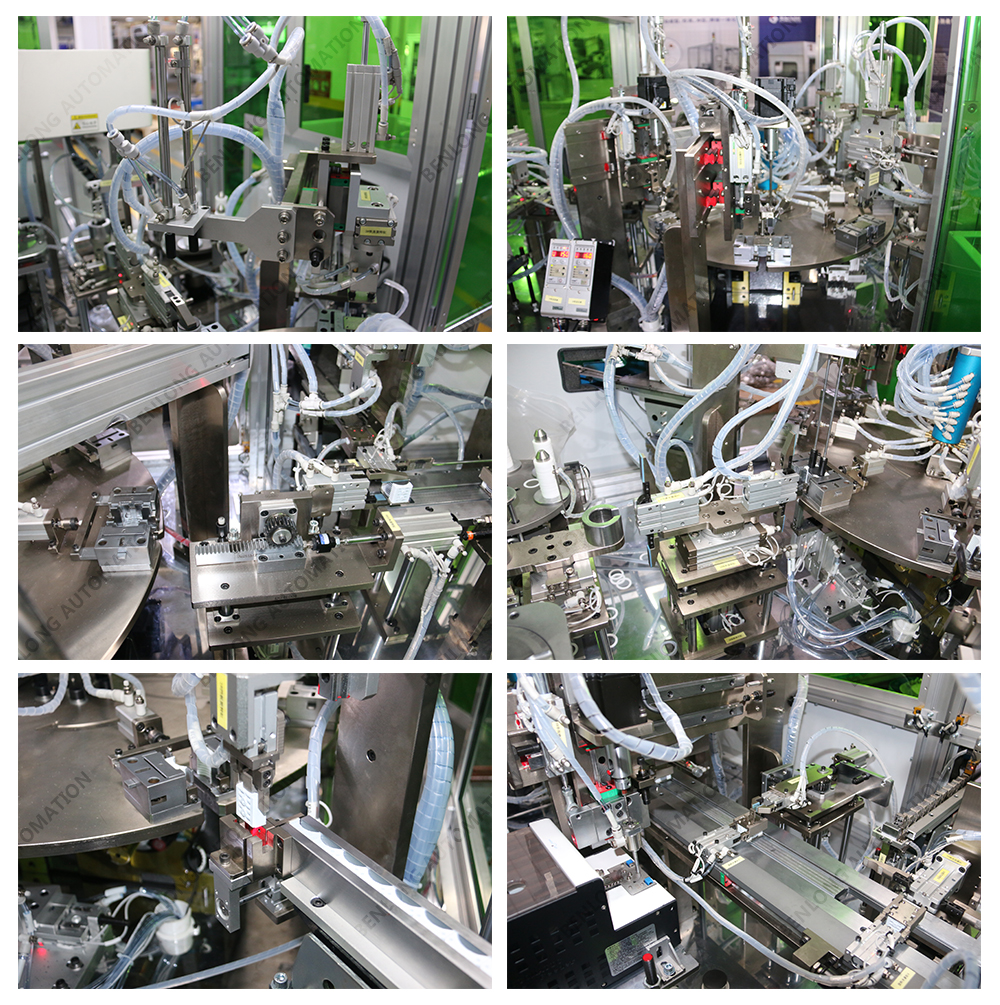

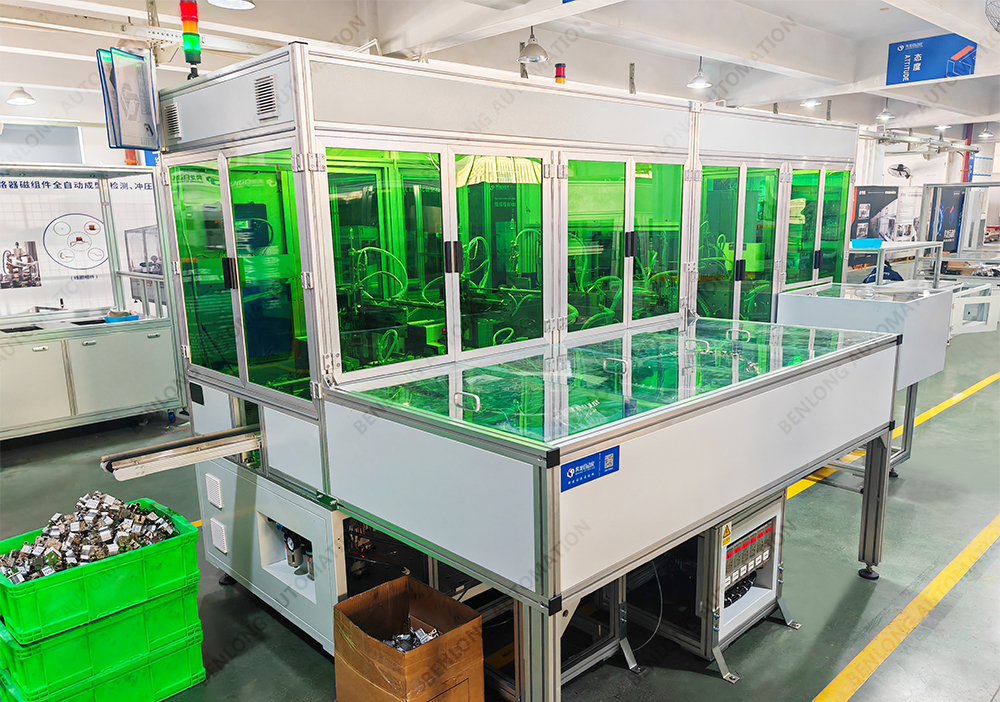

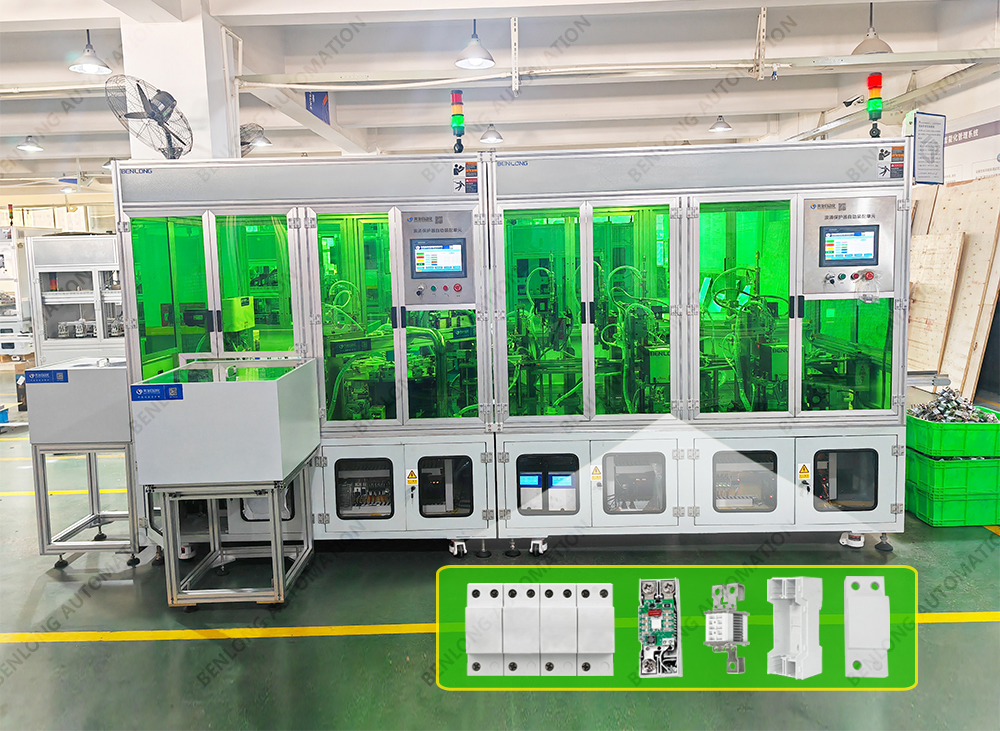

SPD Automatic assembly equipment for surge protectors Ⅱ

Short Description:

Automatic assembly: the production line can realize the automatic assembly of surge protectors, including the assembly and testing of parts.

Flexible production: The production line has flexible production capacity and can quickly switch between different product models to meet diversified production needs.

Testing function: the production line is capable of automated testing of surge protectors to ensure that the quality and performance of the products meet the standard requirements.

High efficiency: Through automated assembly and flexible production capacity, the line can improve production efficiency and reduce labor costs.

Data tracking: With data recording and tracking functions, the production process can be recorded and analyzed, which is helpful for quality management and production optimization.

Send email to us

Photograph

Parameters

Video

Previous: Energy meter external low voltage circuit breaker automatic assembly equipment

Next: RCBO Automatic assembly equipment for residual current circuit breaker stop components

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility: 2-pole, 3-pole, 4-pole or customized according to customer requirements for a series of products.
3. Equipment production rhythm: either 5 seconds per unit or 10 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Switching between different shell products requires manual replacement of molds or fixtures.
5. Assembly methods: manual assembly and automatic assembly can be freely selected.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
