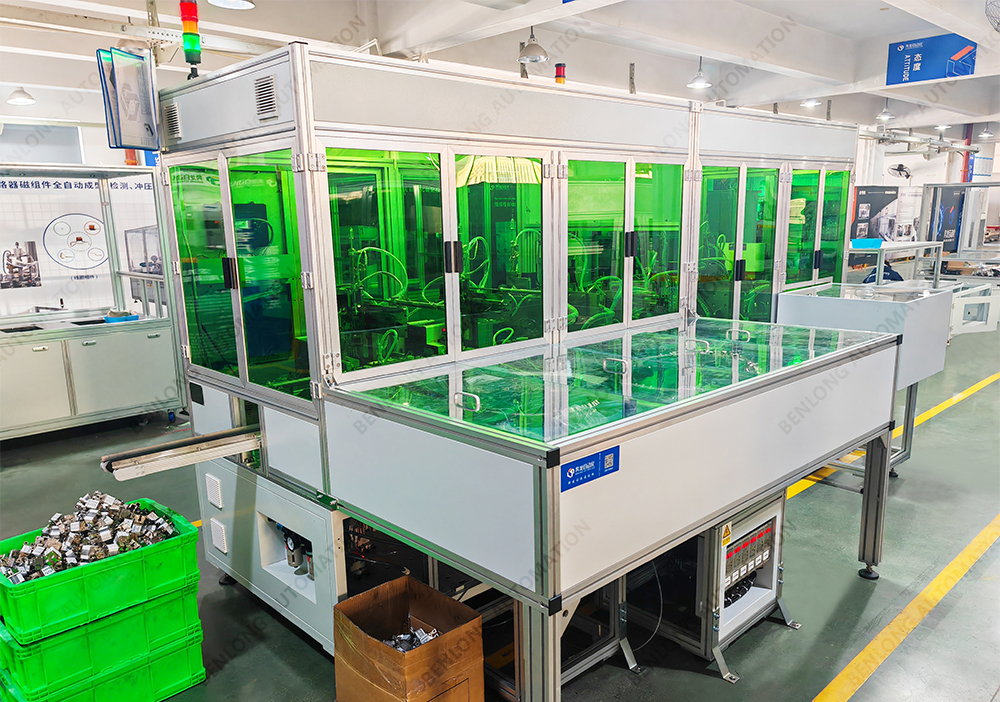

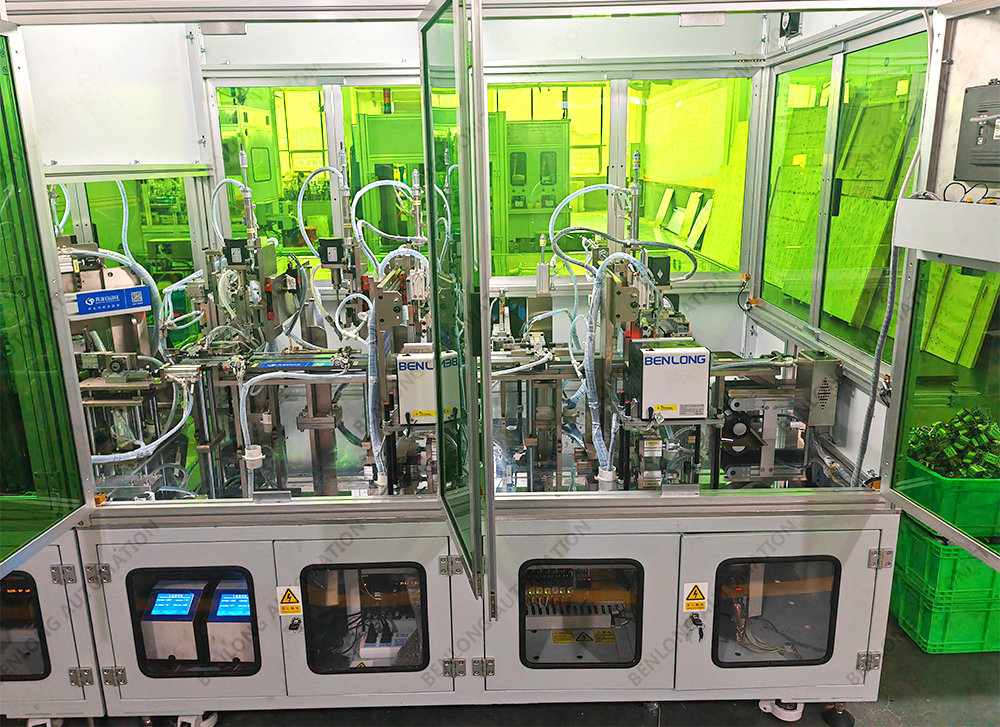

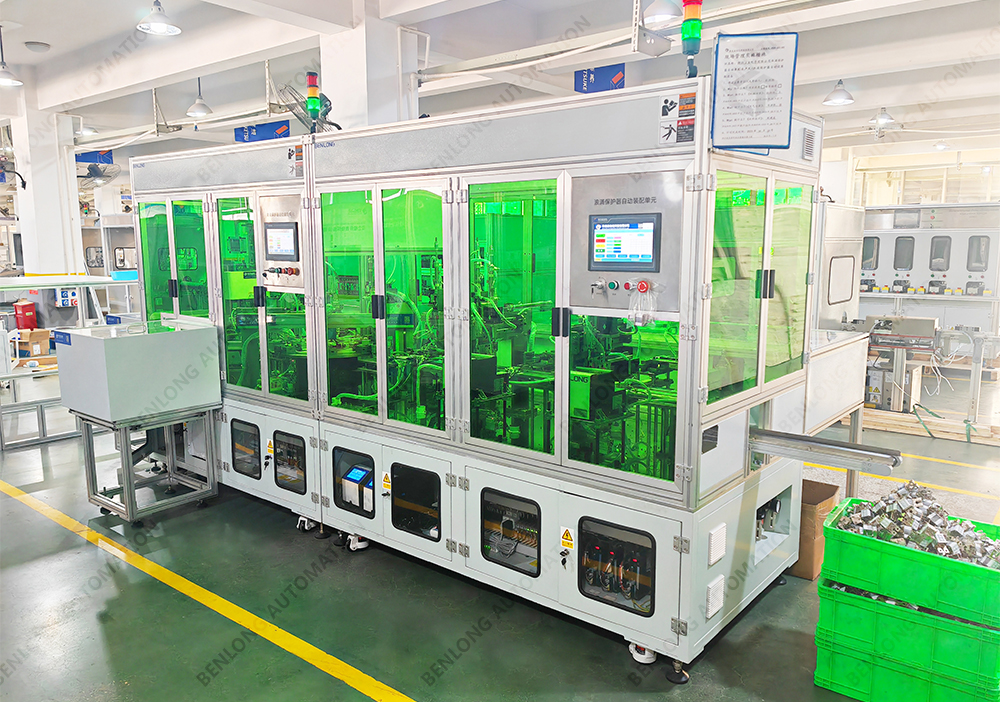

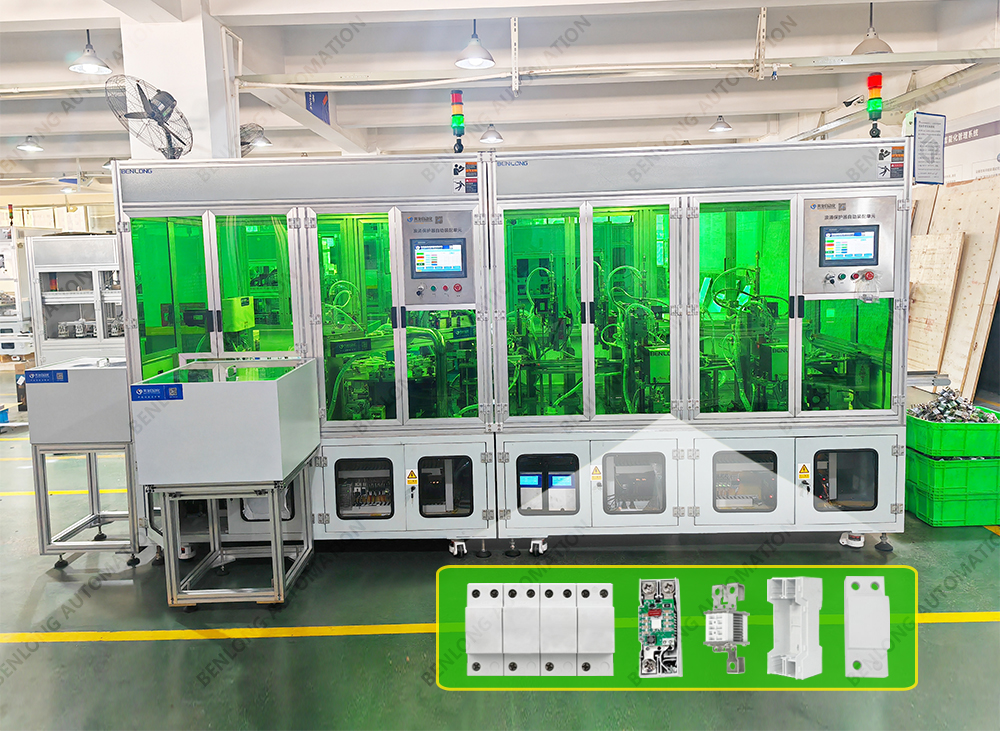

SPD Automatic assembly and testing flexible production line for surge protectors Ⅱ

Short Description:

Automated assembly: The ability to automate the surge protector assembly process reduces manual labor and increases productivity.
Inspection function: the assembly line may include inspection devices for checking the individual components of the surge protector and the assembly process to ensure product quality and performance.
Flexible production: The production line has the ability to be flexible, allowing it to quickly adapt to the production needs of different models or specifications of surge protectors, increasing the flexibility of the line.
High efficiency: Through automation and flexible production methods, it can improve the efficiency and capacity of the production line.
Quality control: the assembly and testing flexible production line can carry out real-time quality control and data collection to ensure that the quality of surge protectors meets the standard requirements.


See More>>

Photograph

Parameters

Video

1

2

3

5


  • Previous:
  • Next:

  • 1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
    2. Device compatibility: 2-pole, 3-pole, 4-pole or customized according to customer requirements for a series of products.
    3. Equipment production rhythm: either 5 seconds per unit or 10 seconds per unit can be optionally matched.
    4. The same shelf product can be switched between different poles with just one click or by scanning the code; Switching between different shell products requires manual replacement of molds or fixtures.
    5. Assembly methods: manual assembly and automatic assembly can be freely selected.
    6. The equipment fixtures can be customized according to the product model.
    7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
    8. There are two operating systems available: Chinese and English.
    9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
    10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
    11. Having independent independent intellectual property rights.
