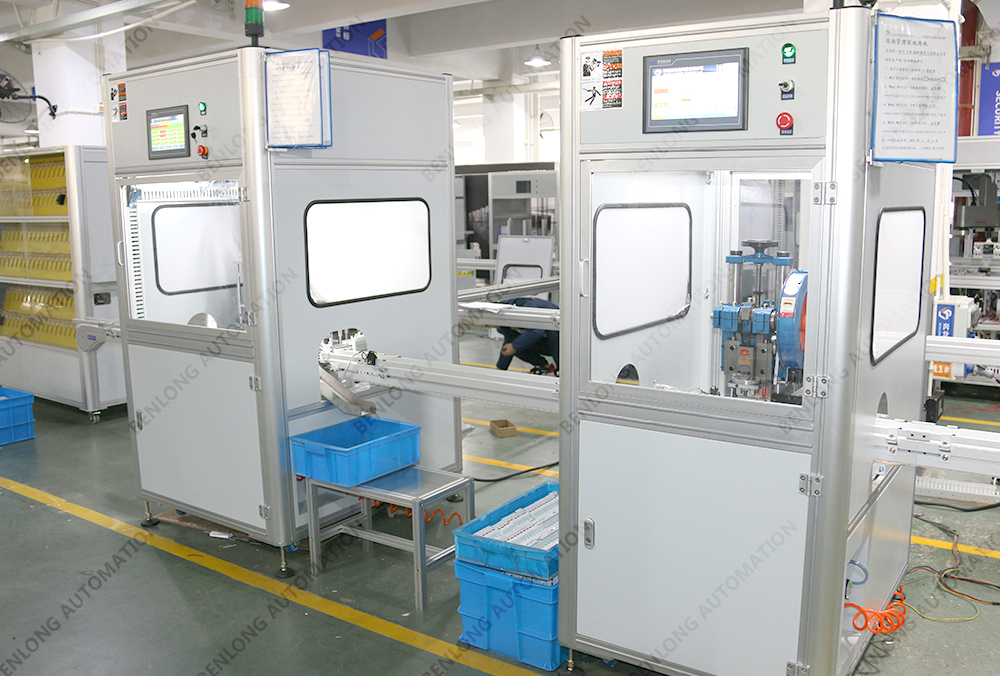

RT18 Fuse Automatic Riveting Equipment

Short Description:

Automated riveting: this equipment can realize automated riveting process without manual operation and improve production efficiency.
Lead alignment: The machine is equipped with a lead alignment device, which ensures that the leads are correctly aligned and put into the riveting position.
Riveting Control: The equipment is equipped with riveting parameter control function, which can adjust the riveting pressure and time and other parameters according to different riveting requirements to ensure the quality and reliability of riveting.
System monitoring: The equipment can monitor the pressure, displacement and other relevant parameters in the riveting process in real time, so as to adjust and judge the riveting status in time.
Fault Diagnosis: The equipment is equipped with fault diagnosis function, which can detect and diagnose equipment faults and provide corresponding solutions.

Send email to us

Photograph

Parameters

Video

Previous: Signal light automatic assembly equipment

Next: RT18 Fuse manual assembly bench

1, equipment input voltage: 220V/380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible with the number of poles: 1P, 2P, 3P, 4P, 5P
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of the device.
4, the same shell frame products, different poles can be switched by one key or scanning code can be switched; different shell frame products need to manually replace the mold or fixture.
5、Rivet feeding mode is vibrating plate feeding; noise ≤ 80db; rivet quantity and mold can be customized according to product model.
6、The speed and vacuum parameter of the nail splitting mechanism can be set arbitrarily.

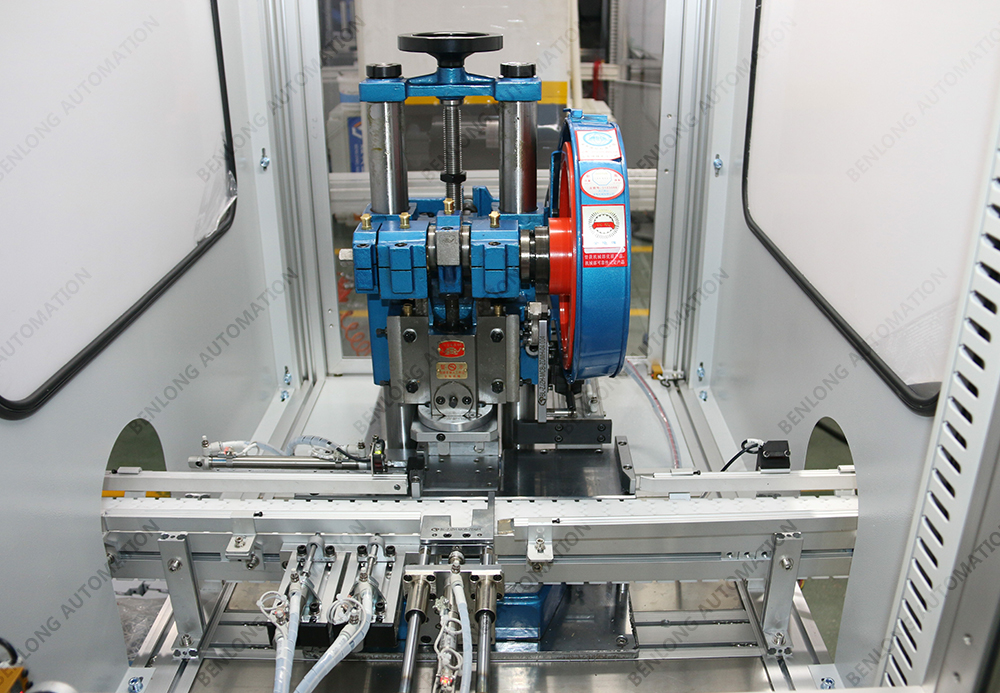

7、Rivet pressure in the form of cam riveting and servo riveting two optional.
8, riveting speed parameters can be set arbitrarily.
9、Equipment with fault alarm, pressure monitoring and other alarm display function.
10, Chinese and English version of the two operating systems.
11、All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
12、Equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
13、It has independent independent intellectual property rights.
