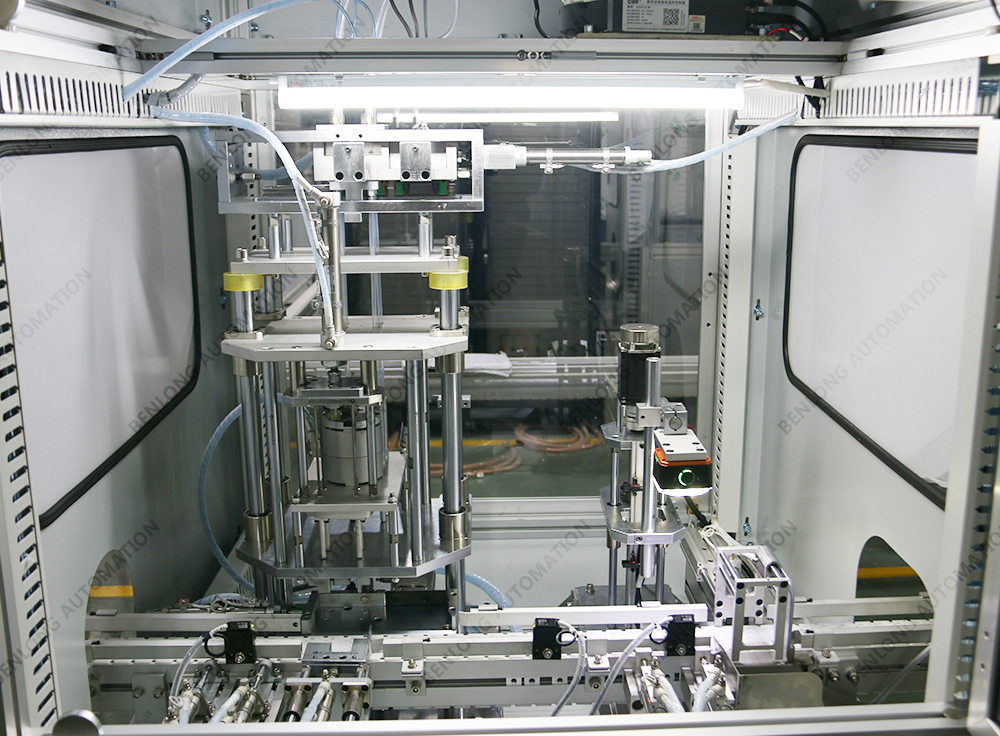

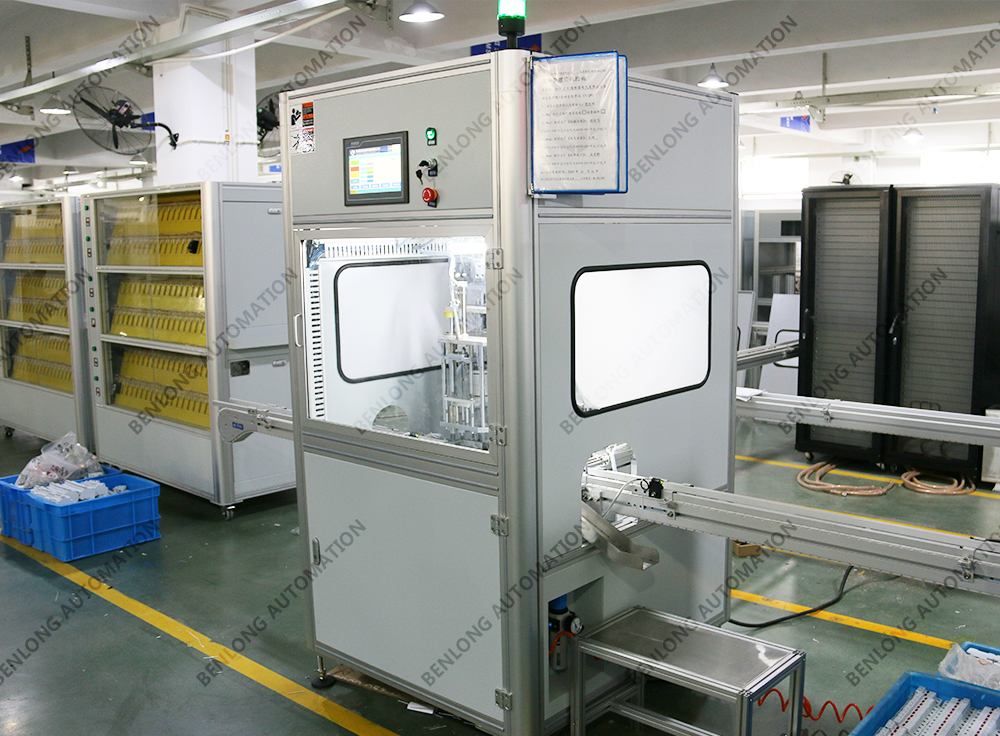

RT18 Fuse Automatic Stapling Equipment

Short Description:

Automated Nail Threading: this equipment can realize the automated nail threading process without manual operation and improve the production efficiency.
Lead Alignment: The machine is equipped with a lead alignment device, which ensures that the leads are correctly aligned and in the pinning position.
Stapling Control: The machine is equipped with a stapling parameter control function, which can adjust the stapling force and speed according to different stapling requirements to ensure the quality and reliability of the stapling.
System monitoring: The device can monitor the strength, displacement and other relevant parameters during the piercing process in real time, so as to adjust and judge the piercing status in time.
Fault Diagnosis: The equipment has fault diagnosis function, which can detect and diagnose equipment faults and provide corresponding solutions.

Send email to us

Photograph

Parameters

Video

Previous: RT18 fuse ultrasonic automatic welding equipment

Next: Relay Contacts Automatic Inspection and Plate Setting Equipment

1. Equipment input voltage: 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P, 2P, 3P, 4P, 5P
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, and 3 seconds per pole; Five different specifications of equipment.
4. The same shelf product can be switched between different poles with one click or scan code switching; Different shell frame products require manual replacement of molds or fixtures.

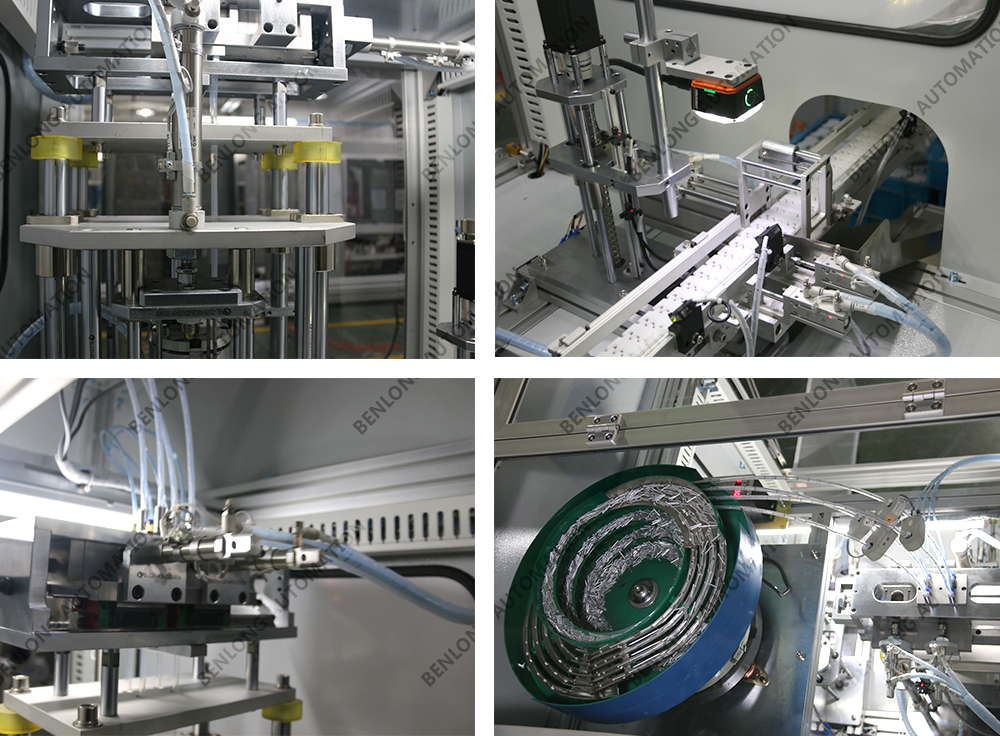

5. The rivet feeding method is vibration disc feeding; Noise ≤ 80 decibels; The number of rivets and molds can be customized according to the product model.
6. The speed and vacuum parameters of the nail splitting mechanism can be set arbitrarily.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
