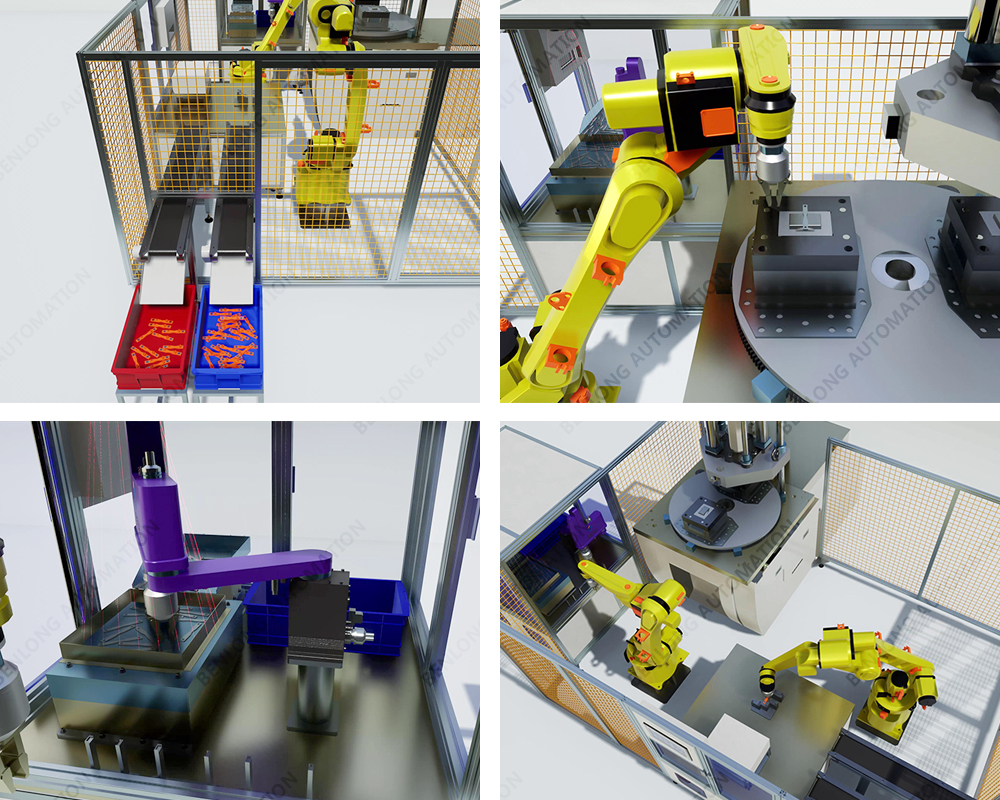

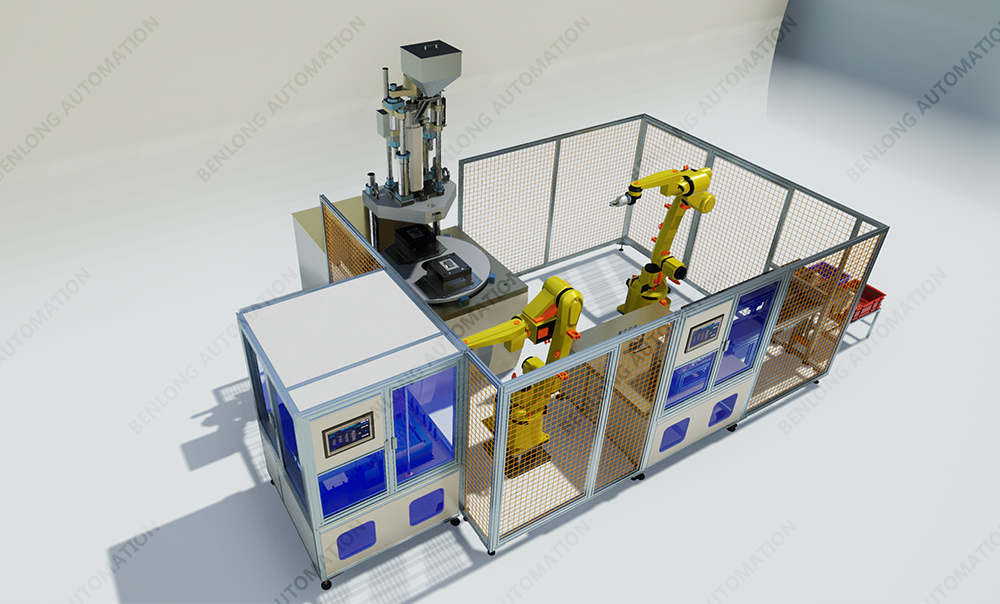

Robot electrode automatic loading and unloading

Short Description:

Identification and positioning: Robots need to be able to accurately identify the position of electrodes and determine their correct installation position. This can be achieved through visual systems, laser sensors, or other perceptual technologies.
Grasping and Placement: Robots need to have grasping tools such as fixtures, robotic arms, etc. to safely and accurately grasp electrodes. The robot selects an appropriate gripping method based on the characteristics and specifications of the electrode, and places the electrode in the correct position.
Assembly and replacement: The robot can assemble electrodes with other components as needed. This may involve connecting the electrodes to the circuit board or pairing the electrodes with other components. When the electrode needs to be replaced, the robot can safely remove the old electrode and assemble the new electrode in the correct position.
Quality control: Robots can monitor and control the assembly or replacement process in real-time through visual systems or other sensing technologies. It can detect the position, alignment accuracy, connection status, etc. of electrodes to ensure the quality and accuracy of assembly.
Automation and integration: The robot’s electrode automatic loading and unloading function can be integrated with other automation equipment and systems to achieve automation of the entire production line. This can include communication and coordination with conveyor belts, control systems, databases, etc.
The robot’s automatic electrode loading and unloading function can improve the efficiency and accuracy of circuit board assembly, and reduce the need for manual operations. It can improve the production capacity of the production line, improve product quality, and reduce losses caused by human error.

Send email to us

Photograph

Parameters

Video

Previous: Handling robot palletizing

Next: Automatic loading and unloading of robot inserts

1. Equipment input voltage: 220V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can switch between different poles with one click or scan code.
5. Packaging method: Manual packaging and automatic packaging can be selected and matched at will.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights
