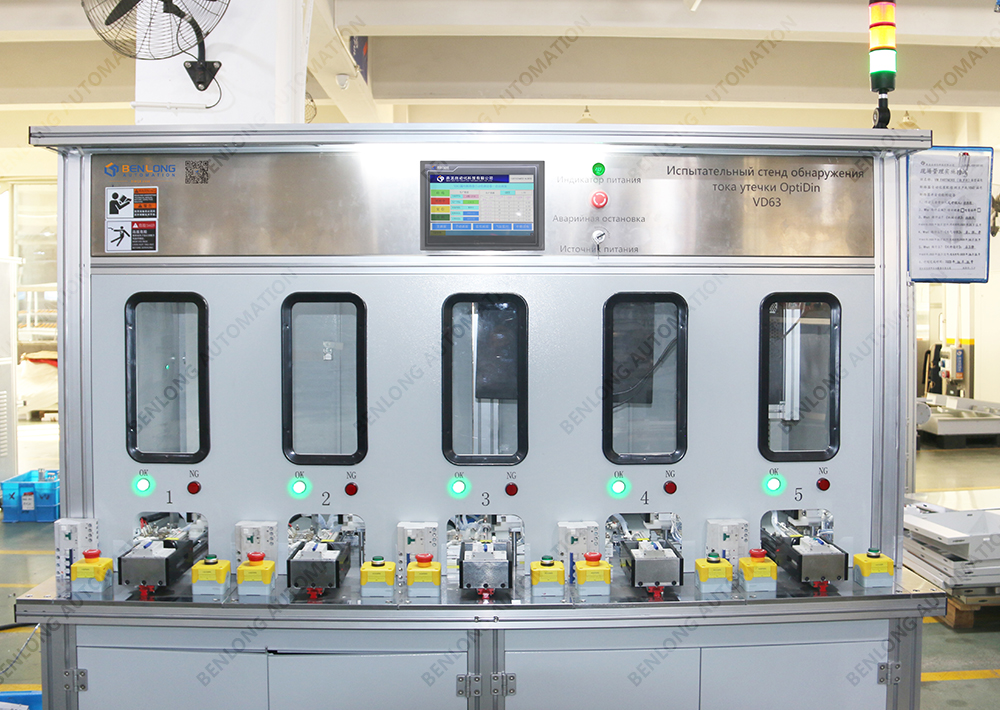

RCBO Leakage Circuit Breaker Testing Equipment

Short Description:

Leakage protection: RCBO can detect leakage in the circuit, once leakage occurs in the circuit, the device will quickly cut off the power supply to protect personal safety and prevent fire.

Overcurrent Protection: At the same time, the RCBO can also detect overcurrent in the circuit, once the overcurrent occurs in the circuit, the device will also quickly cut off the power supply, in order to prevent the damage or danger caused by the circuit overload or short circuit.

Comprehensive protection: The RCBO’s comprehensive protection function makes it possible to protect both personal safety and circuit equipment, thus improving the safety and reliability of electrical equipment.

Sensitivity and Reliability: RCBO earth leakage circuit breaker detection equipment usually has high sensitivity and reliability, which can quickly and accurately detect abnormalities in the circuit and promptly cut off the power supply to prevent accidents.

Send email to us

Photograph

Parameters

Video

Previous: RCBO Automatic Riveting Inspection Equipment

Next: Solid State Relay Automated Production Line

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;

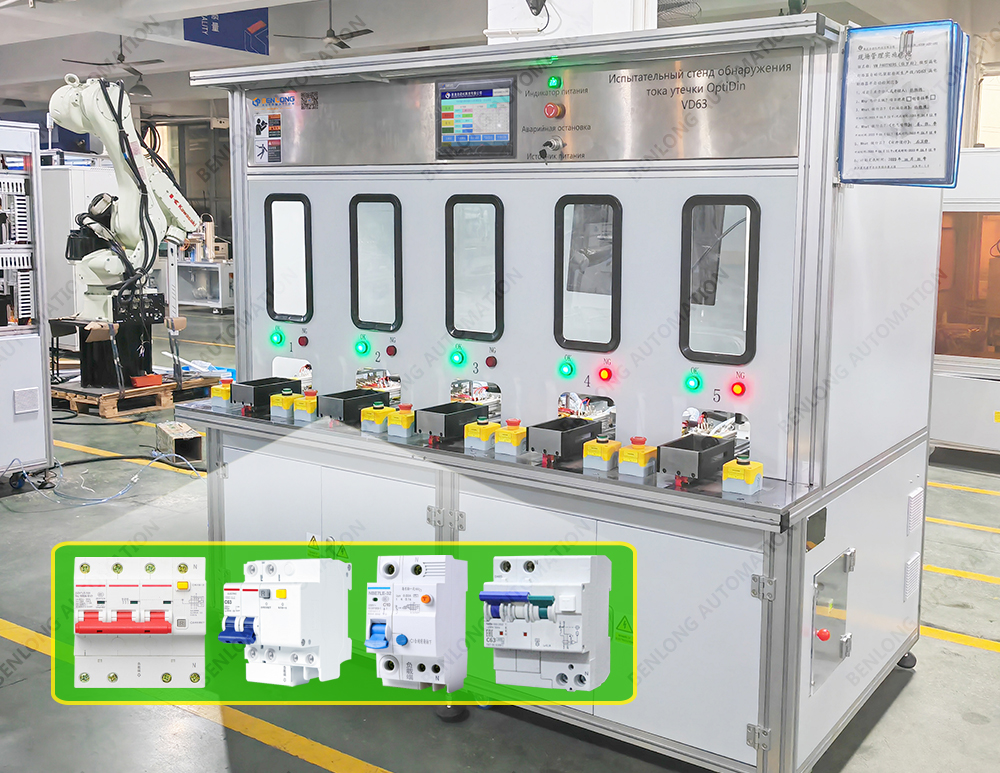

2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, 3 seconds per pole; Five different specifications of equipment.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. Leakage output range: 0-5000V; The leakage current is available in different levels of 10mA, 20mA, 100mA, and 200mA.
6. Detection of high-voltage insulation time: The parameters can be set arbitrarily from 1 to 999S.
7. Detection frequency: 1-99 times. The parameter can be set arbitrarily.

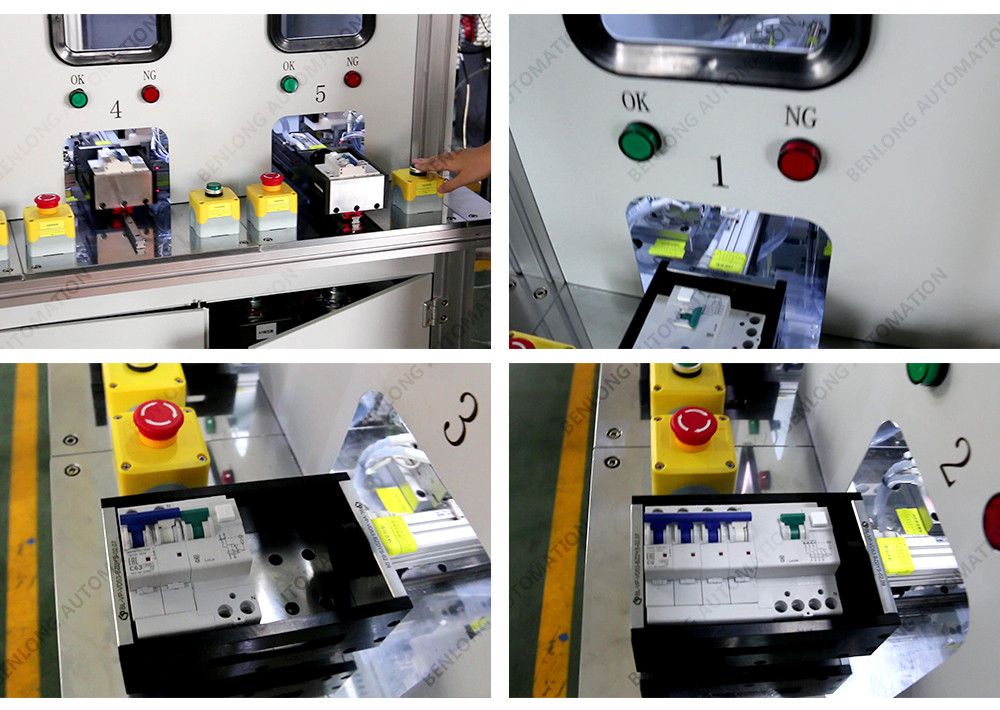

8. High voltage detection position: When the product is in the closed state, detect the voltage resistance between phases; When the product is in the closed state, check the voltage resistance between the phase and the bottom plate; When the product is in the closed state, check the voltage resistance between the phase and the handle; When the product is in the open state, check the voltage resistance between the incoming and outgoing lines.
9. The product can be tested horizontally or vertically as an optional option.
10. The equipment has alarm display functions such as fault alarm and pressure monitoring.

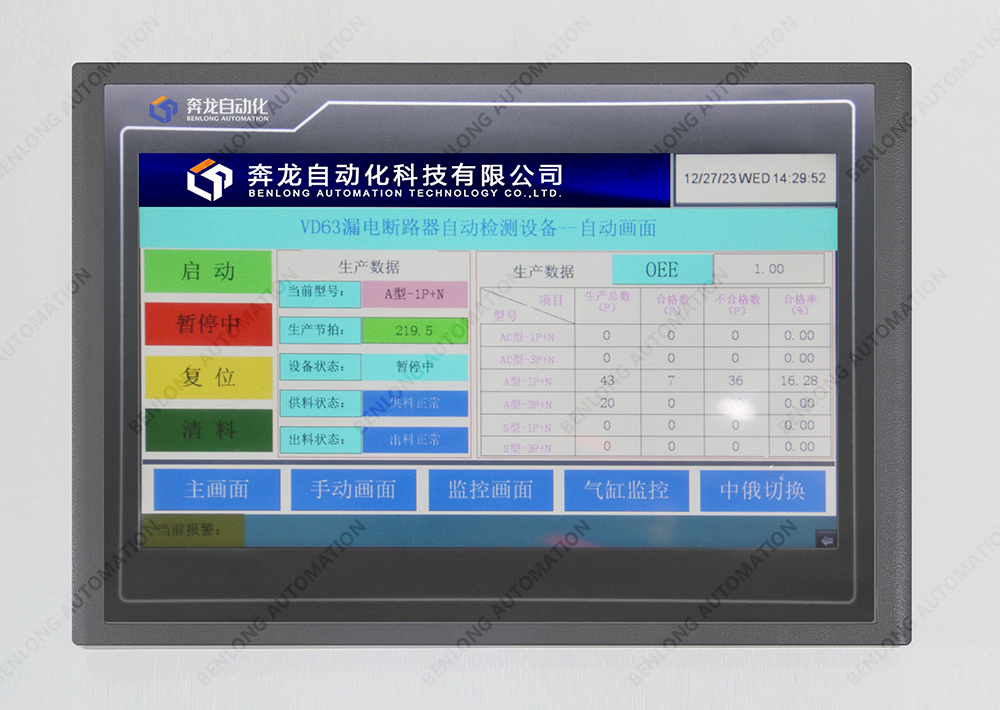

11. There are two operating systems available: Chinese and English.
12. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
13. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
14. Having independent independent intellectual property rights.
