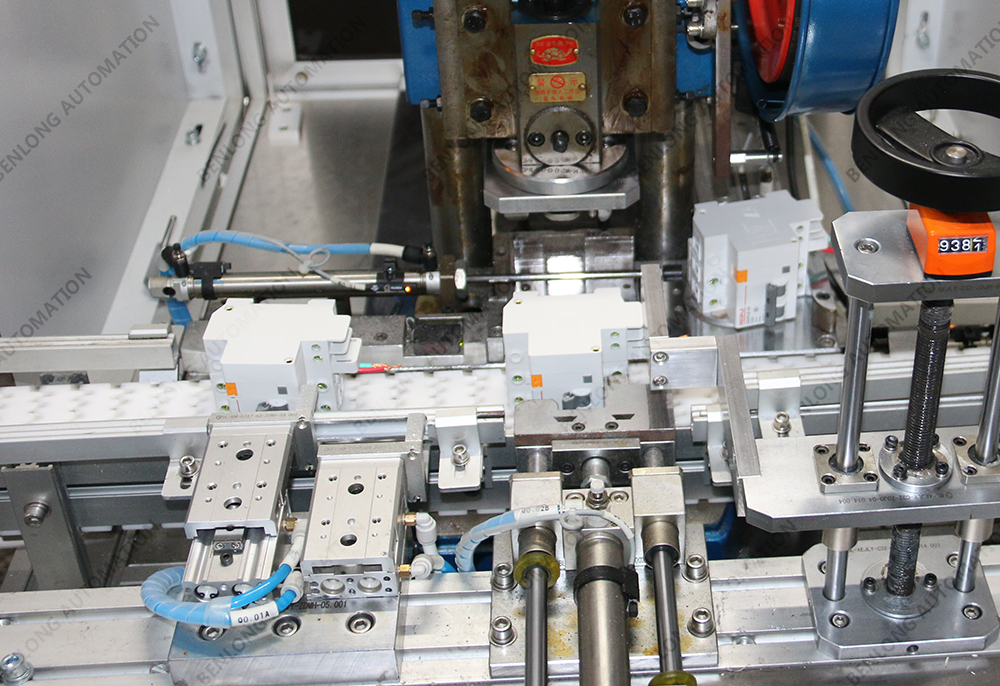

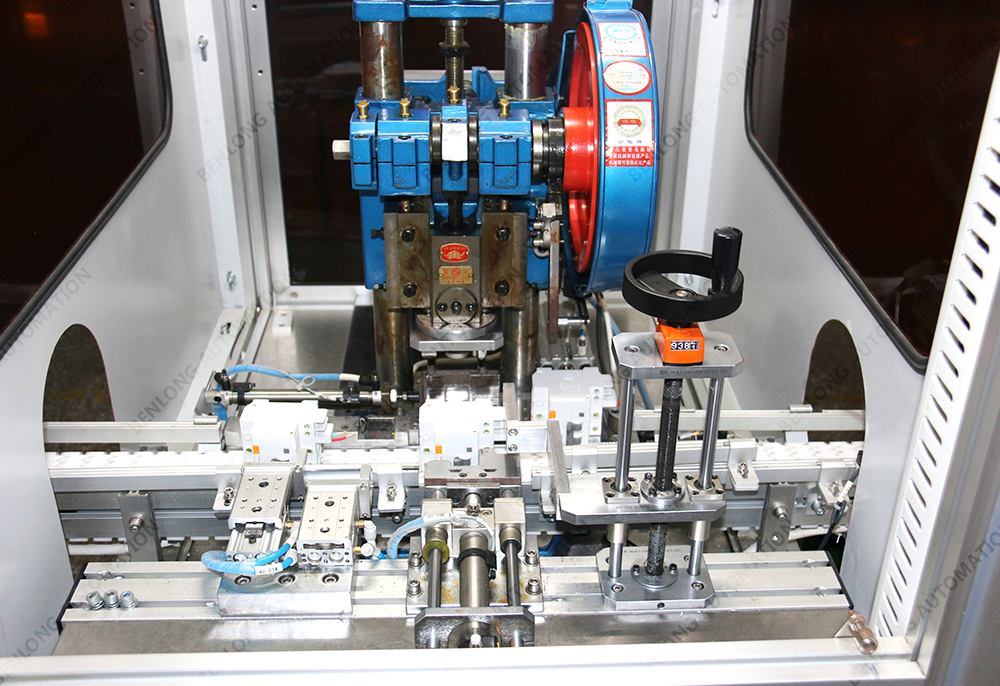

RCBO Automatic Riveting Inspection Equipment

Short Description:

Automated riveting: the equipment can automatically identify and rivet the connecting parts on the earth leakage circuit breaker, improve production efficiency and reduce labor costs.
Precise control: the equipment can accurately control the pressure, time and other parameters in the riveting process to ensure the safety and firmness of the connected parts.
Automatic inspection: the equipment is usually equipped with sensors and inspection systems, which can detect the riveting quality in time to ensure that the product meets the standards.
Data Recording and Traceability: The equipment is usually able to record the data of each riveting operation, including pressure, time and other information, to facilitate quality traceability and management.
Safety protection: the equipment usually has a safety protection function, can stop the operation in time when abnormalities are found, to protect the safety of the operator and the equipment.

Send email to us

Photograph

Parameters

Video

Previous: RCBO Automatic Flip-Through Inspection Equipment

Next: RCBO Leakage Circuit Breaker Testing Equipment

1. Equipment input voltage 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 5P
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, 3 seconds per pole; Five different specifications of equipment.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. There are two optional riveting forms: cam riveting and servo riveting.
6. The riveting speed parameters can be set arbitrarily; The number of rivets and molds can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent and independent intellectual property rights
