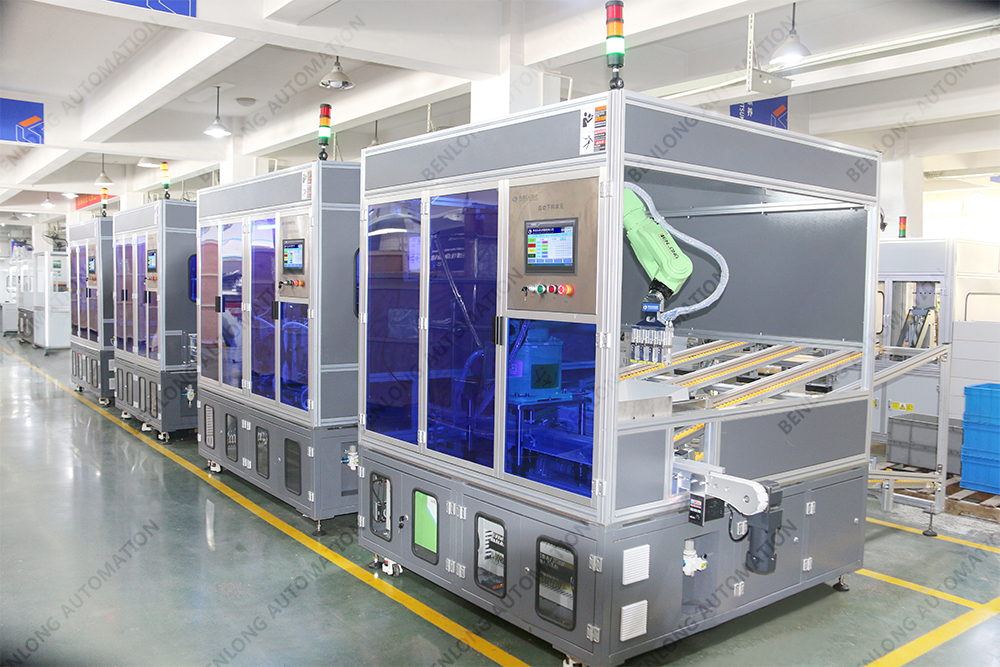

Photovoltaic DC disconnecting switch automatic loading equipment

Short Description:

Loading function: The equipment is able to automatically remove the PV DC disconnectors from the storage area or conveyor belt and place them in the processing or assembly area.

Automated operation: The equipment has an automated operation function that can accurately execute the loading action according to the preset parameters and programs, which improves the productivity and reduces the errors in manual operation.

Safety Protection: The equipment is equipped with safety sensors and protection devices to monitor and prevent accidents, ensuring the safety of operators and equipment.

Precise positioning: The equipment is equipped with a precise positioning system to accurately position the PV DC disconnectors to ensure that the subsequent process steps are carried out accurately.

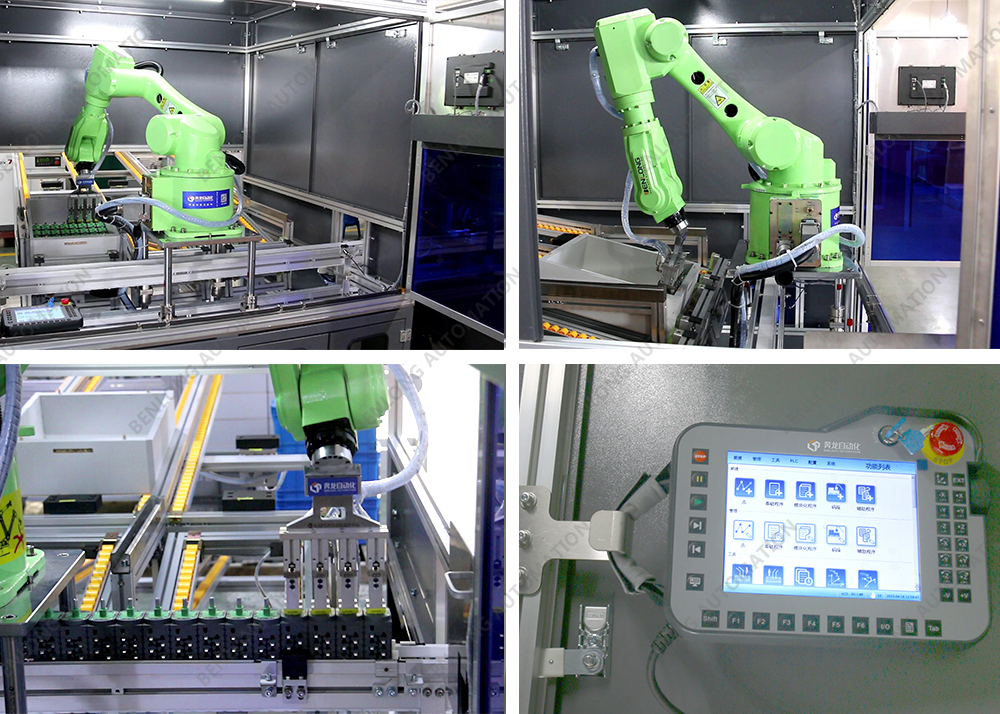

Transportation control: The equipment is equipped with conveyor belts, robotic arms or other transportation devices to control the transportation and position of the PV DC disconnectors to ensure a smooth product flow.

System integration: The equipment can be integrated with other automation equipment or assembly lines to achieve automated control and coordination of the overall production process.

Send email to us

Photograph

Parameters

Video

Previous: Automatic laser marking equipment for photovoltaic DC disconnect switches

Next: Photovoltaic DC disconnecting switch automatic discharging equipment

1, equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible specifications: the same modulus series 2P, 3P, 4P, 6P, 8P, 10P a total of 6 products switching production.
3, equipment production beat: 5 seconds / unit.
4, the same shell frame products, different poles can be switched with one key or code switching; switching different shell frame products need to manually replace the mold or fixture.
5、Assembly mode: manual assembly, automatic assembly can be optional.
6、Equipment fixture can be customized according to the product model.
7、Equipment with fault alarm, pressure monitoring and other alarm display function.
8, Chinese and English version of the two operating systems.
All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10、Equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
11、It has independent independent intellectual property rights.
