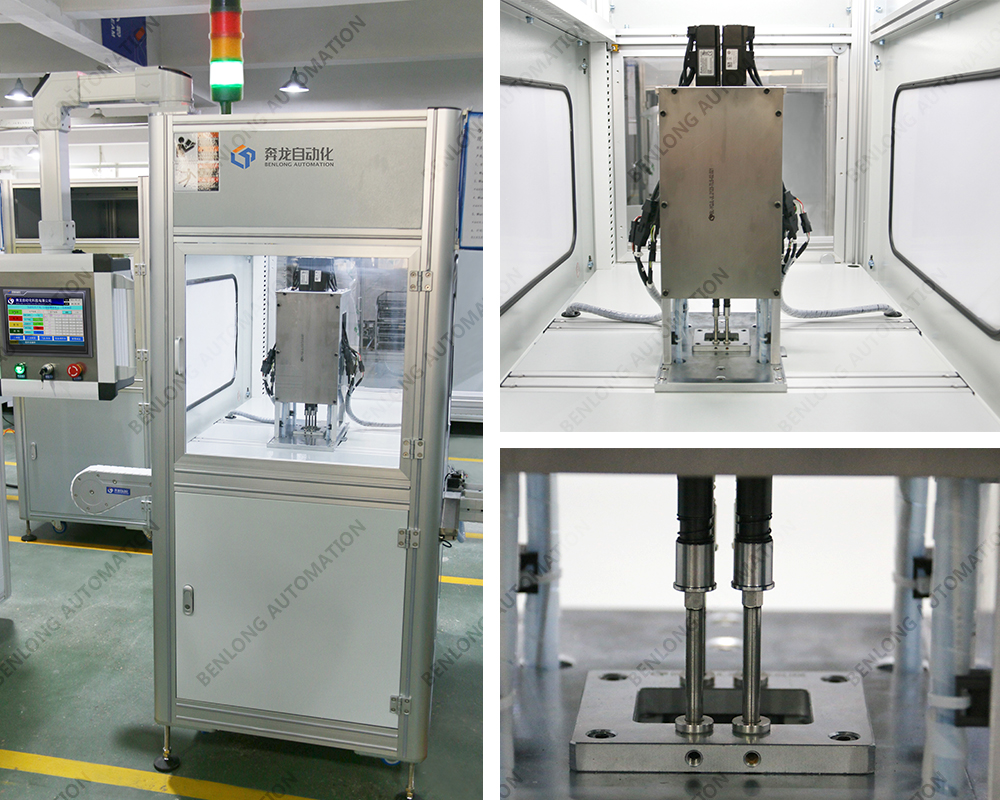

NT50 Circuit Breaker Automatic Screwing Equipment

Short Description:

Automatic tightening: This equipment automatically tightens screws in circuit breakers by using devices such as power tools or robotic arms. It can ensure that the screws are correctly tightened to the required degree according to the preset tightening torque or angle, avoiding over-tightening or over-loosening of the screws.

Positioning and alignment: The equipment can accurately position and align the screw holes in the circuit breaker to ensure that the screws are accurately inserted into the holes. This can be accomplished through a visual recognition system or mechanical sensors.

Tightening force control: The device can monitor and control the tightening torque or angle to ensure that the screws are properly tightened. It can adjust the range and accuracy of the tightening force according to different breaker models or needs.

Fast operation: The unit has a high-speed operation capability that allows the task of tightening screws to be completed quickly. This helps increase productivity and save time.

Automation control: The equipment can be automated to collaborate and control with other equipment in the production line. It can be linked with equipment such as robots, conveyor systems and data acquisition systems to automate production in the production line.

Quality Inspection: The equipment can detect the tightening torque or angle of the screws to determine whether the screws have been correctly tightened. If the tightening force does not meet the requirements, the equipment can issue an alarm or make adjustments to ensure product quality.

Send email to us

Photograph

Parameters

Video

Previous: NT50 Circuit Breaker Automatic Nail Threading Equipment

Next: NT50 Circuit Breaker AutomatedProduction Line

1, equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3, equipment production beat: 28 seconds / unit, 40 seconds / unit of two optional.
4, the same shell frame products, different poles can be a key to switch or sweep code to switch; switching between different shell frame products need to manually replace the mold or fixture.
5、Equipment fixture can be customized according to the product model.
6、Torque judgment value can be set arbitrarily.
7, assembly screw specifications: M6 * 16 or M8 * 16 can be selected or customized according to customer demand.
8、Equipment with fault alarm, pressure monitoring and other alarm display function.
9, Chinese and English version of the two operating systems.
All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
11. The equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
12、It has independent independent intellectual property rights.
