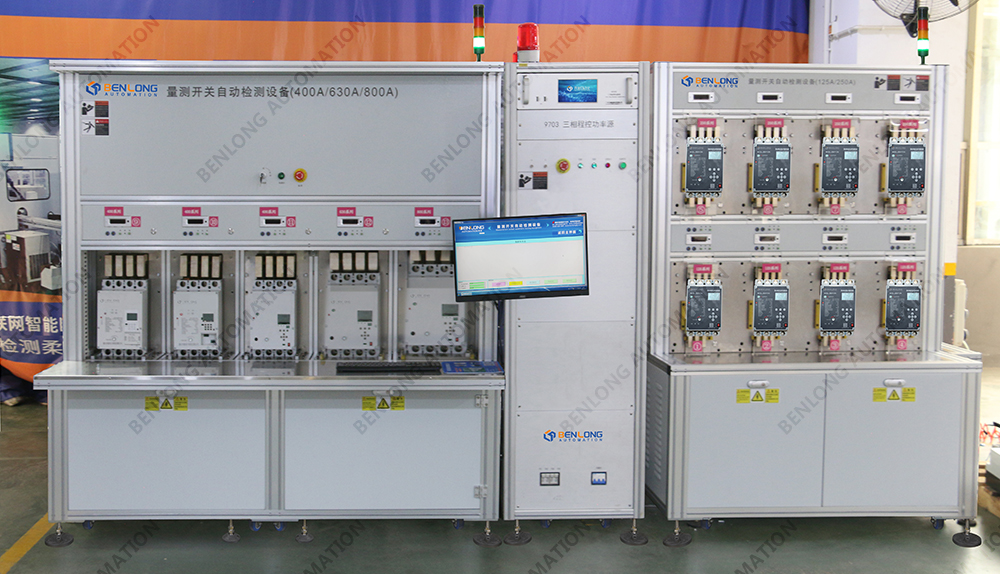

Measurement switch automatic testing equipment

Short Description:

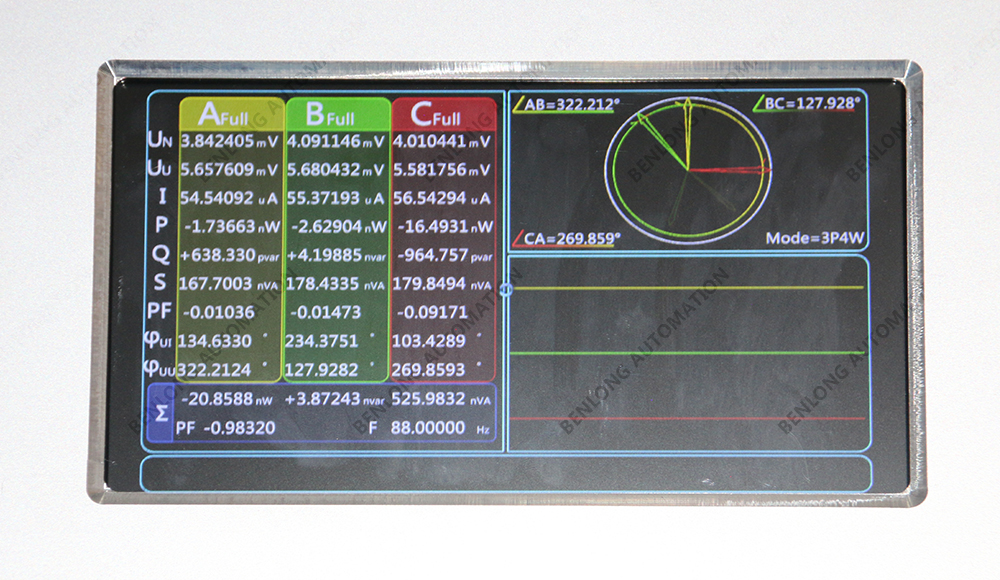

Electrical parameter testing: The device can measure the current, voltage, power factor and other electrical parameters of the switch to ensure that the switch is within the normal operating range.

Function test: The device can simulate switch operation under various working conditions, such as switch action, switching time, tripping current, etc., to verify whether the switch can work normally.

Health Status Detection: The device can detect the health status of the switch, including the wear and tear of the contactor, arc generation, etc., in order to judge whether the switch needs to be repaired or replaced.

Fault Detection: The device can detect the fault condition of the switch, such as short circuit, broken circuit, poor contact, etc., in order to help users find and solve the problem in time.

Data recording and analysis: the device can record the data during the switch detection process and analyse the data to understand the working condition and trend of the switch and provide the user with reference and decision-making basis.

Send email to us

Photograph

Parameters

Video

Previous: MCB miniature circuit breaker integrated automated production line

Next: IoT intelligent miniature circuit breaker manual module assembly assembly equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Switching between different shell products requires manual replacement of molds or fixtures.
5. Assembly methods: manual assembly and automatic assembly can be freely selected.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.

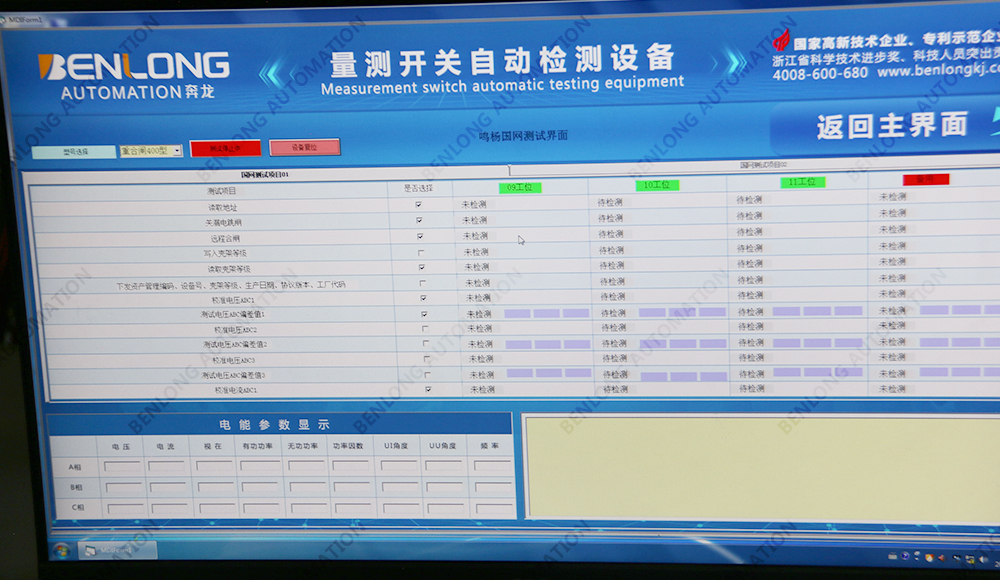

8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
