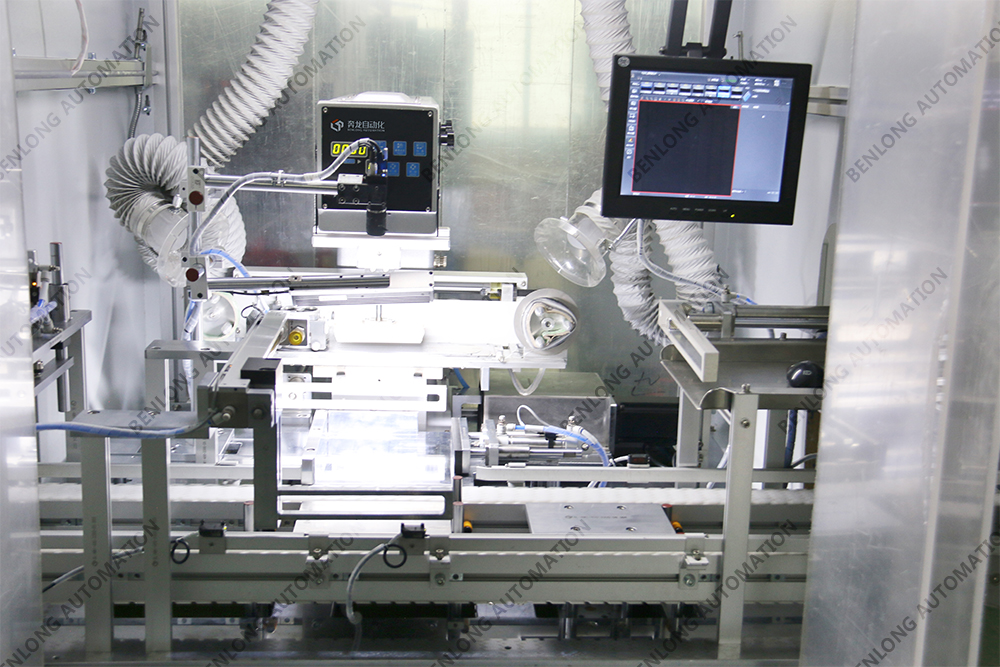

MCCB visual automatic transfer printing detection equipment

Short Description:

Quality control equipment in the production process of MCCB. Its main functions include:
Automatic detection: The device can automatically detect the printing pad printing situation on MCCB products without manual intervention.
Visual inspection: The device is equipped with a high-resolution camera and image processing software, which can detect the transfer printing situation on the MCCB through visual technology.
Detection accuracy: The equipment can accurately detect the transfer printing position, color, font and other information on MCCB, ensuring the quality and consistency of the product.
Real time feedback: The equipment can provide real-time feedback on the testing results during the testing process, making it convenient for operators to adjust the production process in a timely manner.
Data recording: The equipment can record the results of each inspection and related data, facilitating quality control and production analysis.

Send email to us

Photograph

Parameters

Video

Previous: Visual silver dot automatic detection equipment

Next: MCCB visual automatic laser transfer printing detection equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, and 3 seconds per pole; Five different specifications of equipment.
4. The same shelf product can be switched between different poles with one click or scan code switching; Different shell frame products require manual replacement of molds or fixtures.
5. The detection method for defective products is CCD visual inspection.

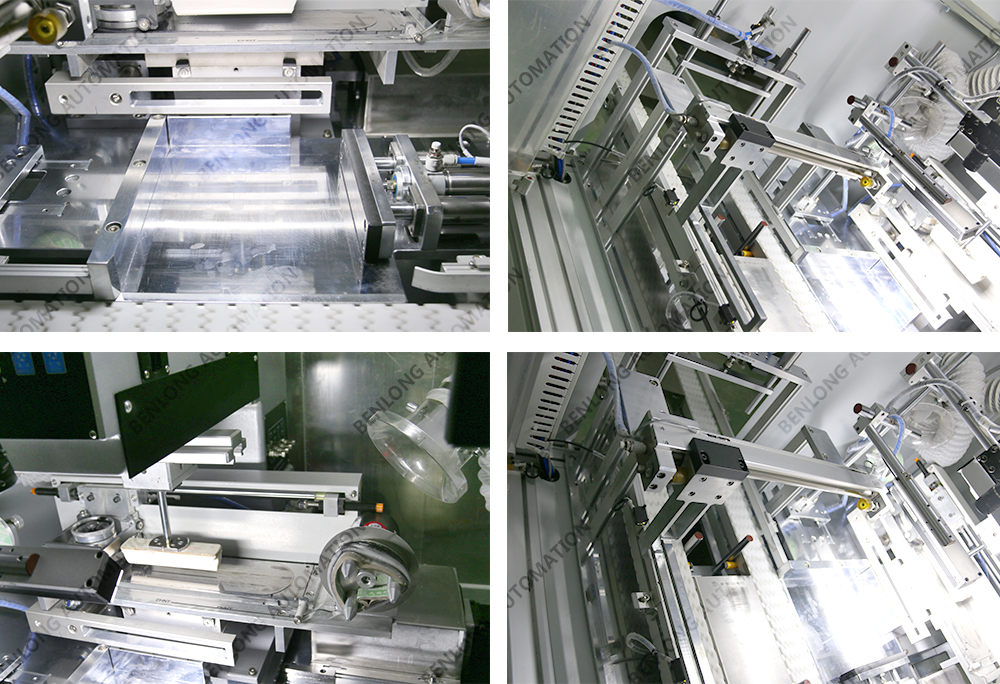

6. The transfer printing machine is an environmentally friendly transfer printing machine that comes with a cleaning system and X, Y, and Z adjustment mechanisms.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
