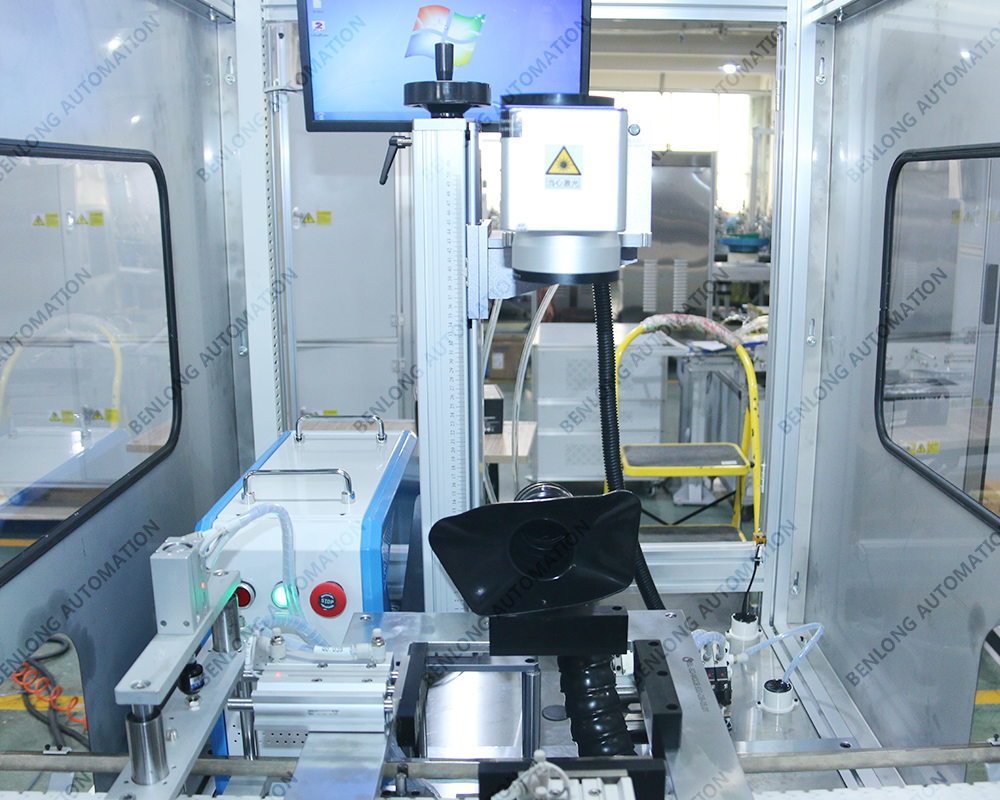

MCCB moulded case circuit breaker automatic laser marking equipment

Short Description:

Automatic marking: the equipment can automatically carry out laser marking, marking MCCB moulded case circuit breakers according to the preset marking information, improving marking efficiency and consistency.
High-precision marking: laser marking technology is characterised by high precision and high clarity, which is able to carry out fine marking on the surface of MCCB moulded case circuit breakers and ensure that the marking is clearly visible.
Diversified marking: the equipment supports a variety of marking information settings, including text, graphics, barcodes, etc., to meet different marking needs.
Fast operation: the equipment is easy to operate, can quickly mark the MCCB moulded case circuit breaker, improve production efficiency.
Energy saving and environmental protection: laser marking technology does not require the use of ink and other marking materials, saving resources, and at the same time does not produce waste water, exhaust gas and other pollutants, in line with environmental requirements.
High reliability: the equipment has a stable laser output and accurate positioning system to ensure the quality of marking and equipment stability.
Overall, MCCB moulded case circuit breaker automatic laser marking equipment has the characteristics of automation, high precision, diversification, fast operation, energy saving and environmental protection and high reliability, which can meet the various needs of marking MCCB moulded case circuit breaker.

Send email to us

Photograph

Parameters

Video

Previous: MCCB Automatic Mechanical Characteristic Compression Test Equipment

Next: MCB automatic instantaneous and withstand voltage test equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Equipment compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Switching between different shell products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. The high-voltage withstand time of 1-99 seconds can be arbitrarily set as the judgment value; The output voltage of 0-5000V can be set arbitrarily.
7. High voltage resistance detection position: When the product is in the open state, it detects the high voltage resistance between the incoming and outgoing lines; Detect the high voltage resistance between phases when the product is in the closed state; Detect the high voltage resistance between the phase and the bottom plate when the product is in the closed state; The product detects the high voltage resistance between the phase and the handle when in the closed state.

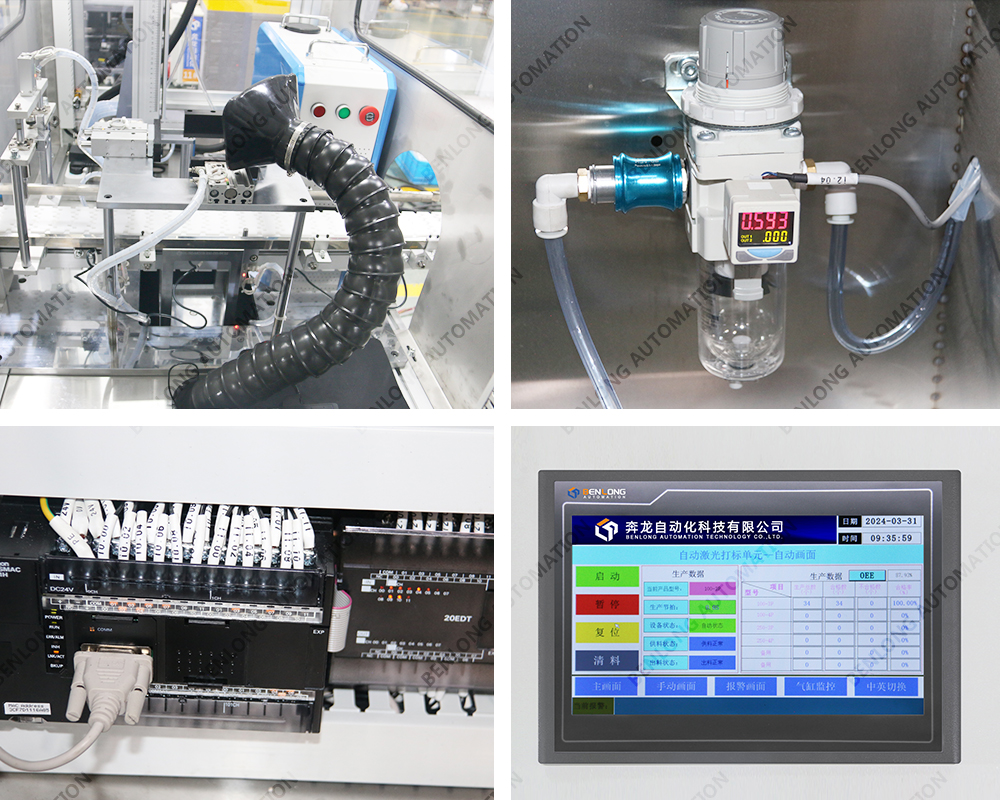

8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
9. There are two operating systems available: Chinese and English.
10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
11. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
12. Having independent and independent intellectual property rights
