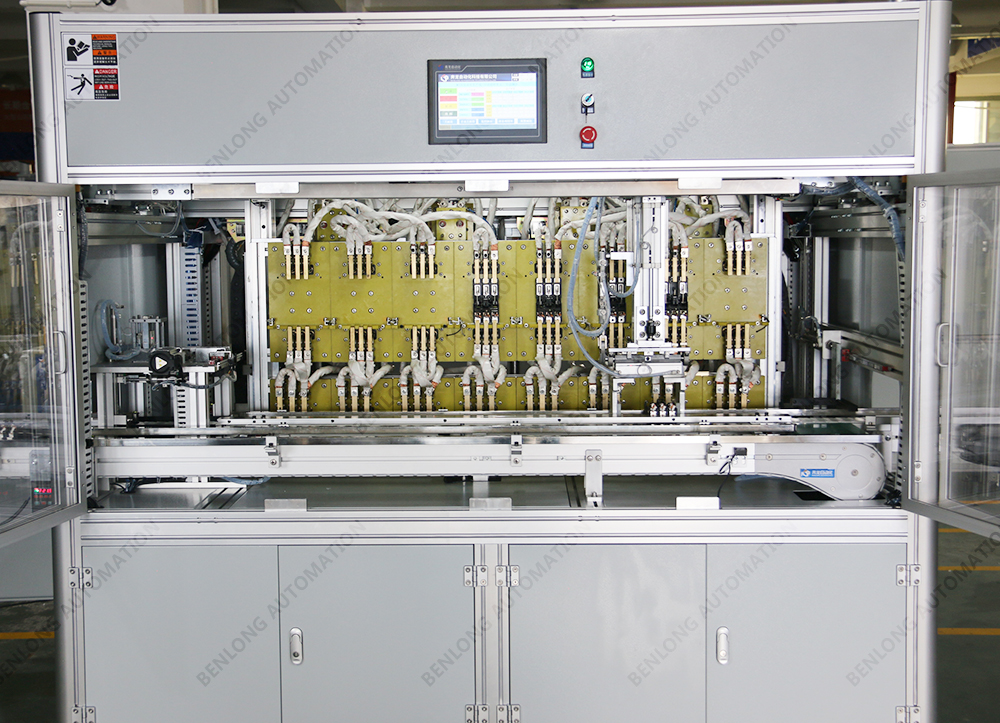

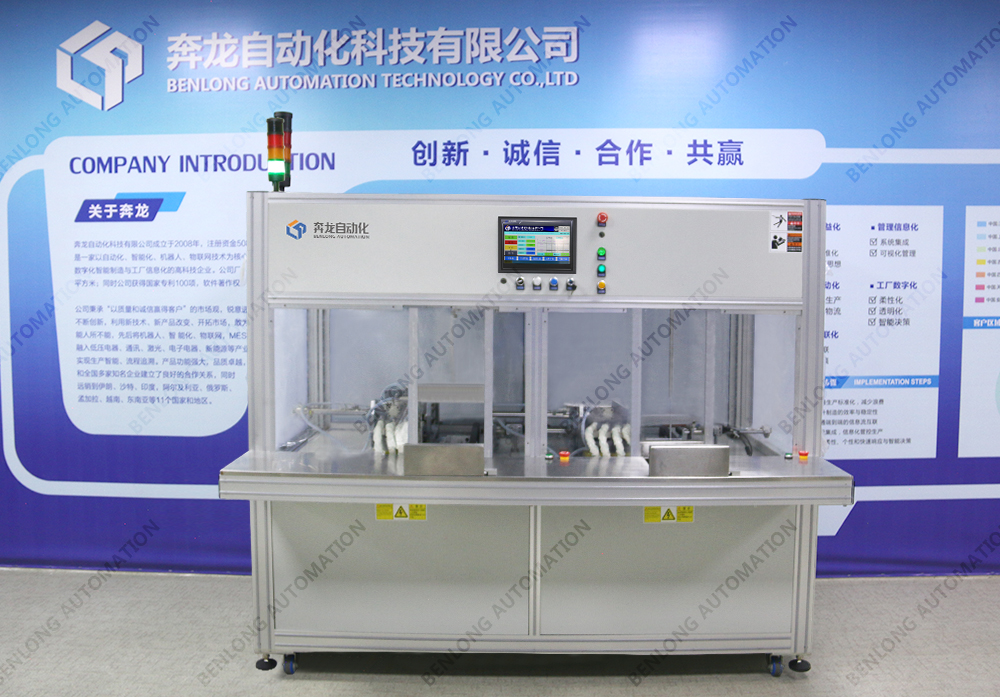

MCCB molded case metering reclosing circuit breaker automatic time delay testing equipment

Short Description:

Automated testing: The equipment can automatically test the delay performance of MCCB molded case metering reclosing circuit breakers without manual intervention.

Time-delay performance test: the equipment can simulate the current and short-circuit situation in real application scenarios, and measure the opening time and closing time of MCCB molded case metering reclosing circuit breakers.

Testing Accuracy: The equipment can accurately measure the delay performance of MCCB molded case metering reclosing circuit breakers to verify its compliance with relevant standards.

Data Recording and Analysis: The equipment can record the test results and related parameters, and conduct data analysis to evaluate the time-delay performance of MCCB molded case metering reclosing circuit breakers.

Alarm Function: The equipment can monitor abnormal situations during the test and issue alarms in time to ensure the safety and reliability of the test.

Automatic judgment: the equipment can automatically determine whether the time-delay performance of MCCB molded case metering reclosing circuit breakers is qualified or not according to the preset test standards and parameters, which facilitates the quality control and management of the production process.

Send email to us

Photograph

Parameters

Video

Previous: MCCB molded case metering reclosing circuit breaker automatic high voltage testing equipment

Next: MCCB molded case metering reclosing circuit breaker automatic instantaneous testing equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. The judgment value of delayed tripping time can be set arbitrarily; Detection current accuracy ± 1%; Waveform distortion ≤ 3%; The output current can be set arbitrarily.
7. Delay detection method: Single phase detection and series detection can be selected.
8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
9. There are two operating systems available: Chinese and English.
10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
11. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
12. Having independent and independent intellectual property rights.
