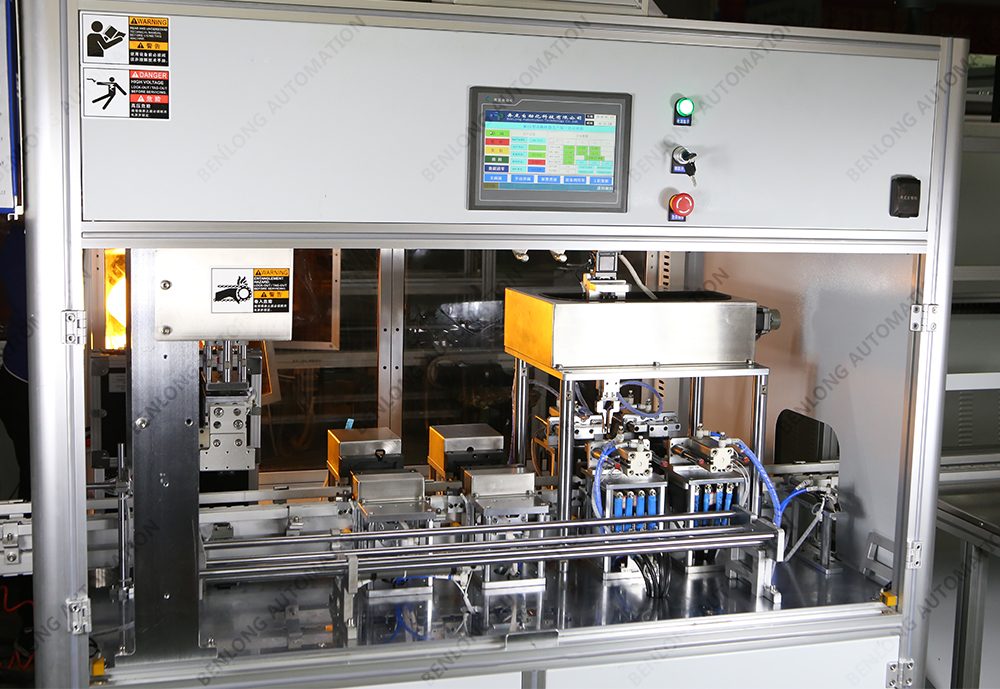

MCCB molded case metering reclosing circuit breaker automatic release force release trip testing equipment

Short Description:

Automatic release force detection: This device measures the amount of automatic release force of MCCB circuit breakers after a fault occurs. Automatic release force refers to the force generated by the circuit breaker when fault current passes through it, which is used to ensure that the circuit breaker can quickly disconnect the faulted circuit to protect electrical equipment and personal safety.

Automatic release stroke detection: The device can monitor and record the automatic release stroke of the MCCB circuit breaker when a fault occurs. The automatic release trip refers to the distance or time of the disconnecting action of the circuit breaker after a fault occurs, which is used to judge the working status and performance of the circuit breaker.

Fault Recording and Alarm: The device can record the occurrence of faults in MCCB circuit breakers and send out alarm signals. This helps to detect faults in time and take corresponding maintenance measures to improve the reliability and safety of the electrical system.

Data analysis and report generation: The device can analyze the release force and release stroke data and generate reports and related statistics. Such analysis helps to assess the working status and performance of MCCB circuit breakers, detect problems in time and make corresponding adjustments and improvements.

Send email to us

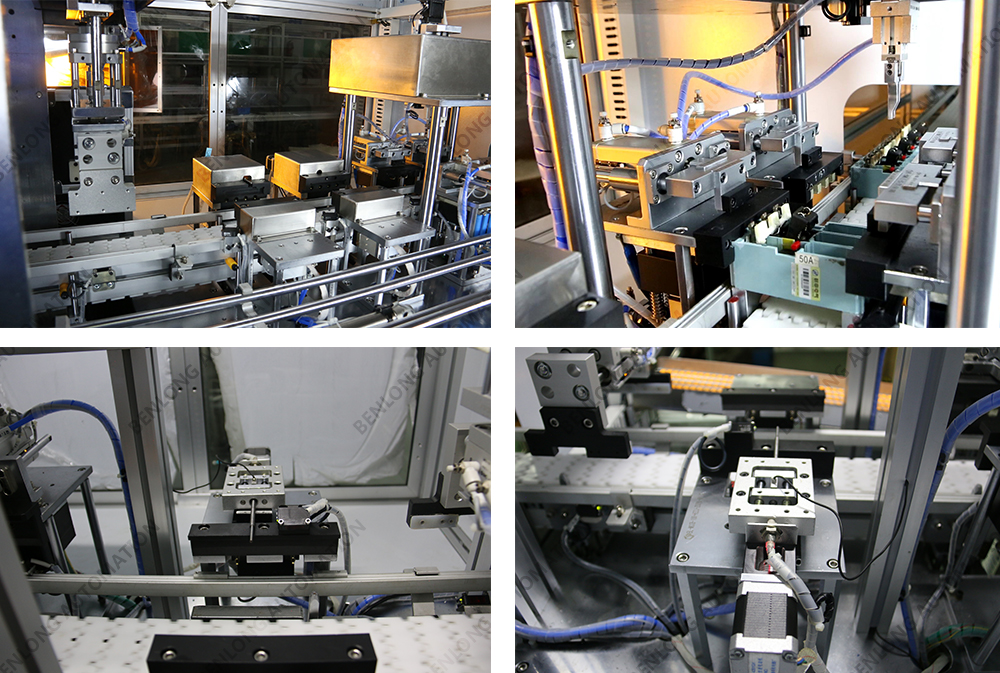

Photograph

Parameters

Video

Previous: MCCB molded case metering reclosing circuit breaker automatic synchronization testing equipment

Next: MCCB molded case metering reclosing circuit breaker automatic circuit resistance testing equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. When detecting the tripping force and tripping stroke, the judgment interval value can be set arbitrarily.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
