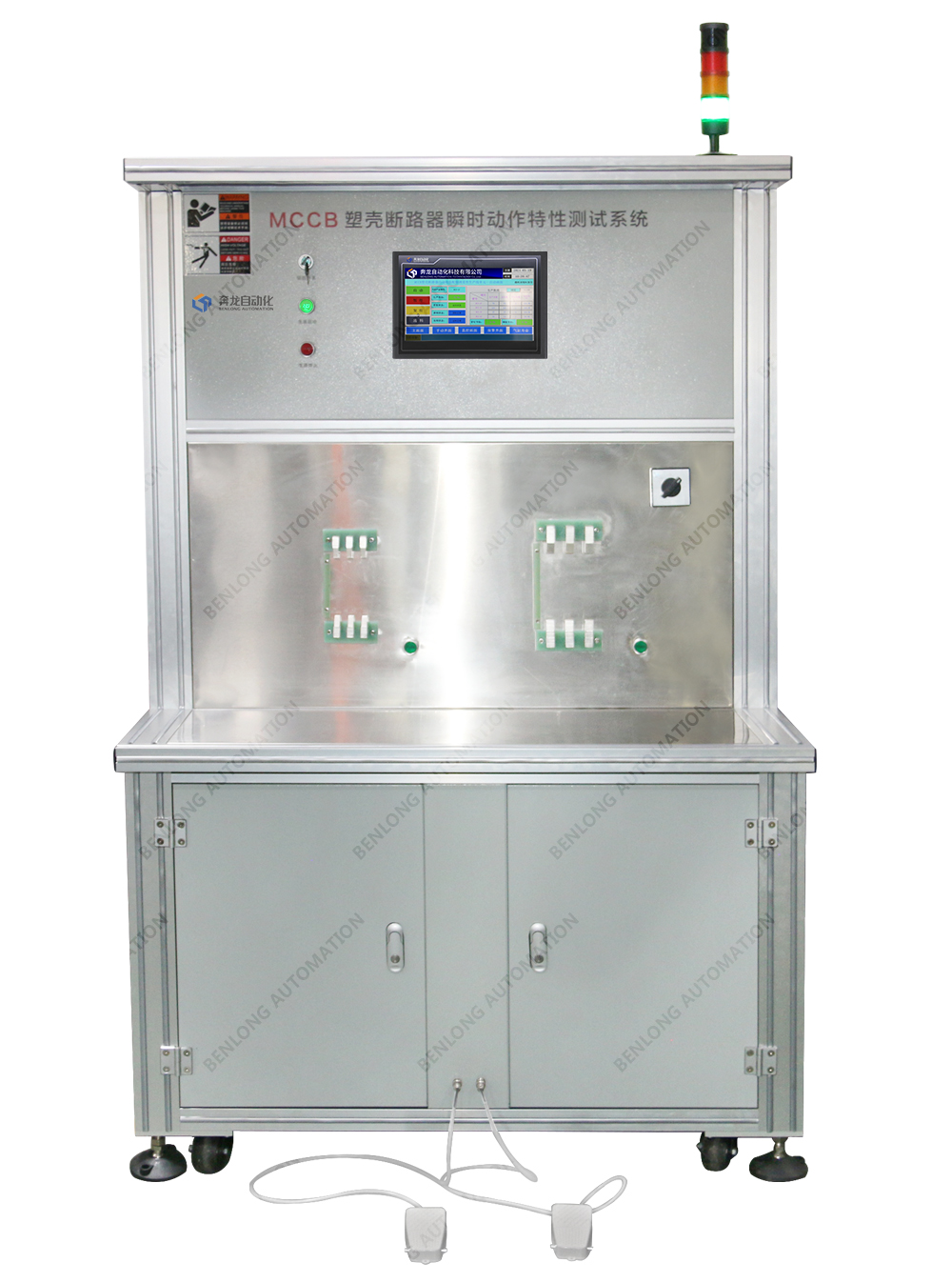

MCCB molded case metering reclosing circuit breaker automatic instantaneous testing equipment

Short Description:

Automated testing: The equipment is capable of automatic testing without manual intervention.

Instantaneous performance test: The equipment is capable of testing the instantaneous action characteristics of MCCB molded case metering reclosing circuit breakers, including parameters such as opening time, closing time and instantaneous action current.

High-precision testing: the equipment is equipped with high-precision measurement function, which can accurately measure the instantaneous performance of circuit breakers to ensure the accuracy of the test results.

Data Recording and Analysis: The equipment is capable of recording the test results and related parameters, and analyzing the data to evaluate the instantaneous performance of MCCB molded case metering reclosing circuit breakers.

Alarm Function: The equipment is able to monitor abnormal situations during the test and issue alarms in time to ensure the safety and reliability of the test.

Automated judgment: the equipment can automatically determine whether the instantaneous performance of MCCB molded case metering reclosing circuit breakers meets the requirements according to the preset test standards and parameters.

Send email to us

Photograph

Parameters

Video

Previous: MCCB molded case metering reclosing circuit breaker automatic time delay testing equipment

Next: MCCB molded case metering reclosing circuit breaker automatic synchronization testing equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. The instantaneous tripping time judgment value can be arbitrarily set; Detection current accuracy ± 1%; Waveform distortion ≤ 3%; The output current can be set arbitrarily.
7. Instantaneous detection method: Single phase detection and series detection can be selected.
8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
9. There are two operating systems available: Chinese and English.
10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
11. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
12. Having independent and independent intellectual property rights.
