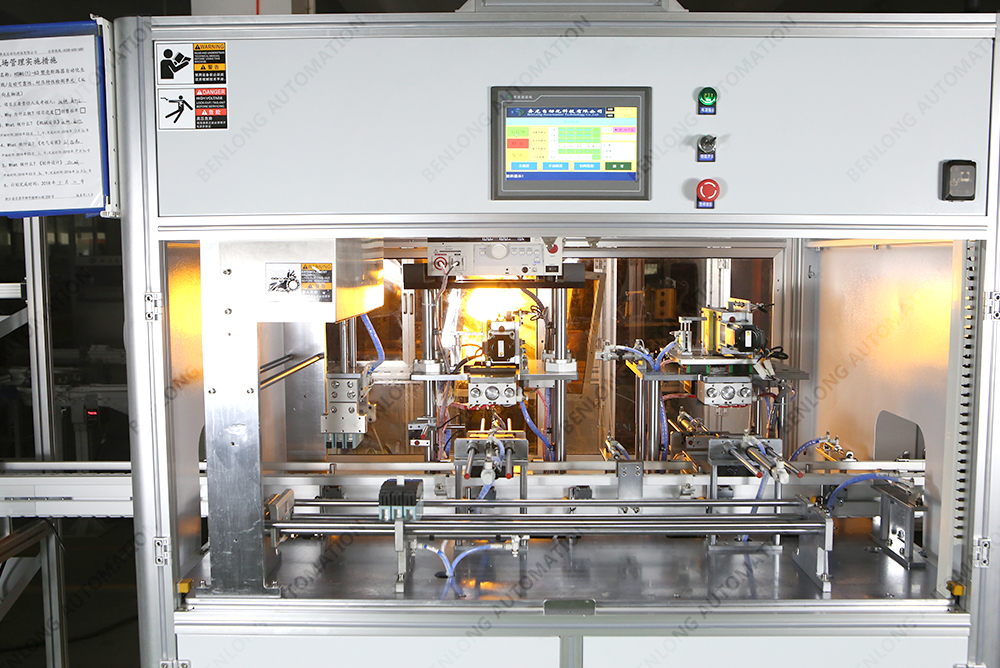

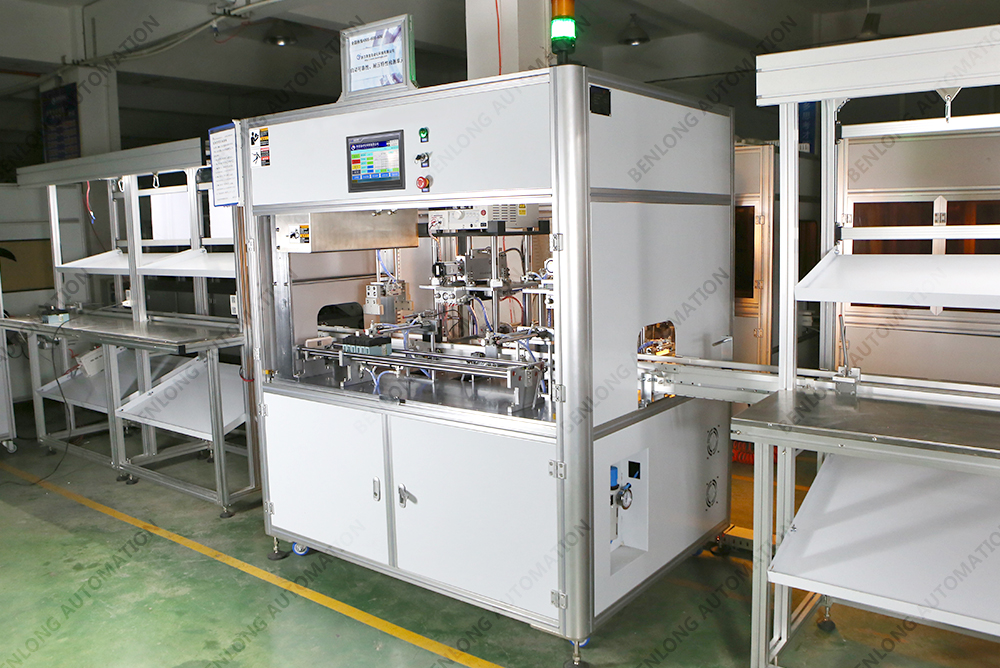

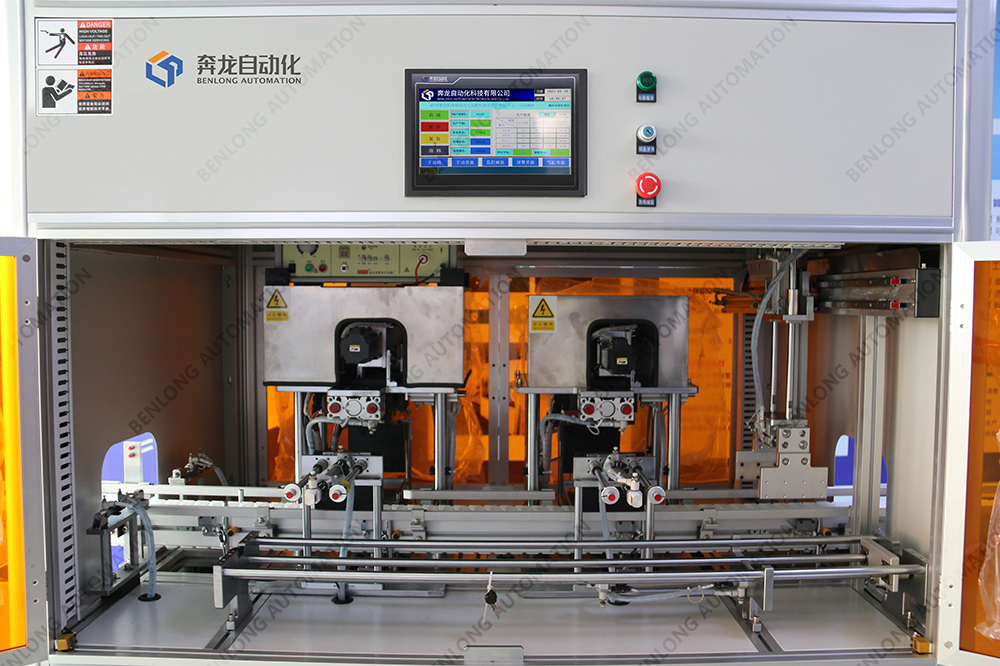

MCCB molded case metering reclosing circuit breaker automatic high voltage testing equipment

Short Description:

Automated Testing: The equipment is capable of performing high voltage testing on MCCB molded case metering reclosing circuit breakers automatically without manual intervention.

High-voltage test: The equipment can apply high-voltage power to the MCCB molded case metering reclosing circuit breaker to ensure its normal operation under high-voltage environment.

Testing Accuracy: The equipment can accurately measure the working voltage, insulation resistance, leakage current and other parameters of MCCB molded case metering reclosing circuit breakers under high voltage to verify that they comply with the relevant standards.

Data recording and analysis: the equipment can record the test results and related parameters, and conduct data analysis to assess the quality and reliability of MCCB molded case metering reclosing circuit breakers.

Alarm Function: The equipment can monitor abnormal situations during the test and issue alarms in time to ensure the safety and reliability of the test.

Automatic determination: the equipment can automatically determine whether the MCCB molded case metering reclosing circuit breakers are qualified according to the preset test standards and parameters, which is convenient for the quality control and management of the production process.

Send email to us

Photograph

Parameters

Video

Previous: MCCB Molded Case Circuit Breaker Automatic Assembly Equipment

Next: MCCB molded case metering reclosing circuit breaker automatic time delay testing equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. The high voltage withstand time of 1-99 seconds can be arbitrarily set as the judgment value; The output voltage of 0-5000V can be set arbitrarily.
7. High voltage resistance detection position: When the product is in the open state, it detects the high voltage resistance between the incoming and outgoing lines; Detect the high voltage resistance between phases when the product is in a closed state; Detect the high voltage resistance between the phase and the bottom plate when the product is in a closed state; When the product is in a closed state, it detects the high voltage resistance between the phase and the handle.
8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
9. There are two operating systems available: Chinese and English.
10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
11. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
12. Having independent and independent intellectual property rights,
