MCCB molded case metering reclosing circuit breaker automatic final pressure testing equipment

Short Description:

The main function of MCCB molded case metering reclosing circuit breaker automatic final pressure testing equipment is to test the terminal pressure of MCCB circuit breaker to ensure its normal operation and safety.

Automatic final pressure detection: the equipment can automatically detect the terminal pressure of MCCB circuit breakers. Terminal pressure is the voltage value of the circuit to which the circuit breaker is connected, and its stability and value under normal conditions are crucial to the operation of the electrical system.

Measurement Accuracy: The device is equipped with a high-precision measurement function that can accurately measure the terminal pressure of MCCB circuit breakers. Accurate measurement results help to determine the safety and stability of the electrical system and detect abnormal or excessive pressure in time.

Alarm and protection function: The device can set alarm thresholds, when the terminal pressure of the MCCB circuit breaker exceeds the set value, an alarm reminder will be triggered and corresponding protective measures may be executed, such as disconnecting the circuit.

Data storage and report generation: The device can store and record measurement data and generate corresponding reports. This helps to track and analyze terminal pressure changes in the electrical system, detecting problems and taking appropriate measures in time.

Send email to us

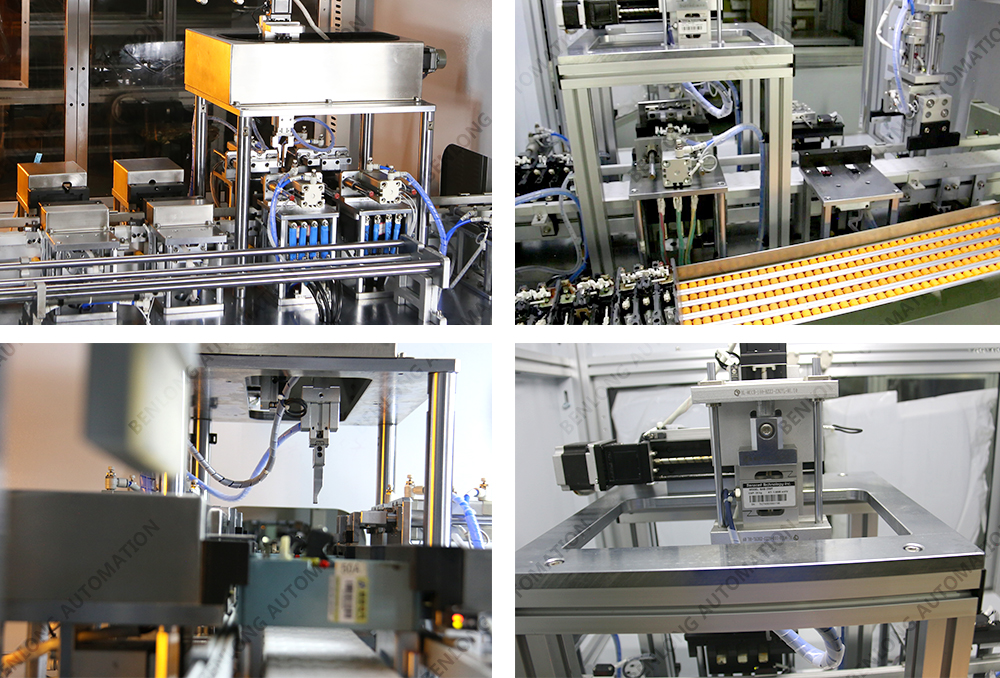

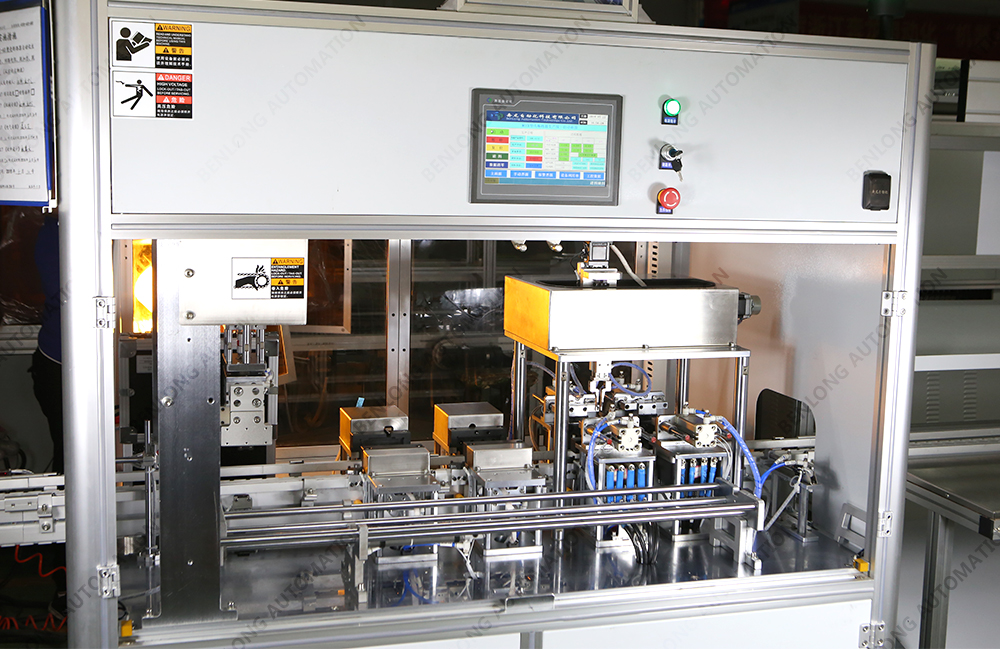

Photograph

Parameters

Video

Previous: MCCB molded case metering reclosing circuit breaker automatic circuit resistance testing equipment

Next: MCCB molded case metering reclosing circuit breaker automatic opening distance, overtravel detection equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. When detecting the final pressure, the judgment interval value can be set arbitrarily.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
