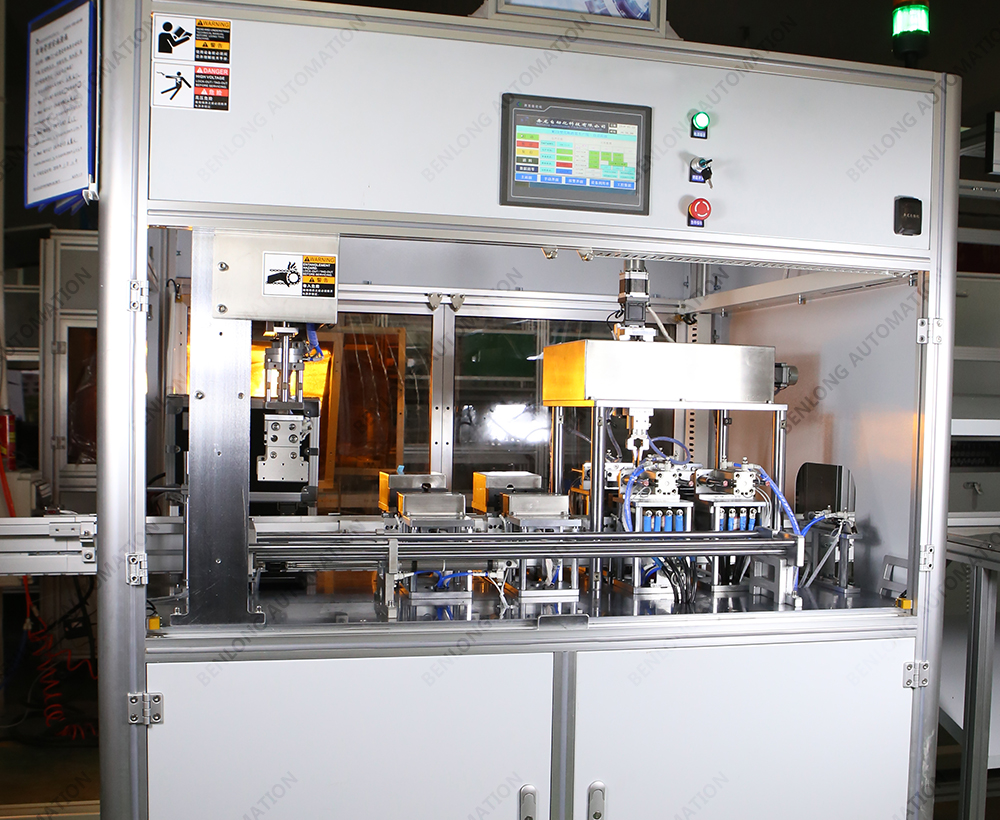

MCCB molded case metering reclosing circuit breaker automatic circuit resistance testing equipment

Short Description:

Automatic Loop Resistance Detection: The equipment can automatically detect the loop resistance value of MCCB circuit breakers. Loop resistance is the impedance value of the circuit in an electrical system, which can affect the flow of current and the accuracy of fault detection. By measuring the circuit resistance, it can determine whether the circuit is smooth, whether there is poor contact or excessive line loss.

Measurement Accuracy: The device is equipped with a high-precision measurement function, which can accurately measure the circuit resistance value of MCCB circuit breakers. Accurate measurement results help determine the quality and stability of the circuit and detect potential problems in time.

Multiple Measurement Modes: The device is usually equipped with multiple measurement modes, and different measurement modes can be selected as needed. For example, normal mode is used for daily circuit resistance testing, fast mode is used to quickly test a large number of circuit breakers, and super mode is used for high-precision measurements in special occasions.

Data storage and report generation: The device can store and record measurement data and generate corresponding reports. This helps to track and analyze the circuit resistance changes of the electrical system, detect problems in time and take appropriate measures.

Send email to us

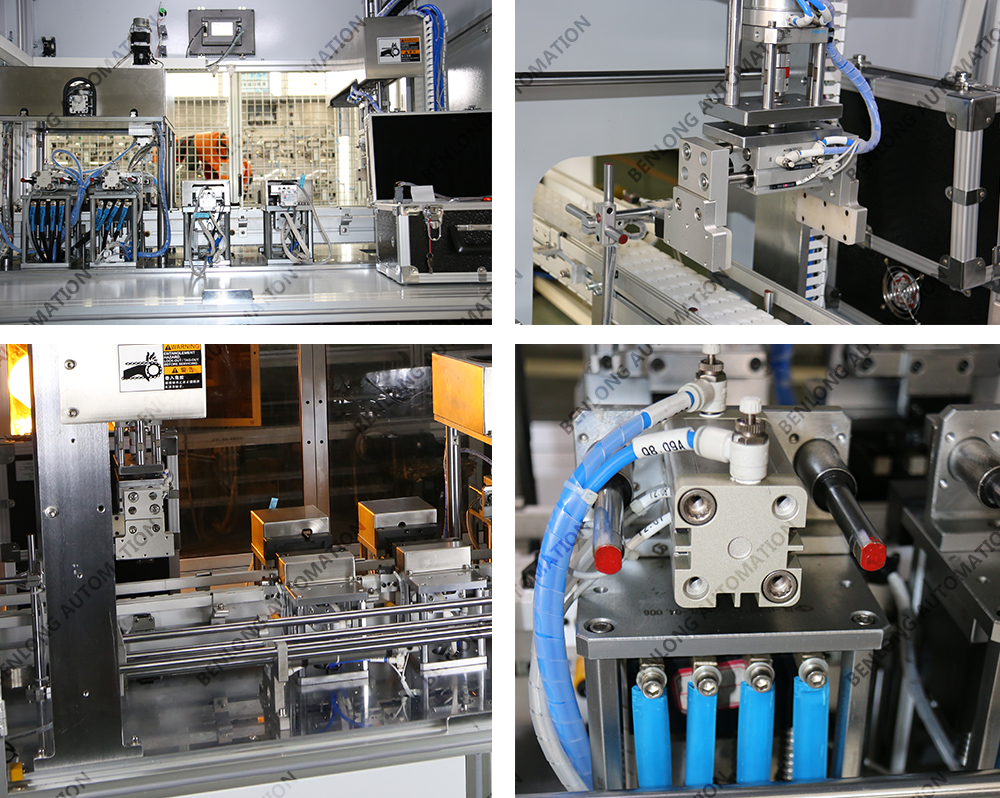

Photograph

Parameters

Video

Previous: MCCB molded case metering reclosing circuit breaker automatic release force release trip testing equipment

Next: MCCB molded case metering reclosing circuit breaker automatic final pressure testing equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. When detecting circuit resistance, the judgment interval value can be set arbitrarily.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
