MCCB molded case metering reclosing circuit breaker automatic assembly equipment

Short Description:

Parts supply: The equipment can automatically supply various parts required for MCCB circuit breakers, including molded cases, contacts, springs, bolts and so on. By automatically supplying parts, supply efficiency and accuracy can be improved.

Automatic assembly: The equipment can automatically assemble various parts together to complete the assembly process of MCCB circuit breakers. Automatic assembly can reduce manual operation and improve production efficiency and consistency.

Inspection and Adjustment: The equipment can perform automatic inspection and adjustment to ensure the quality and performance of circuit breaker assembly. Through inspection and adjustment, product defect rate and failure rate can be reduced.

Data tracking: The equipment can track and record the data of each circuit breaker assembly process, including the information of supplying parts and assembly process. Through data tracking, the product can be quality controlled and traced.

Fault Alarm: The equipment can detect faults in the assembly process and alarm in time for timely repair and adjustment. Fault alarm can reduce the defective rate and return rate of products.

Send email to us

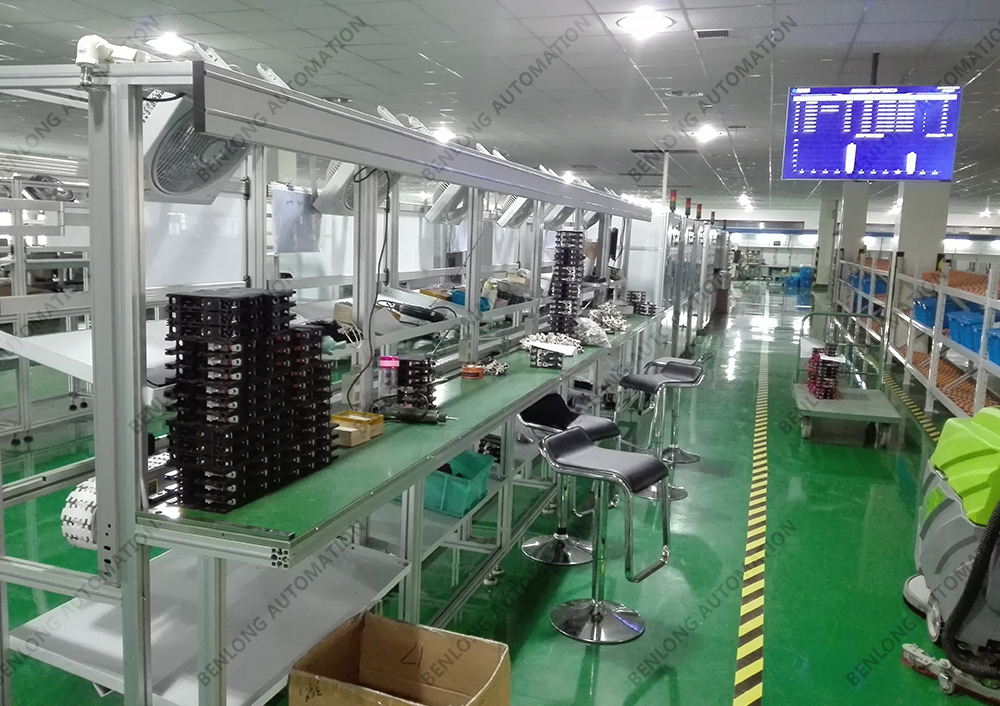

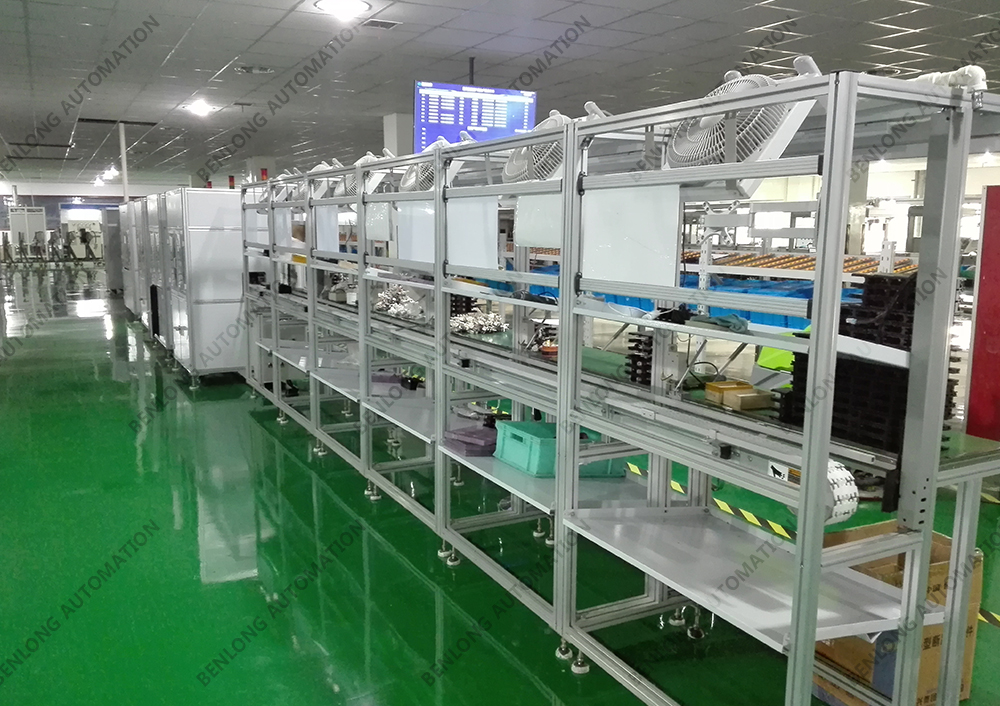

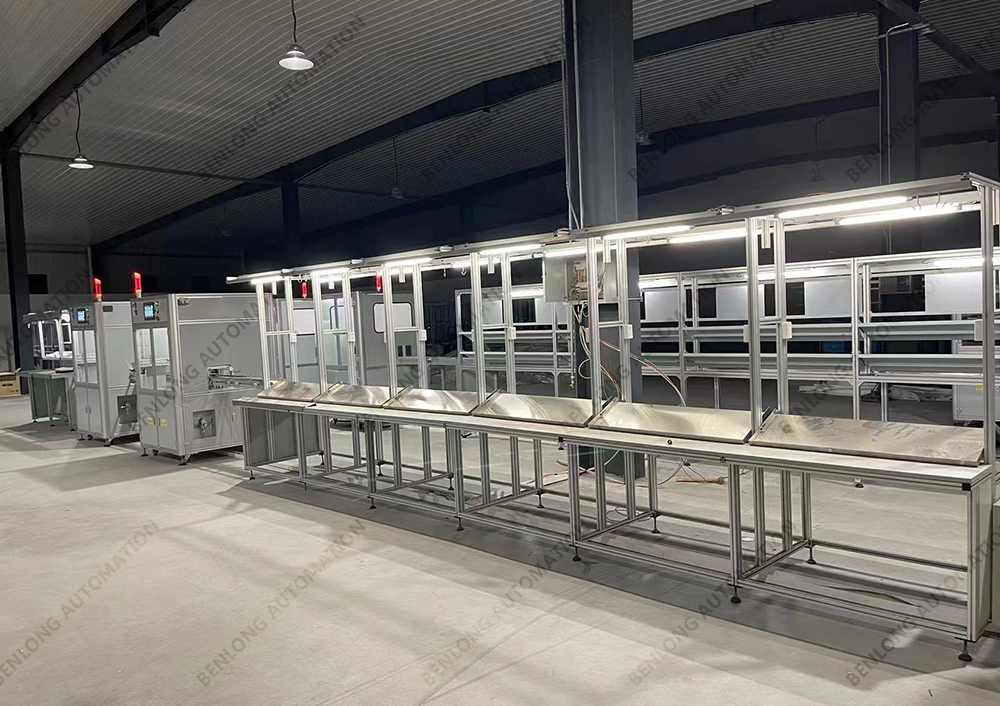

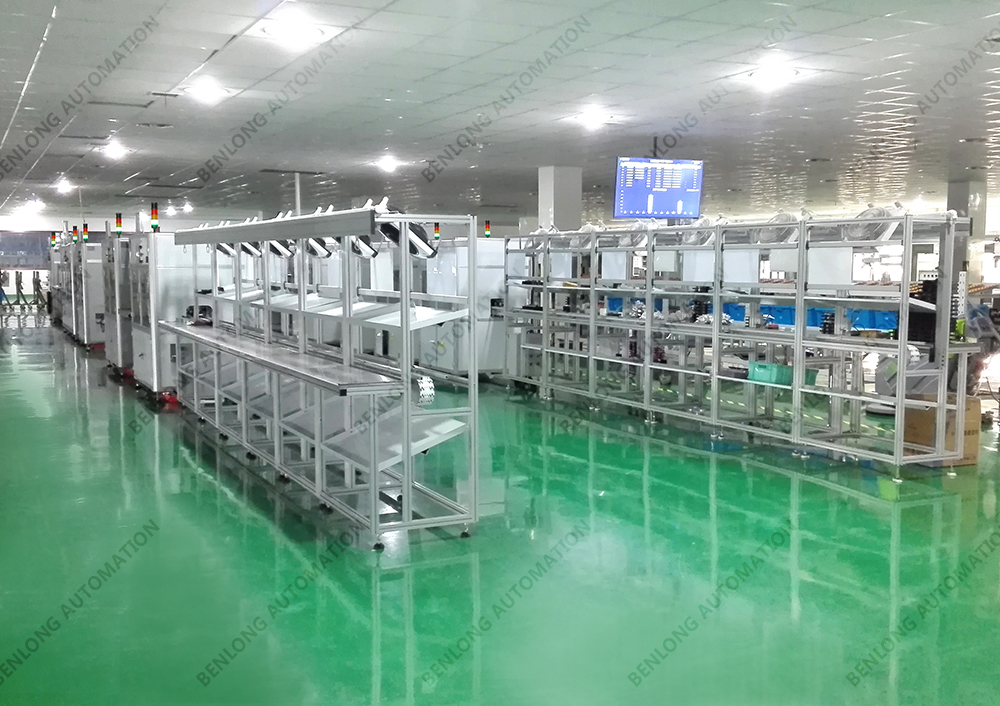

Photograph

Parameters

Video

Previous: MCCB molded case metering reclosing circuit breaker automatic two-dimensional code laser marking equipment

Next: MCCB molded case metering reclosing circuit breaker automated assembly testing flexible production line

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. Assembly method: manual assembly and automatic assembly can be selected at will.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
