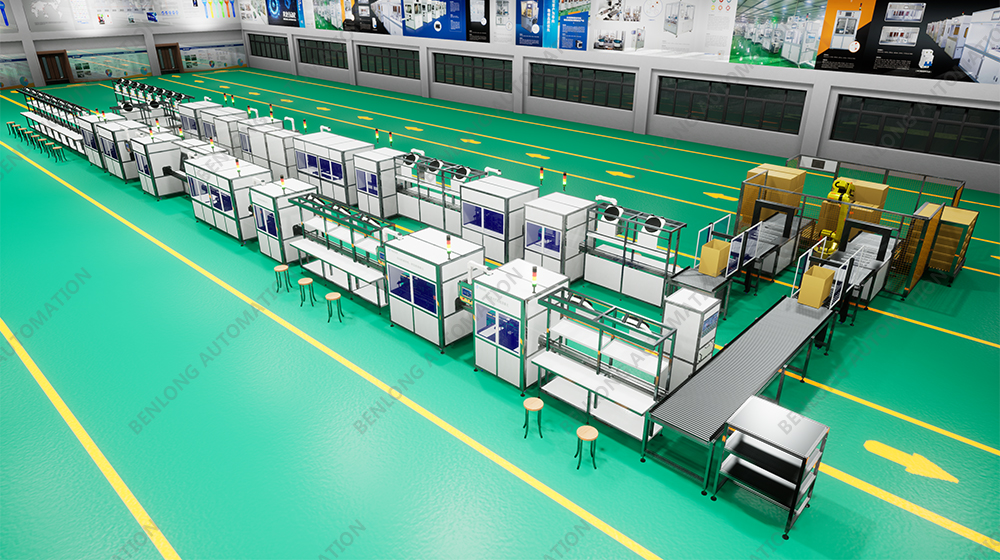

MCCB molded case metering reclosing circuit breaker automated assembly testing flexible production line

Short Description:

With automatic loading, assembly, labeling, mechanical break-in, open distance, overtravel, final pressure, circuit resistance, release force, release stroke, synchronicity, instantaneous, delayed, load current rise and fall variance, locking face cover screws, slow return, mechanical characteristics, through-breakage, withstand voltage, pad printing, residual current calibration, residual current detection, power calibration, over-voltage, under-voltage, phase voltage, line voltage, voltage unbalance, voltage transient drop, Voltage short-time interruption, active power, reactive power, apparent power, phase, power consumption, power factor, frequency, vector diagram, waveform curve, BSU control, power factor, TTL level pulse, harmonics, overrun, phase loss, phase break, lack of zero, blackout and reset, inverse phase sequence, carrier module communication, topology detection, islanding protection, locking terminal block screws, aging, laser marking, packaging, palletizing, AGV logistics, lack of material alarm and other processes. The assembly, online testing, real-time monitoring, quality traceability, barcode identification, component life monitoring, data storage, MES system and ERP system networking, parameter arbitrary recipe, intelligent energy analysis and energy-saving management system, intelligent equipment service big data cloud platform and other functions of the process.

Send email to us

Photograph

Parameters

Video

Previous: MCCB molded case metering reclosing circuit breaker automatic assembly equipment

Next: IOT Intelligent Miniature Circuit Breaker Automated Production Line

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 60 seconds per unit and 120 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. Assembly method: manual assembly and automatic assembly can be selected at will.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
