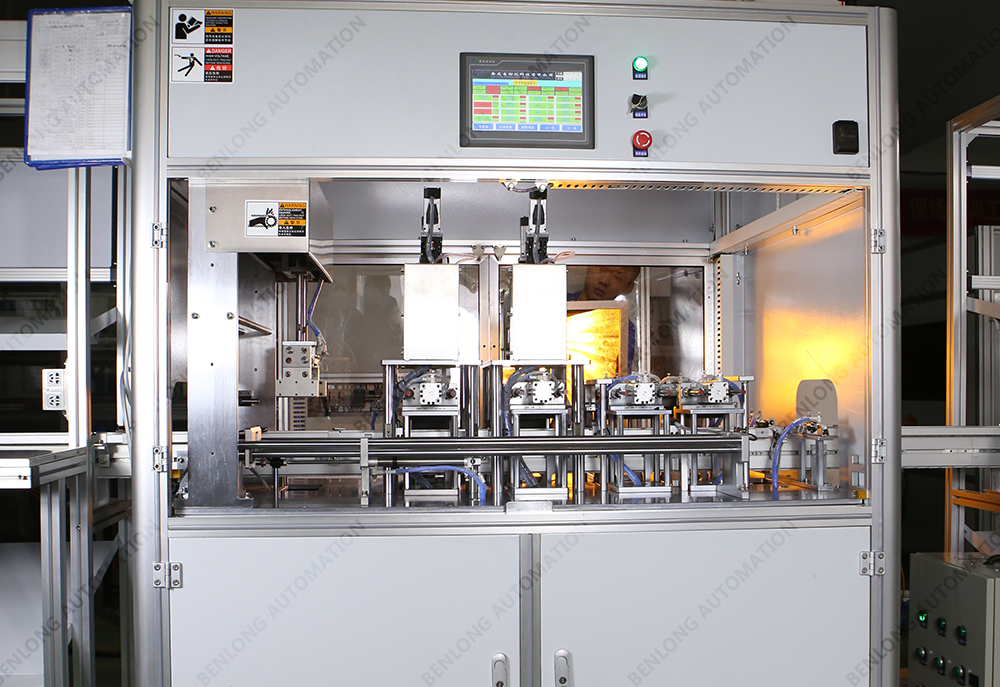

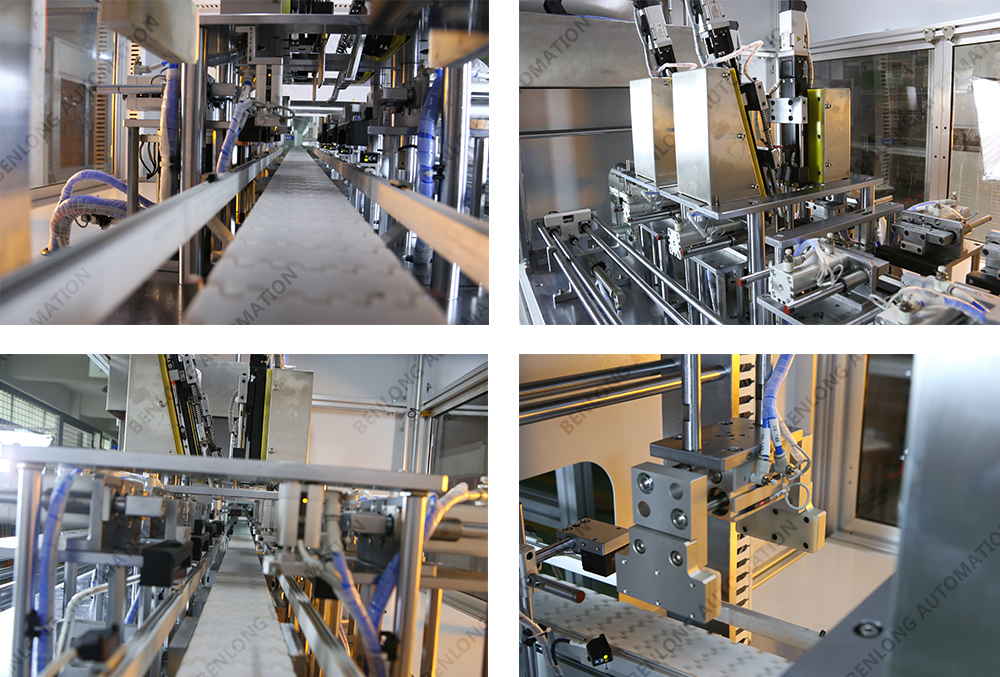

MCCB molded case circuit breaker automatic opening distance, overtravel detection equipment

Short Description:

MCCB molded case circuit breakers do not usually have automatic opening distance and overtravel detection, but some models of advanced MCCBs may have some additional features. The automatic opening distance feature refers to the ability of a circuit breaker to automatically break a circuit under certain conditions to protect electrical equipment. This feature is commonly found in distance protection relays or line protection devices, not in the MCCB itself. The over-travel detection function is used to monitor whether the voltage or other parameters of a circuit exceed a set range. This function usually requires the use of an additional device, such as a monitoring device or relay, rather than the MCCB itself. Overall, if you need automatic open-range and over-travel detection functions, it is recommended that you contact a professional electrical engineer to select the appropriate equipment and program for your specific needs.

Send email to us

Photograph

Parameters

Video

Previous: MCCB molded case circuit breaker automatic circuit resistance, final pressure testing equipment

Next: MCCB molded case circuit breaker automatic 2D code laser marking equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. When detecting distance and overtravel, the judgment interval value can be set arbitrarily; The number of mechanical breakins can be set arbitrarily.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
