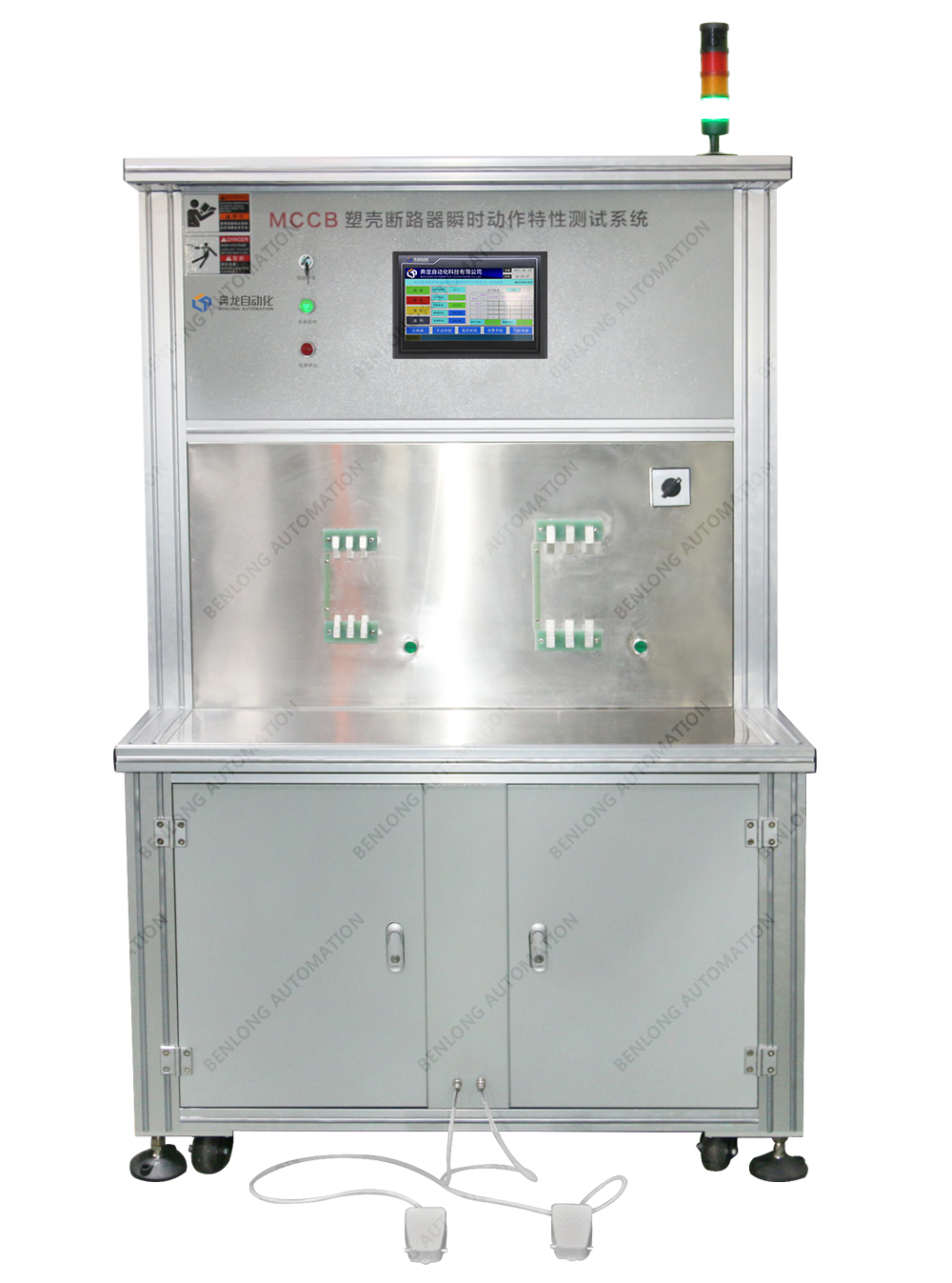

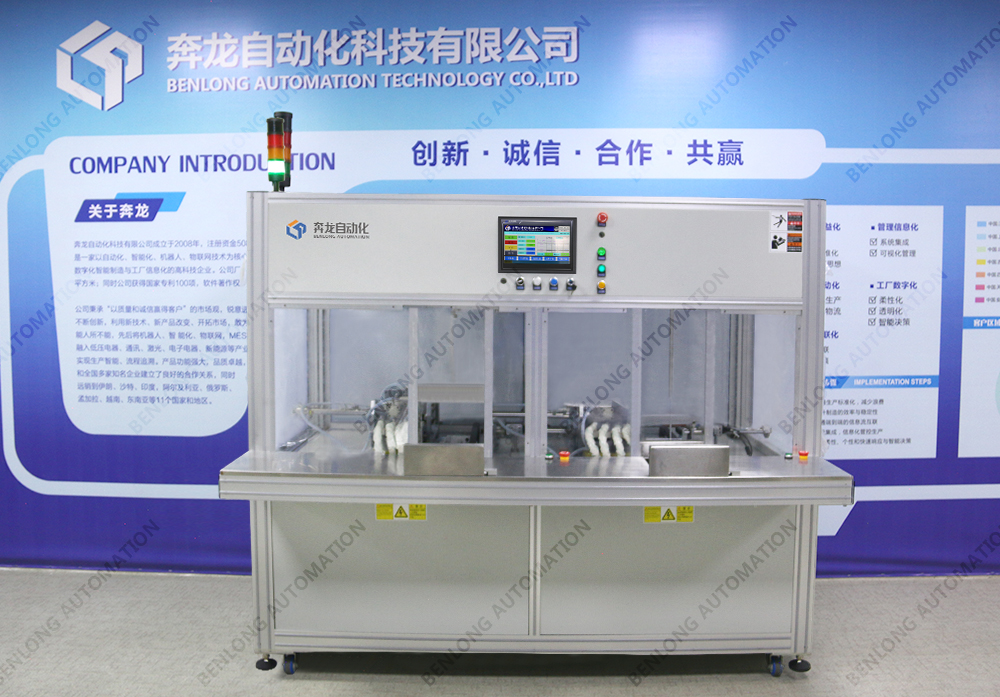

MCCB molded case circuit breaker automatic instantaneous testing equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. The instantaneous tripping time judgment value can be arbitrarily set; Detection current accuracy ± 1%; Waveform distortion ≤ 3%; The output current can be set arbitrarily.
7. Instantaneous detection method: Single phase detection and series detection can be selected.
8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
9. There are two operating systems available: Chinese and English.
10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
11. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
12. Having independent and independent intellectual property rights.
