MCCB Molded Case Circuit Breaker Automatic Assembly Equipment

Short Description:

Automatic operation: the equipment can automatically complete the assembly operation of each component of MCCB molded case circuit breaker without manual intervention.

High-efficiency assembly: the equipment can complete the assembly work with high speed and high efficiency, which improves the production efficiency and capacity.

High-precision assembly: The equipment can accurately locate and connect the components of MCCB molded case circuit breakers to ensure assembly quality and product consistency.

Adjustable parameters: The equipment usually has flexible parameter settings, which can be used to assemble MCCBs of different models and specifications.

Inspection function: the equipment usually also has assembly quality inspection function, can detect the assembly of components, timely detection and elimination of assembly problems, to ensure product quality.

Data management function: the equipment can record and manage the relevant data of the assembly process, such as assembly time, supplier information, etc., which is convenient for the traceability of the production process and quality control.

Send email to us

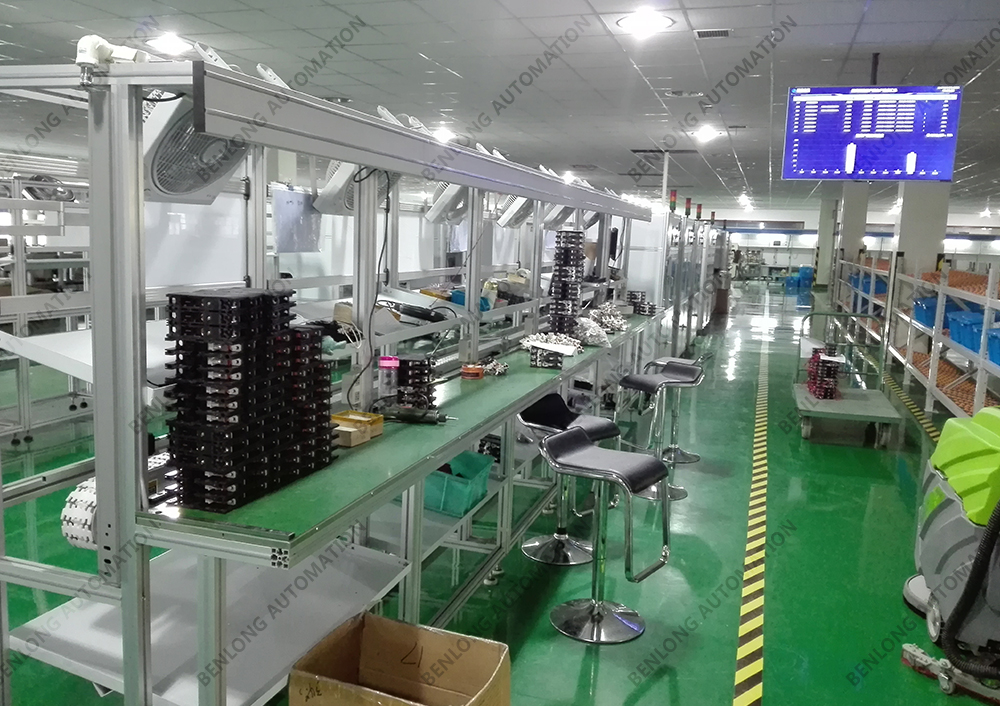

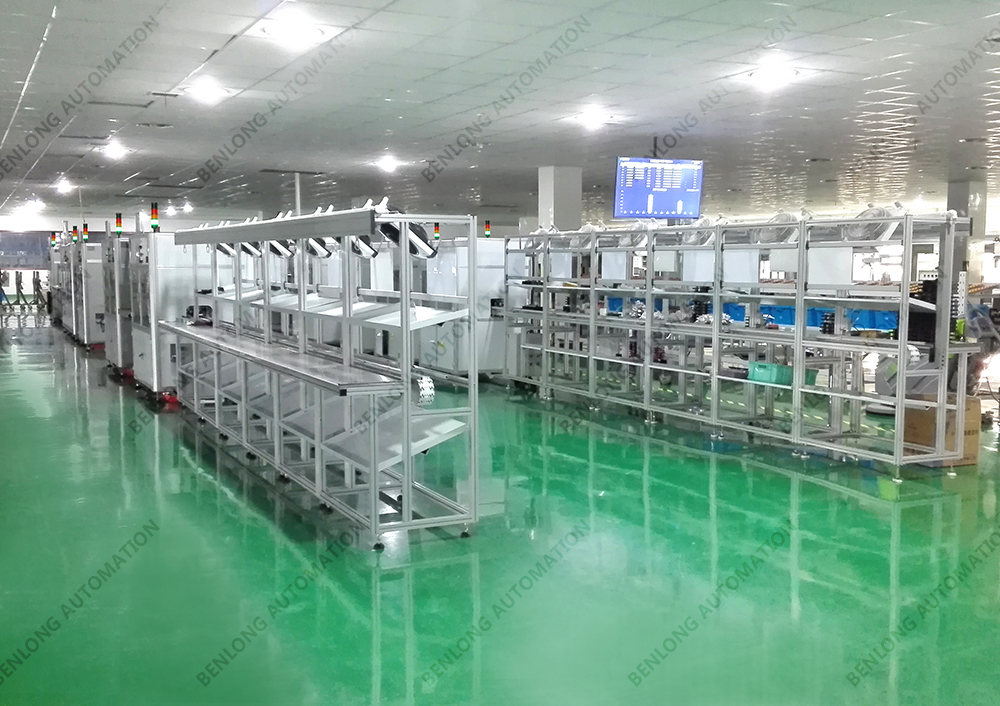

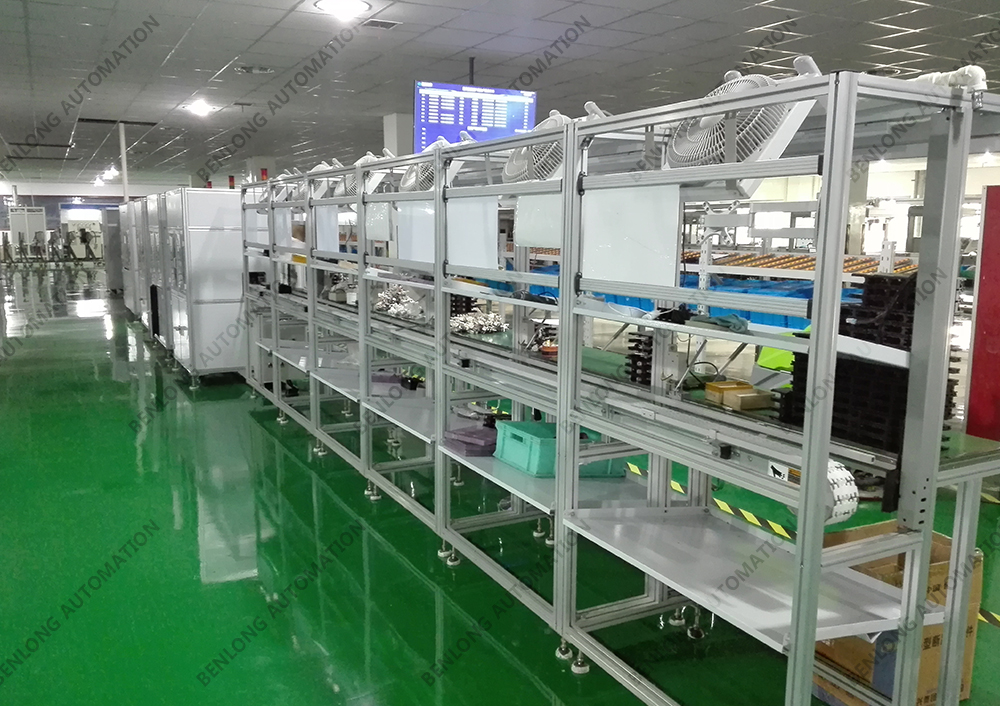

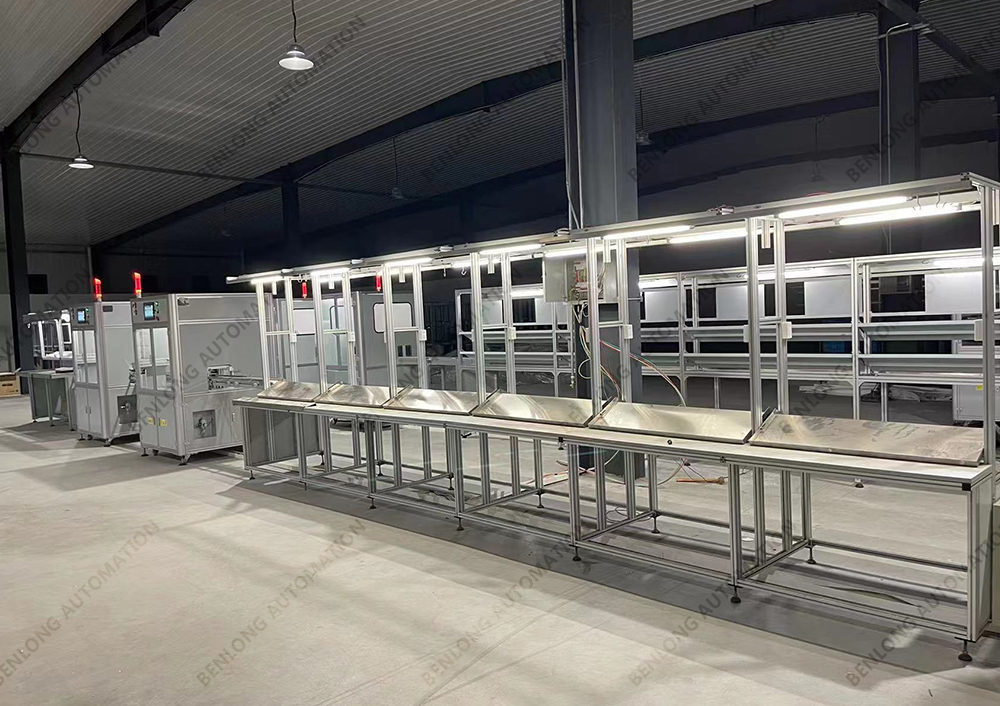

Photograph

Parameters

Video

Previous: MCCB molded case circuit breaker automatic 2D code laser marking equipment

Next: MCCB molded case metering reclosing circuit breaker automatic high voltage testing equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. Assembly method: manual assembly and automatic assembly can be selected at will.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights,
