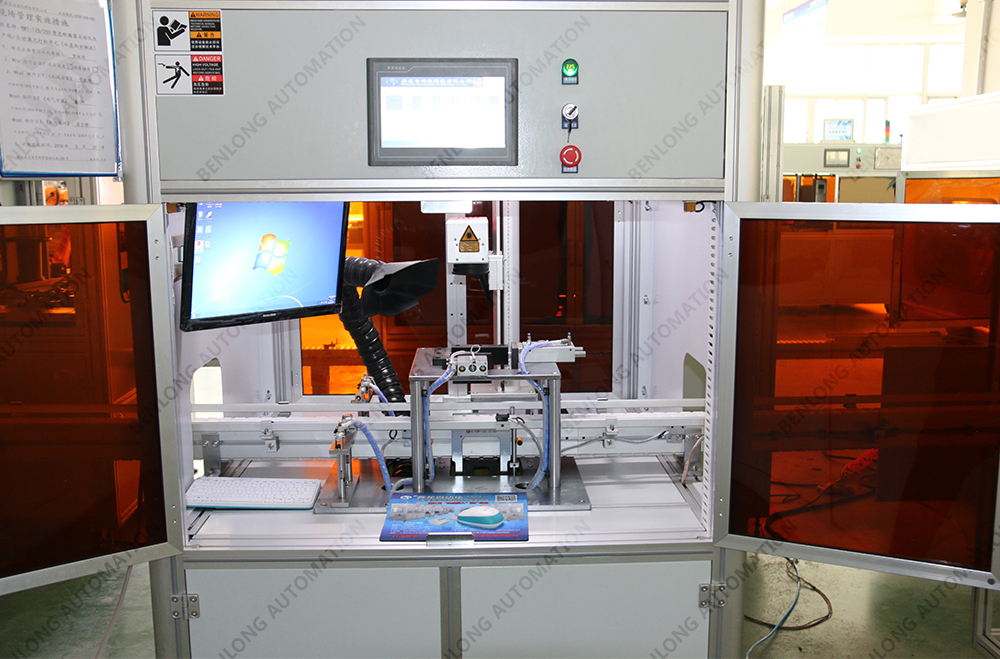

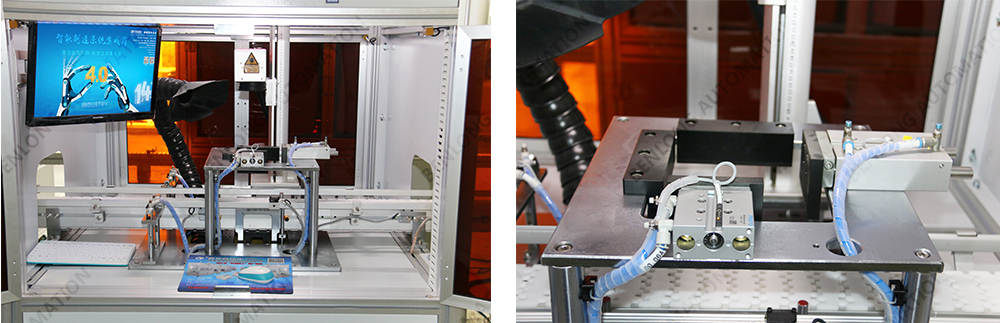

MCCB molded case circuit breaker automatic 2D code laser marking equipment

Short Description:

Automatic operation: the equipment can automatically perform positioning, location identification and 2D code laser marking operation on MCCB plastic shells without manual intervention.

High-precision marking: the laser marking technology can realize high-precision and high-definition marking effect, ensuring the readability and durability of the 2D code.

Fast marking speed: the equipment has a high-speed marking function, which can realize fast production efficiency and improve the working efficiency of the production line.

Flexibility and customizability: The equipment usually has flexible parameter settings and operation interface, which can be customized according to different production requirements, such as printing different types of 2D codes, barcodes or other identification symbols.

Data management function: the equipment usually also has a data management function, which can record and manage the information related to the QR code, such as production date, batch number, etc., which is convenient for the traceability and quality control of the production process.

Automatic QR code laser marking equipment can realize fast, accurate and traceable marking on MCCB production lines, improving production efficiency and quality control.

Send email to us

Photograph

Parameters

Video

Previous: MCCB molded case circuit breaker automatic opening distance, overtravel detection equipment

Next: MCCB Molded Case Circuit Breaker Automatic Assembly Equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. Equipment fixtures can be customized according to the product model; The QR code definition range is 24 digits.
6. The equipment has alarm display functions such as fault alarm and pressure monitoring.
7. There are two operating systems available: Chinese and English.
8. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
9. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
10. Having independent and independent intellectual property rights.
