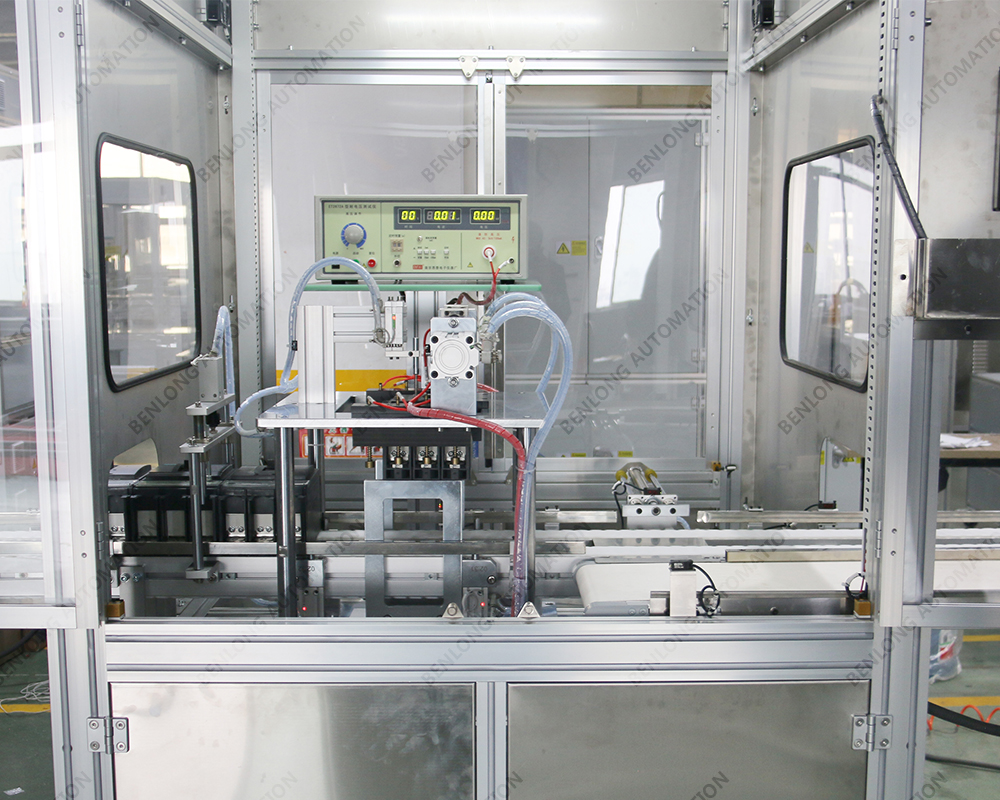

MCCB Automatic Mechanical Characteristic Compression Test Equipment

Short Description:

Mechanical Characteristics Test: able to test the mechanical characteristics of MCCB moulded case circuit breakers, including the measurement and analysis of action characteristics, action time, number of actions and other parameters, in order to ensure the reliability and stability of the circuit breakers during normal operation.
Voltage resistance test: it can test the insulation and voltage resistance of MCCB moulded case circuit breakers, including the insulation strength and voltage resistance of the circuit breakers, in order to ensure the safety and reliability of the circuit breakers in high-voltage environments.
Automated testing: the equipment has an automated testing function, which is capable of conducting comprehensive mechanical property and voltage withstand performance tests on MCCB moulded case circuit breakers through pre-set testing procedures, improving testing efficiency and accuracy.
Data Recording and Analysis: It can record and analyse the data in the testing process, generate test reports and save the test data, which is convenient for users to carry out subsequent data analysis and comparison.
Safety and reliability: The equipment has a safe and reliable design and protection functions to ensure the safety of operators and equipment during the test process.
Overall, the MCCB moulded case circuit breaker automatic mechanical characteristic withstand pressure test equipment has comprehensive test functions and safe and reliable features, can effectively carry out comprehensive testing and evaluation of the mechanical characteristics and pressure resistance of MCCB moulded case circuit breakers.


See More>>

Photograph

Parameters

Video

1

2

3


  • Previous:
  • Next:

  • 1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
    2. Equipment compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
    3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
    4. The same shelf product can be switched between different poles with just one click or by scanning the code; Switching between different shell products requires manual replacement of molds or fixtures.
    5. The equipment fixtures can be customized according to the product model.
    6. The high-voltage withstand time of 1-99 seconds can be arbitrarily set as the judgment value; The output voltage of 0-5000V can be set arbitrarily.

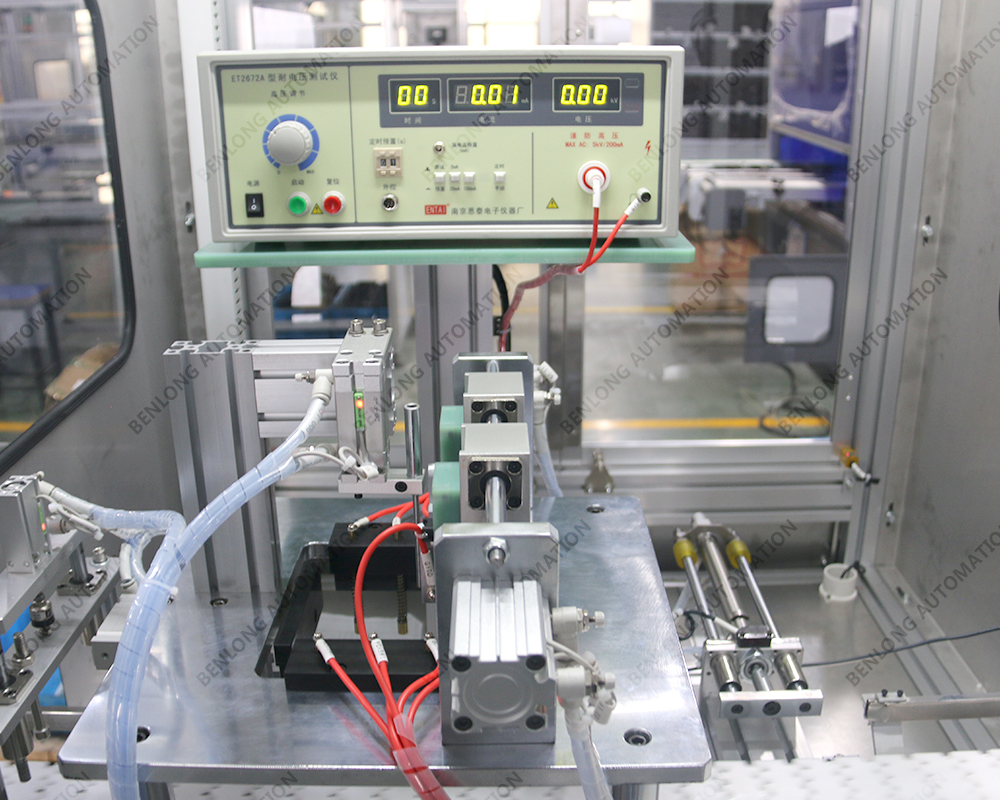

    7. High voltage resistance detection position: When the product is in the open state, it detects the high voltage resistance between the incoming and outgoing lines; Detect the high voltage resistance between phases when the product is in the closed state; Detect the high voltage resistance between the phase and the bottom plate when the product is in the closed state; The product detects the high voltage resistance between the phase and the handle when in the closed state.
    8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
    9. There are two operating systems available: Chinese and English.
    10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
    11. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
    12. Having independent and independent intellectual property rights
