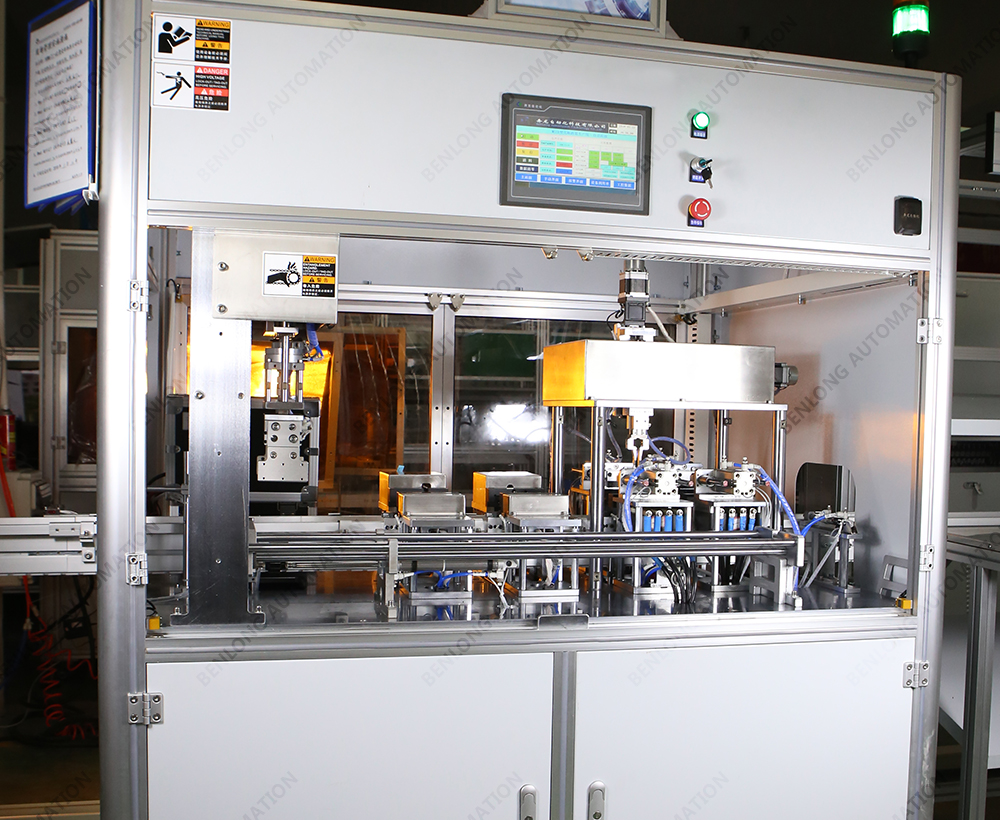

MCCB automatic mechanical break-in, synchronization, decoupling force decoupling stroke testing equipment

Short Description:

Mechanical break-in test: The equipment is capable of simulating different numbers of switching operations to test the mechanical break-in performance of MCCB circuit breakers, i.e. the reliability and durability of switching operations.

Synchronization Test: The equipment is capable of testing the coordination of MCCB circuit breakers during synchronized operation to ensure that a synchronized state can be achieved when multiple circuit breakers are opened or closed at the same time, preventing unbalanced or unstable conditions in the circuit.

Withdrawal Force Test: The device measures the withdrawal force required to open or close an MCCB circuit breaker to ensure that the circuit breaker operates properly and responds quickly to disconnect or close commands.

Tripping Test: Equipment that measures the travel of an MCCB circuit breaker during a tripping operation, i.e., the distance the circuit breaker travels, to ensure its accuracy and consistency during a disconnect or close operation.

Data Recording and Analysis: The equipment is capable of recording and storing test results and analyzing the data for subsequent troubleshooting and performance evaluation.

Send email to us

Photograph

Parameters

Video

Previous: MCCB molded case circuit breaker automatic release force, release stroke testing equipment

Next: MCCB molded case circuit breaker automatic circuit resistance, final pressure testing equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility specifications: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3. Equipment production rhythm: 28 seconds per unit and 40 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. When detecting circuit resistance, the judgment interval value can be set arbitrarily.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
