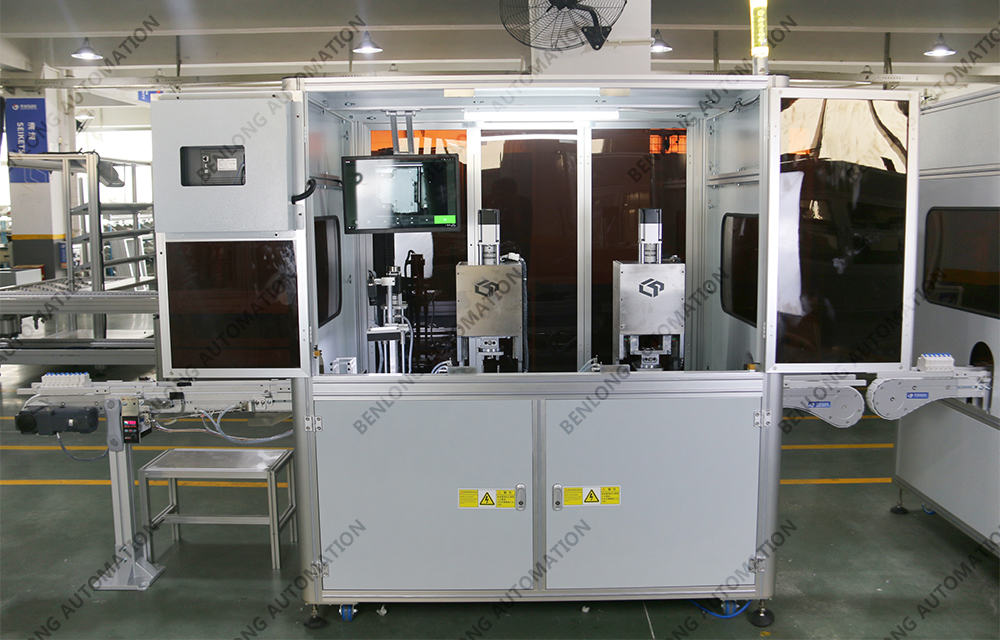

MCB Visual Automatic Rivet Detection Equipment

Short Description:

Automatic rivet detection: The device can automatically detect the quality of rivets on MCB products, including indicators such as length, diameter, and position of rivets.

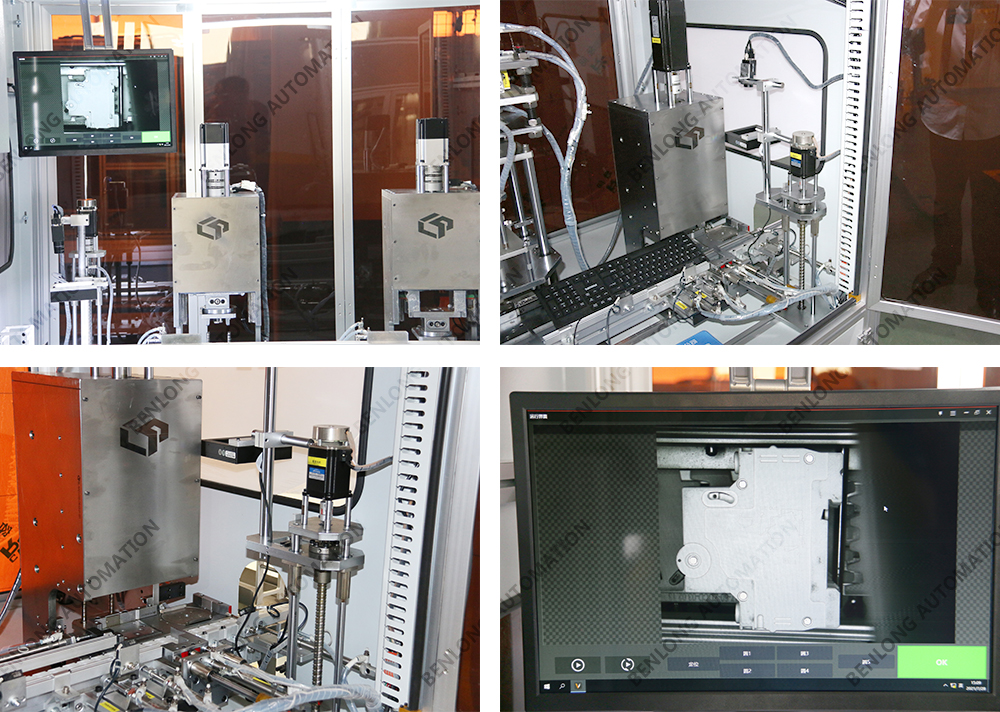

Visual inspection: The equipment is equipped with high-resolution cameras and image processing software, which can detect the quality and position of rivets through visual technology to ensure the correct setting of each rivet.
Defect detection: The equipment can identify potential defects on rivets, such as breakage, deformation, or misalignment, to ensure the quality of MCB products.
Automatic judgment and classification: The equipment can automatically judge and classify MCB products based on preset rivet standards, improving production efficiency.
Data recording and analysis: The equipment can record the results of each test and related data, facilitating quality control and production analysis, and supporting data statistics and report generation.

Send email to us

Photograph

Parameters

Video

Previous: MCCB visual automatic laser transfer printing detection equipment

Next: MCB Visual Automatic Rivet Piercing Detection Equipment

1. Equipment input voltage 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P, 2P, 3P, 4P, 5P
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, and 3 seconds per pole; Five different specifications of equipment.
4. The same shelf product can be switched between different poles with one click or scan code switching; Different shell frame products require manual replacement of molds or fixtures.
5. The rivet feeding method is vibration disc feeding; Noise ≤ 80 decibels; The number of rivets and molds can be customized according to the product model.
6. Visual inspection options: Depending on the different production processes and requirements of the product, high-precision vision, robot+high-precision vision, and other methods can be used to achieve this.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
