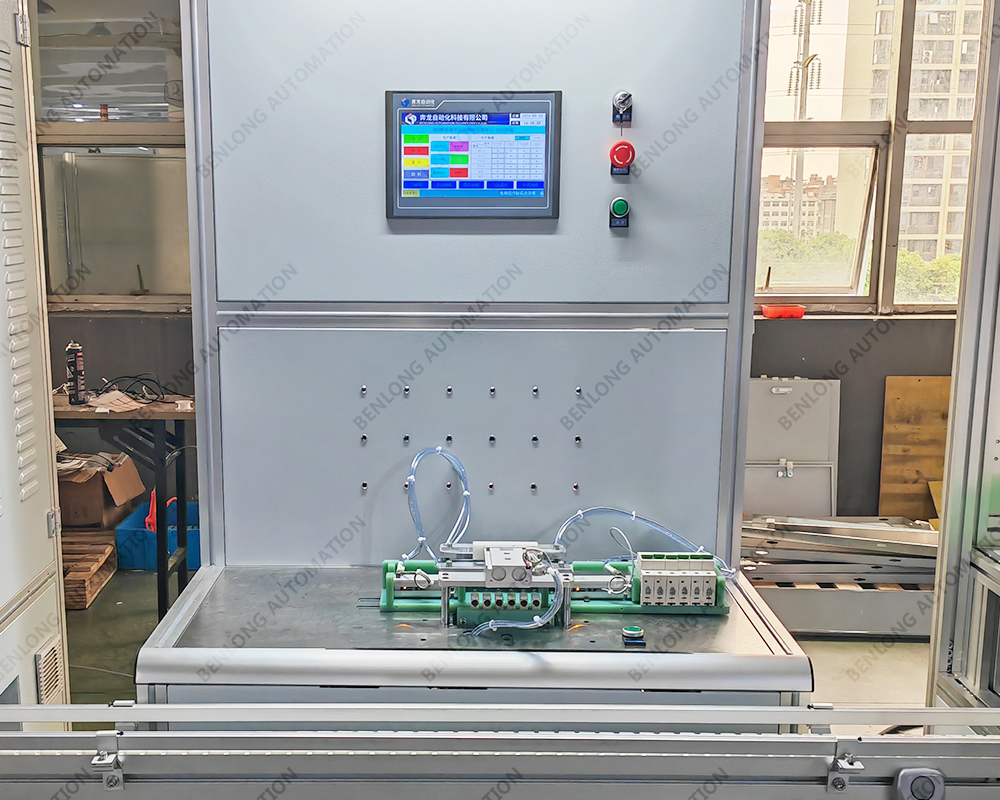

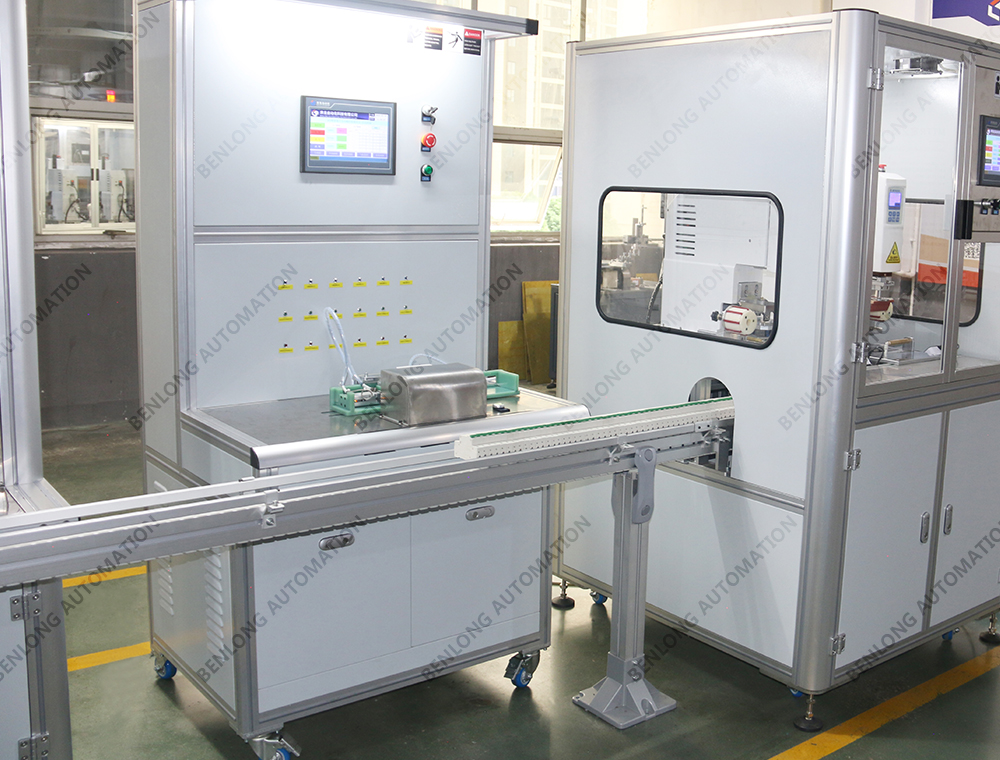

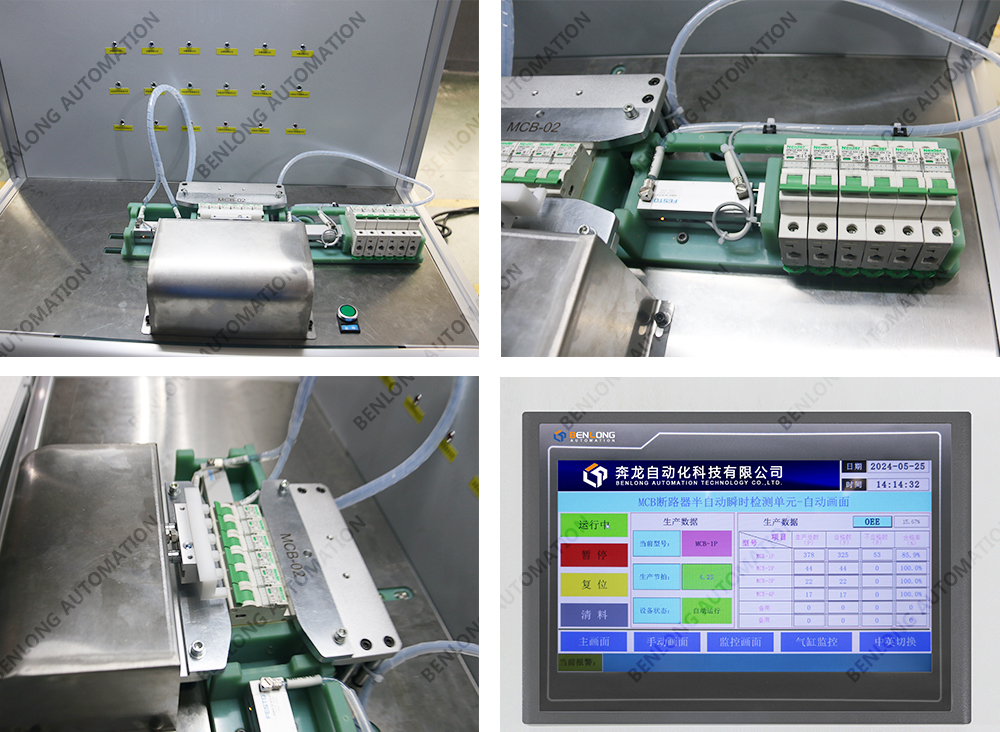

MCB semi-automatic instantaneous detection unit

Instantaneous test function: MCB semi-automatic instantaneous test equipment can quickly and accurately test the instantaneous action characteristics of MCBs, including overload and short-circuit protection.

Semi-Automatic Operation: Semi-automatic transient testing equipment may require some manual operation compared to fully automatic equipment, but still provides efficient testing and detection capabilities.
Functionality.

Versatility: In addition to instantaneous testing, some MCB semi-automatic instantaneous testing equipment may also have other functions, such as leakage protection testing, grounding testing, etc.
Flexibility

Flexibility: These devices usually have multiple test modes and parameter settings to accommodate different types and sizes of MCBs.

High accuracy: MCB semi-automatic transient testing equipment usually has high accuracy test and measurement capabilities to ensure accurate assessment of MCB performance.

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, 3 seconds per pole; Five different specifications of equipment.
4. Design multiple testing stations for the equipment, and use different station fixtures for testing different shell products; Different poles can be switched with just one click or by scanning the code.
5. Current output system: AC3~1500A or DC5~1000A, AC3~2000A, AC3~2600A can be selected according to the product model.
6. The parameters for detecting high current and low current can be set arbitrarily; Current accuracy ± 1.5%; Waveform distortion ≤ 3%
7. Release type: B type, C type, D type can be selected arbitrarily.
8. Tripping time: 1~999mS, parameters can be set arbitrarily; Detection frequency: 1-99 times. The parameter can be set arbitrarily.
9. The product can be tested horizontally or vertically as an optional option.
10. The equipment has alarm display functions such as fault alarm and pressure monitoring.
11. There are two operating systems available: Chinese and English.
12. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
13. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
14. Having independent and independent intellectual property rights
