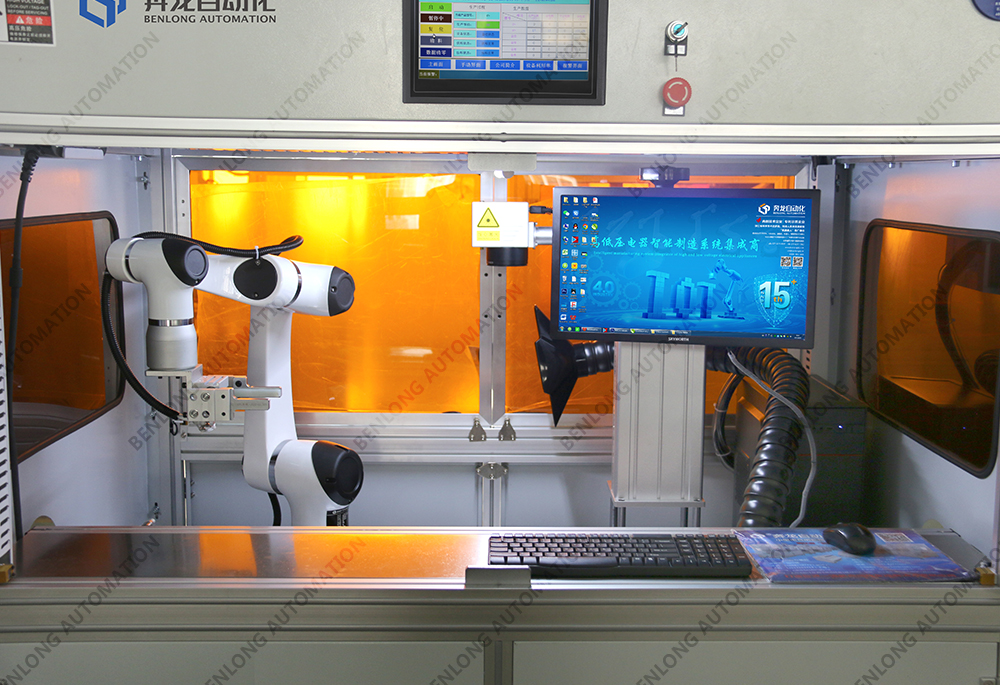

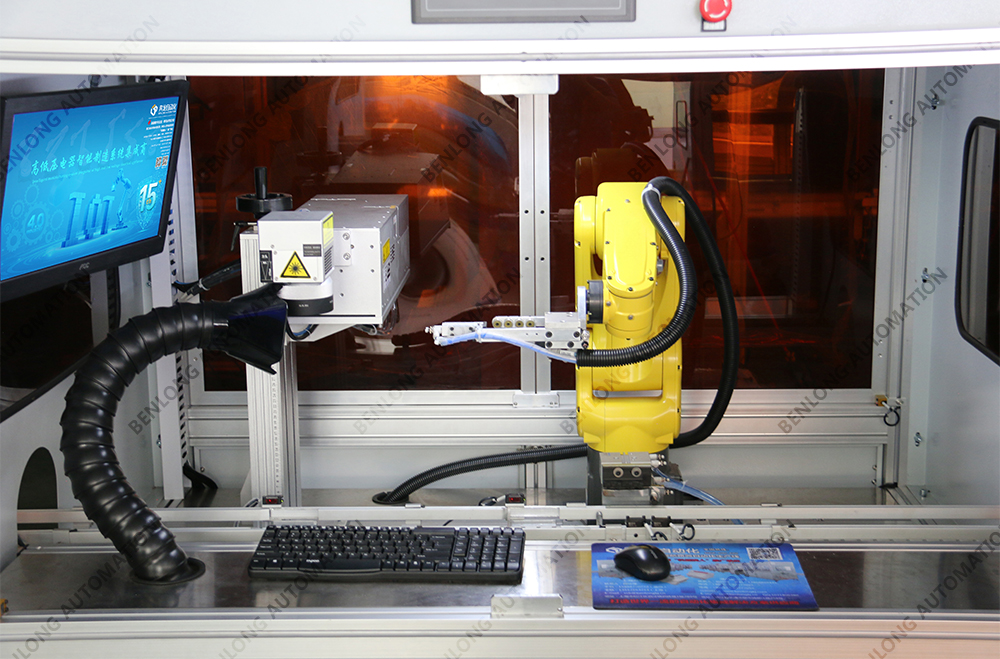

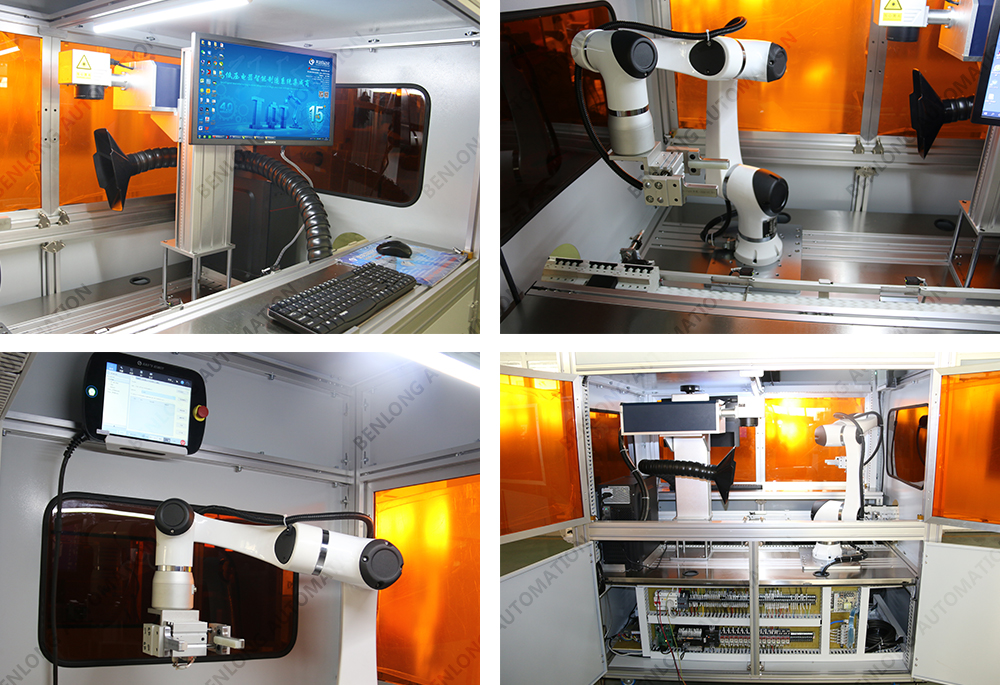

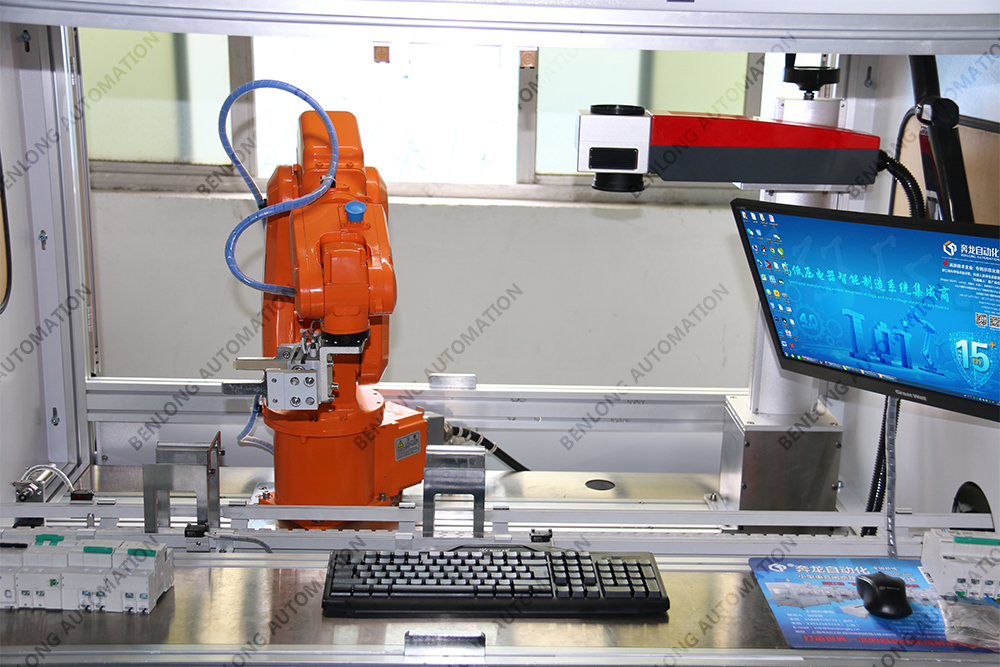

MCB Robot Automatic Laser Marking Equipment

Short Description:

Automatic Positioning: The equipment can accurately position the miniature circuit breakers to ensure the accuracy and consistency of laser marking.

Laser marking: the equipment is equipped with a laser marking system, which can accurately print these contents on the surface of the miniature circuit breakers according to the preset codes, graphics or texts. Laser technology is characterized by non-contact, high precision, high speed and durability.

Marking parameter adjustment: The equipment can adjust the laser power, speed, depth and other parameters through the control system to adapt to the marking needs of different materials and ensure that the marking effect is clearly visible and durable.

Marking Quality Inspection: The equipment can monitor the quality of marking results in real time, such as contrast, clarity and alignment, etc., through visual sensors or image acquisition systems to ensure that the marking results meet the standard requirements.

Automatic switching and adjustment: the equipment can automatically switch between different marking contents or modes according to the set program or requirements, and automatically adjust the marking position and marking parameters according to different models or specifications of miniature circuit breakers.

Send email to us

Photograph

Parameters

Video

Previous: MCB automatic labeling and sealing equipment

Next: MCB automatic pad printing, laser marking equipment

1, equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible poles: 1P, 2P, 3P, 4P, 1P + module, 2P + module, 3P + module, 4P + module
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of the equipment.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; different shell frame products need to manually replace the mold or fixture.
5、Defective product detection: CCD visual inspection.
6, laser parameters can be pre-stored in the control system, automatic retrieval marking; marking content can be edited arbitrarily.
7, the equipment for the robot automatic loading and unloading, fixture can be customized according to the product model.
8、Equipment with fault alarm, pressure monitoring and other alarm display function.
9, Chinese and English version of the two operating systems.
10、All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
11, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
12、Independent independent intellectual property rights
