MCB miniature circuit breaker integrated automated production line

Short Description:

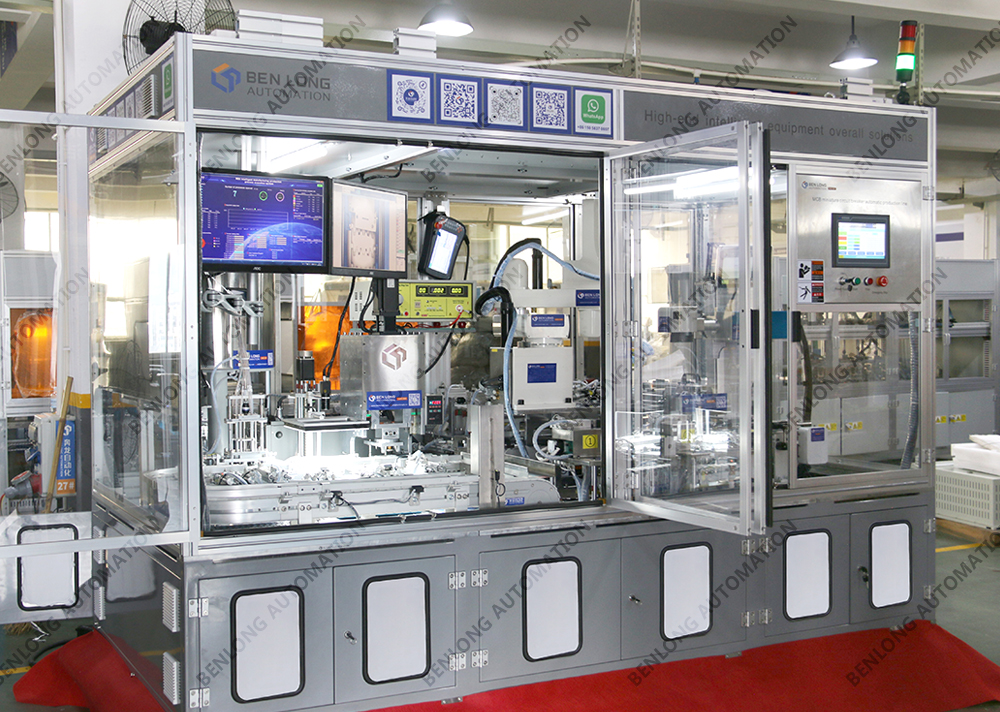

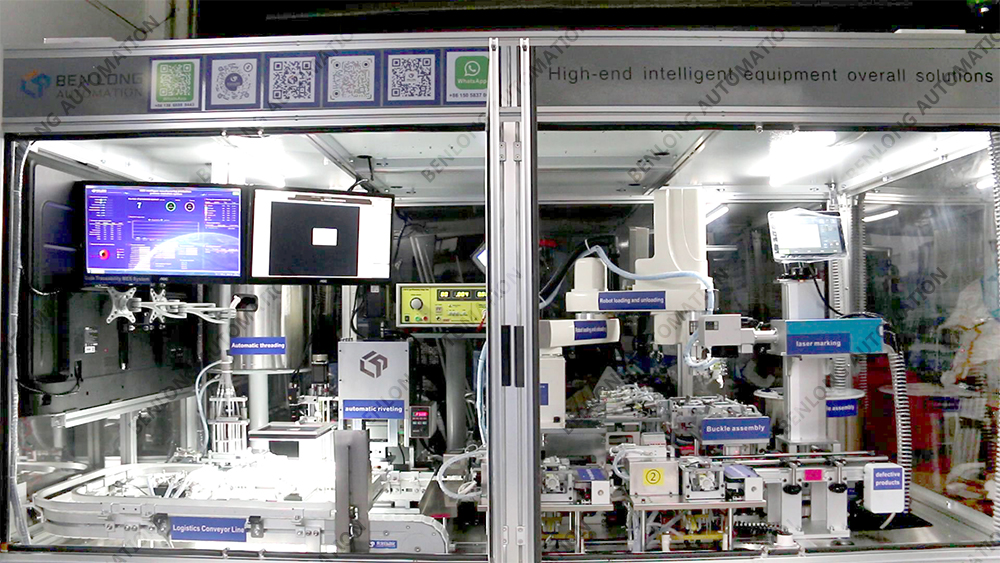

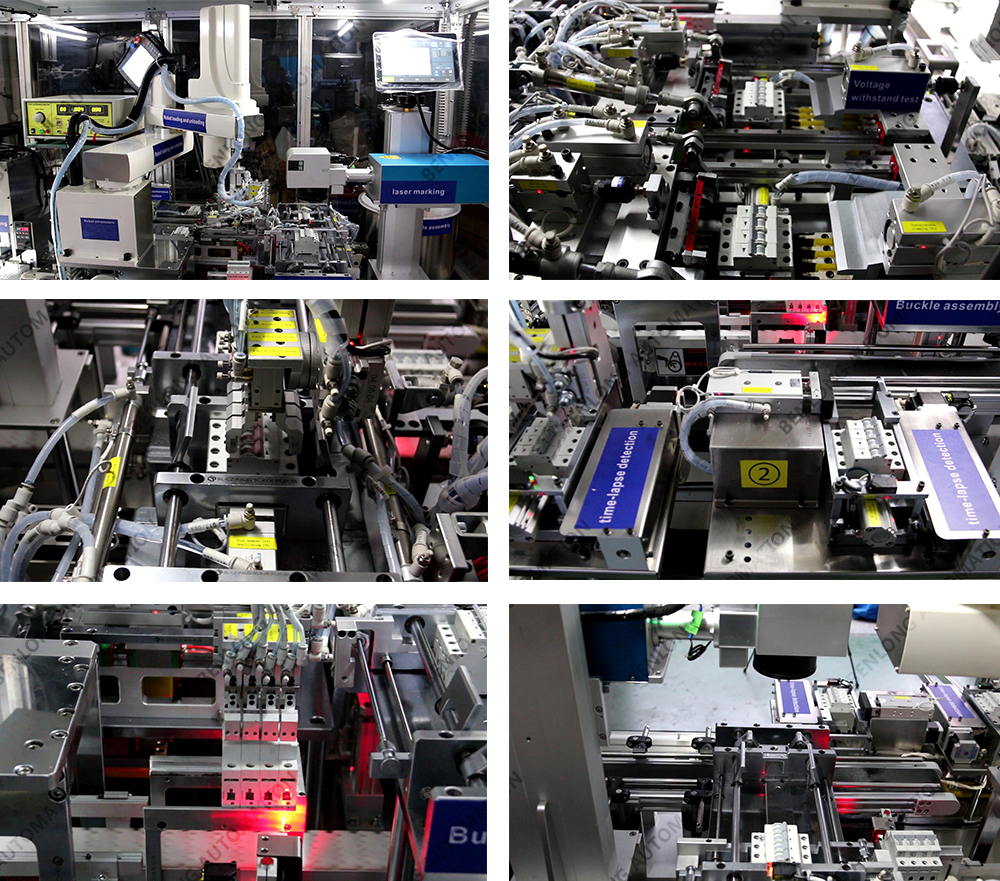

The production line realizes fully automated production, including parts conveying, assembling, testing and packaging, which improves production efficiency and reduces labor costs. The production line adopts advanced mechanical and electronic technologies with high precision and stability to ensure the quality and performance of miniature circuit breakers. The production line is equipped with fast switching function, which can easily switch the production of different models of miniature circuit breakers and improve the flexibility of the production line. The production line is equipped with a quality inspection link, which can carry out a comprehensive inspection of the performance of miniature circuit breakers to ensure that the quality of the products meets the requirements. The production line can realize real-time collection and monitoring of production data, which is convenient for enterprises to carry out production management and improve production efficiency and quality.

Send email to us

Photograph

Parameters

Video

Previous: MCB miniature circuit breaker automatic time-delay testing equipment

Next: Measurement switch automatic testing equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility: 1P, 2P, 3P, 4P, 1A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, B type, C type, D type 18 modulus or 27 modulus.
3. Equipment production rhythm/efficiency: ≤ 6 seconds/pole.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. Assembly method: manual assembly and automatic assembly can be selected at will.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
