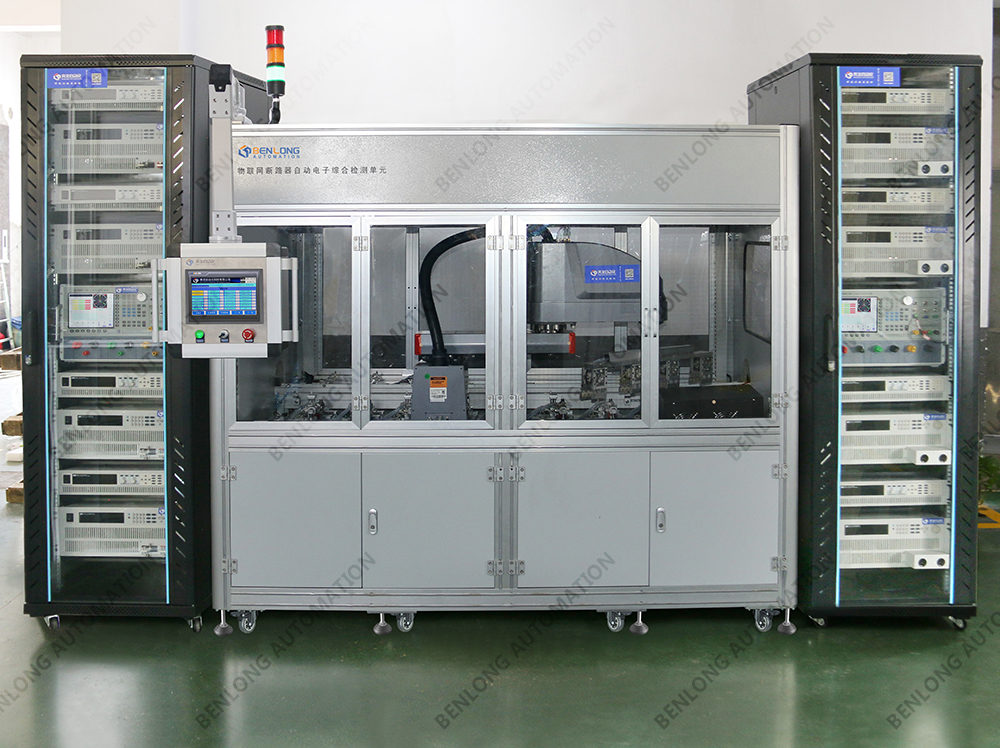

MCB IoT intelligent circuit breaker automatic electronic comprehensive testing unit

The intelligent circuit breaker automatic electronic comprehensive inspection equipment is a device used to comprehensively detect and evaluate intelligent circuit breakers. Its main functions include:

1. **Electrical performance test**: It can test the electrical performance of the circuit breaker, such as rated current, rated voltage, leakage protection, overload protection, etc., to ensure that it meets the relevant standards.

2. **Action characteristic test**: Detect the action time, tripping characteristics, etc. of the circuit breaker under different conditions, and evaluate its response ability in overload or short circuit conditions.

3. **Communication function test**: For intelligent circuit breakers, the device can test the function of its communication interface (such as RS485, Modbus, etc.) to ensure that it can communicate normally with other devices.

4. **Temperature rise test**: By simulating the load, the temperature rise of the circuit breaker in the working state is detected to ensure that it will not be damaged due to overheating during long-term use.

5. **Fault simulation**: Able to simulate various fault conditions (such as short circuit, overload, etc.) to observe the response and protection performance of the circuit breaker.

6. **Data recording and analysis**: The equipment is usually equipped with a data recording function, which can record test results, perform data analysis, and generate reports to facilitate subsequent maintenance and management.

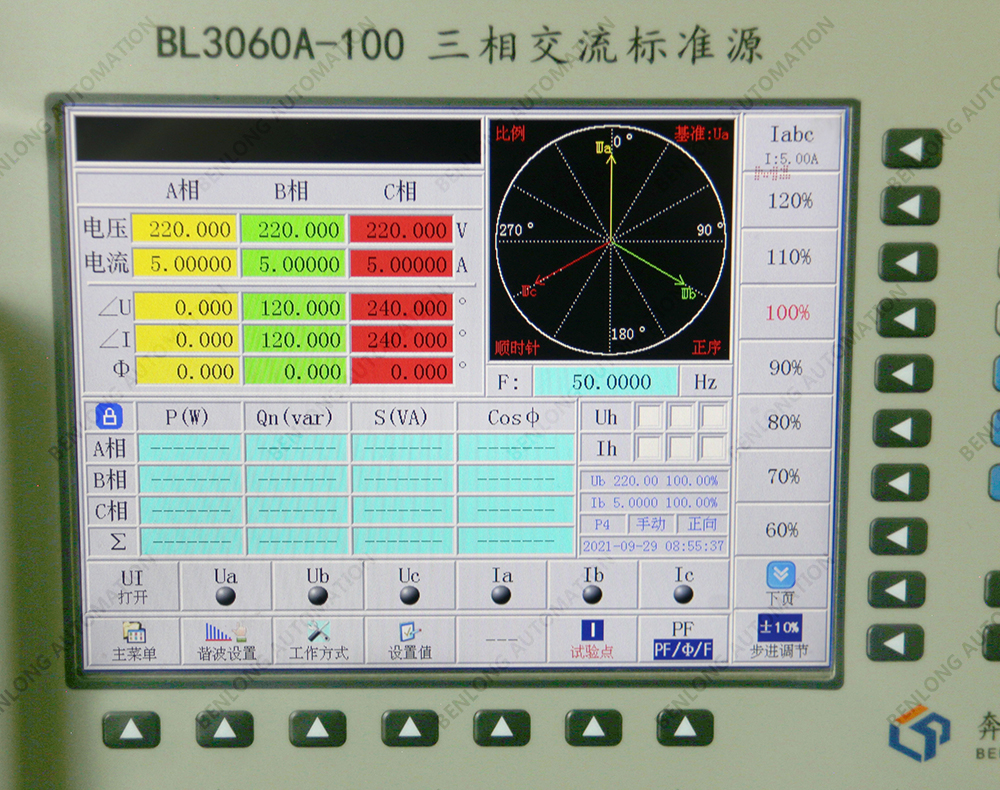

7. **User-friendly interface**: The equipment is generally equipped with a touch screen or computer interface, which is simple to operate and convenient for users to set up and view test results.

8. **Automated testing**: The equipment can realize automated testing, reduce manual intervention, and improve testing efficiency and accuracy.

9. **Multiple test modes**: Support multiple test modes to adapt to different types and brands of smart circuit breakers.

Through these functions, the intelligent circuit breaker automatic electronic comprehensive inspection equipment can effectively improve the detection efficiency and accuracy of circuit breakers and ensure the safe and reliable operation of the power system.

1. Equipment input voltage 380V ± 10%, 50Hz; ±1Hz；
2. Device compatibility poles: 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production cycle time: 30 seconds to 90 seconds per unit, specific to customer product testing items.
4. The same shelf product can be switched with one click or scan the code to switch between different pole numbers; Different shell products require manual replacement of molds or fixtures.
5. Compatible product types: 1P/1A, 1P/6A, 1P/10A, 1P/16A, 1P/20A, 1P/25A, 1P/32A, 1P/40A, 1P/50A, 1P/63A, 1P/80A, 2P/1A, 2P/16A, 2P/20A, 2P/22A, 2P/40A, 2P/63A, 2P/80A, 3P/1A, 3P/10A, 3P/16A, 3P/20A, 3P/32A, 3P/40A, 3P/63A, 3P/80A, 4P/1A, 4P/6A, 4P/10A, 4P/10A, 4P/10A, 4P There are 132 specifications for leakage characteristics of AC circuit breakers, including 16A, 4P/20A, 4P/25A, 4P/40A, 4P/63A, 4P/80A, B type, C type, D type, A-type leakage characteristics, AC type leakage characteristics, AC circuit breakers without leakage characteristics, and DC circuit breakers without leakage characteristics. A total of ≥ 528 specifications are available for selection.
6. The device can detect products from 1 to 99999 times, which can be set arbitrarily.

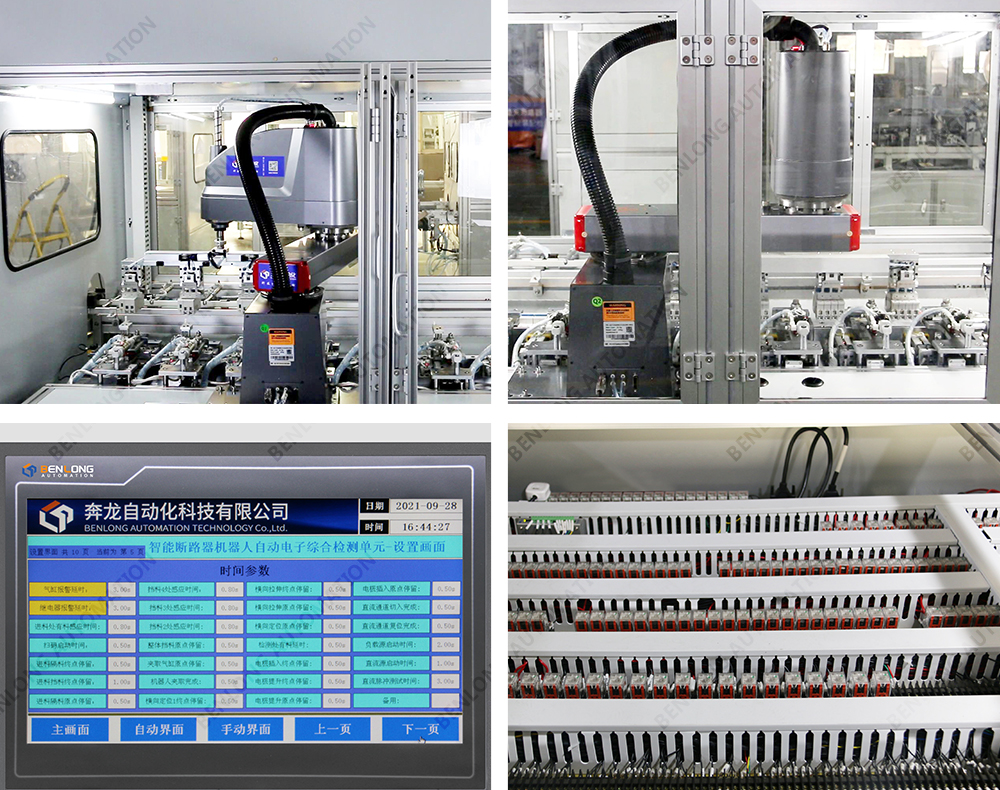

7. The loading and unloading methods of this device are available in two options: robot or pneumatic finger.
8. Accuracy of equipment and instruments: in accordance with relevant national standards.
9. The equipment has alarm display functions such as fault alarm and pressure monitoring.
10. There are two operating systems: Chinese version and English version.
11. All core components are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
12. The device can be equipped with functions such as “Smart Energy Analysis and Energy Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
13. Having independent and proprietary intellectual property rights
