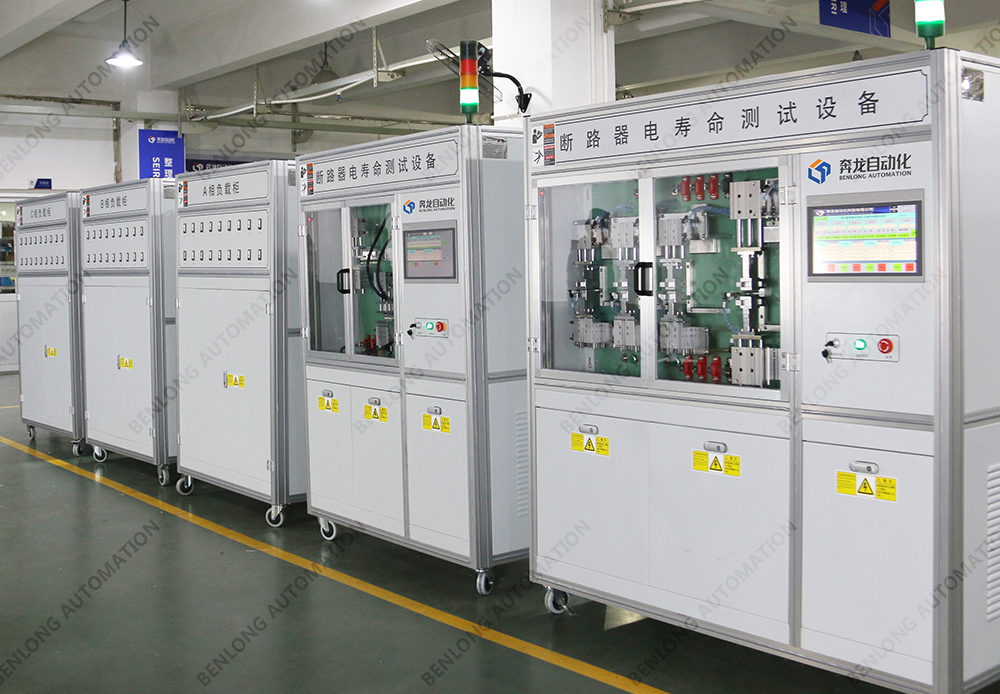

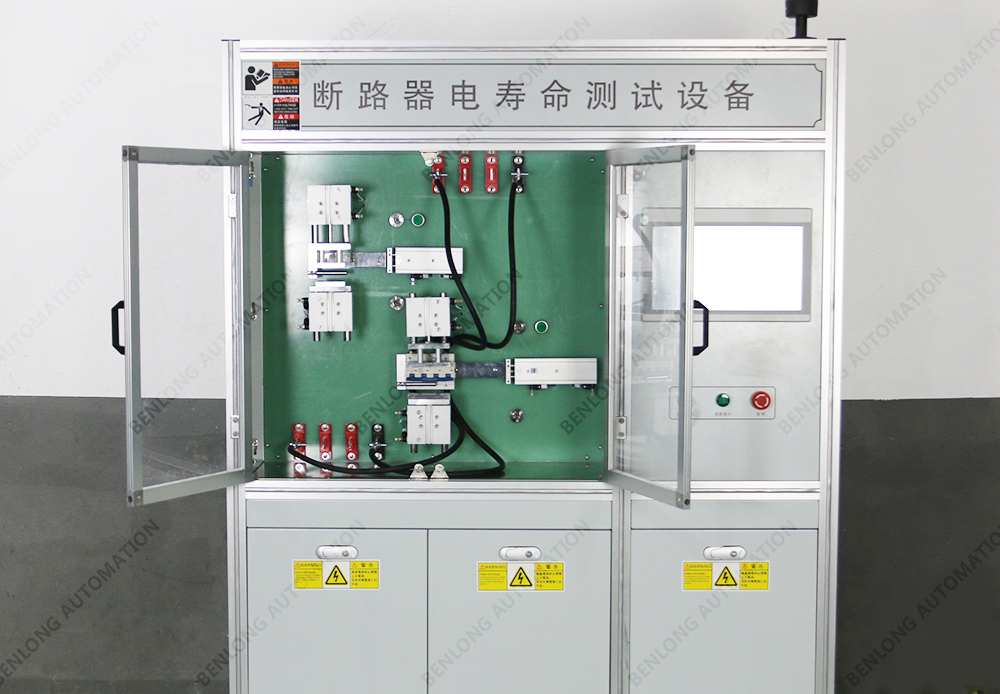

MCB Electrical Life Testing Equipment A

Short Description:

The equipment is suitable for MCB, RCCB, RCBO and other electrical devices ranging from 1P to 4P, meeting the testing requirements of various specifications and types.
The design and manufacturing of the equipment follow the latest international and national standards, such as GB/T14048.2-2020 Low voltage switchgear and control equipment Part 2: Circuit breakers, and are also compatible with the corresponding test content required by UL1077 standard to ensure the accuracy and effectiveness of the testing.

Send email to us

Photograph

parameter

Video

MCB (miniature circuit breaker) electrical life detection equipment is a professional testing device designed for electrical equipment such as MCB, RCCB (residual current operated circuit breaker), RCBO (residual current operated circuit breaker with overcurrent protection), etc. Its main functions include:

Previous: Electricity meter Smart meter 12-station semi-automatic initial calibration unit

Next:

1. Equipment input voltage 380V ± 10%, 50Hz; ±1Hz；
2. Different shell products and models can be manually switched or switched with one click or scanned code; Switching between products of different specifications requires manual replacement/adjustment of molds or fixtures.
3. Testing methods: manual clamping, automatic testing.
4. The equipment test fixture can be customized according to the product model.
5. The equipment has alarm display functions such as fault alarm and pressure monitoring.
6. There are two operating systems: Chinese version and English version.
7. All core accessories are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan, China and other countries and regions.
8. The device can be equipped with functions such as “Smart Energy Analysis and Energy Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
9. Having independent and proprietary intellectual property rights.

Electrical life test
