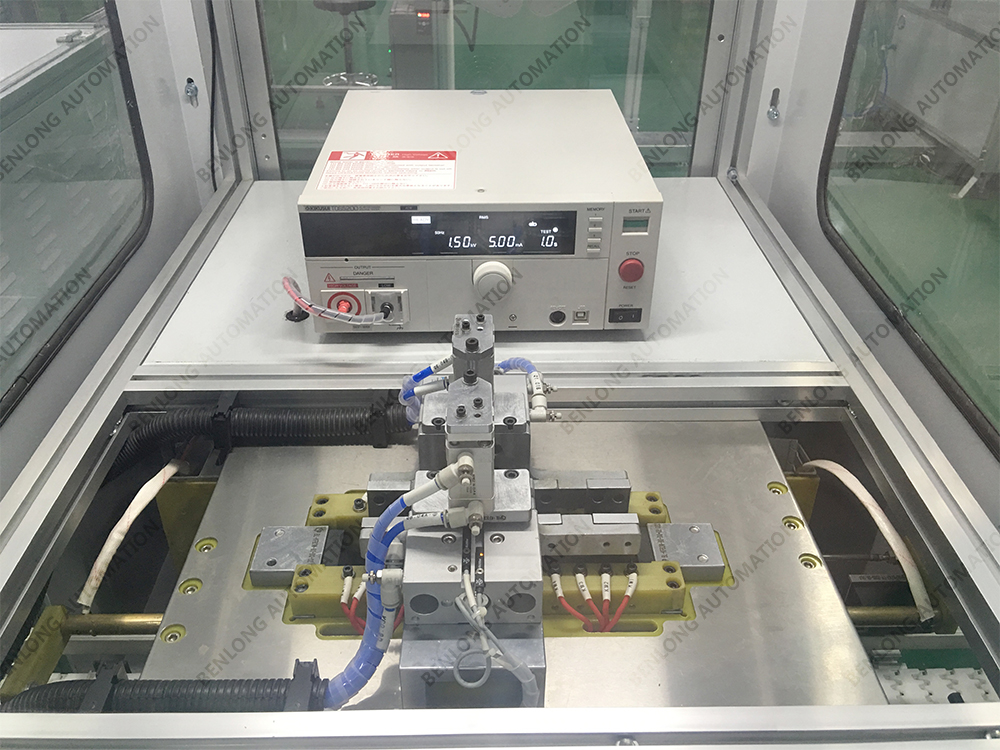

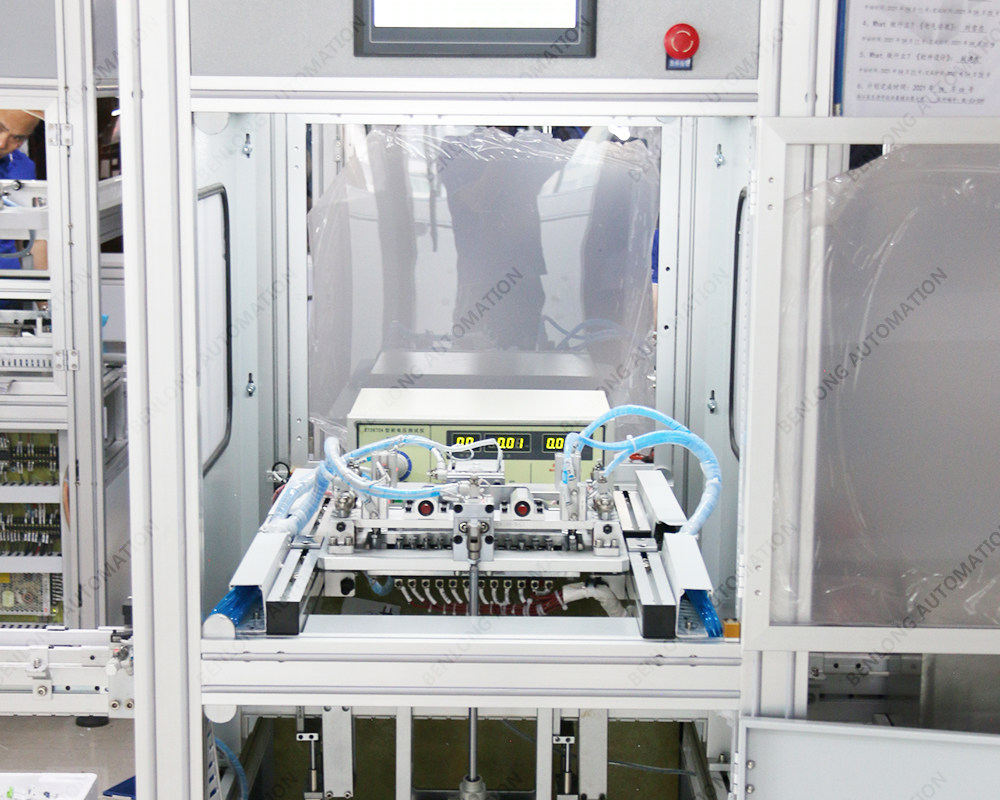

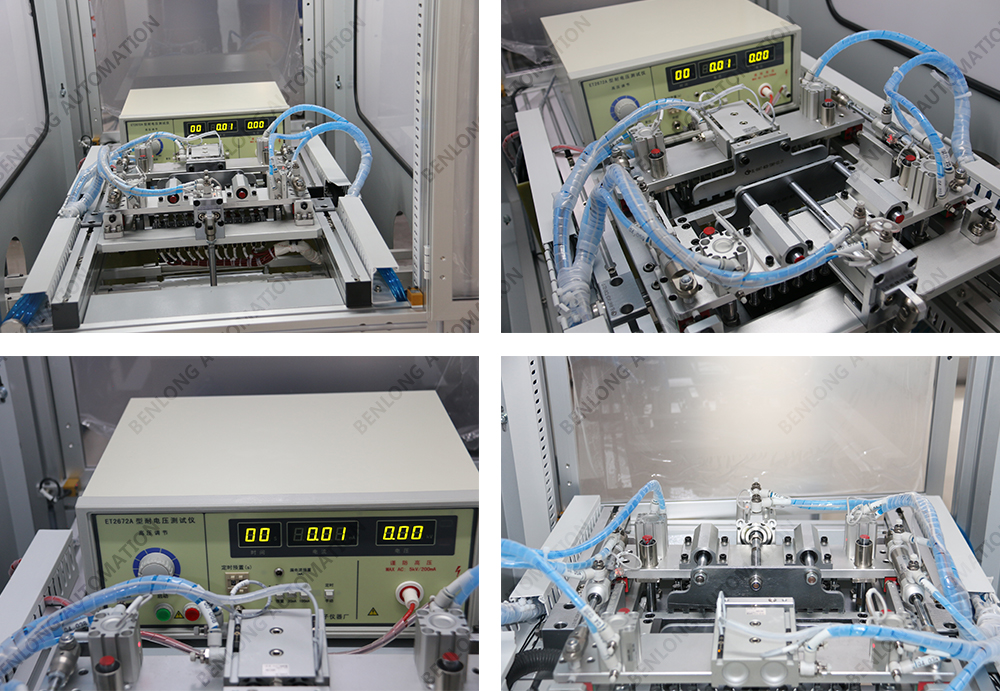

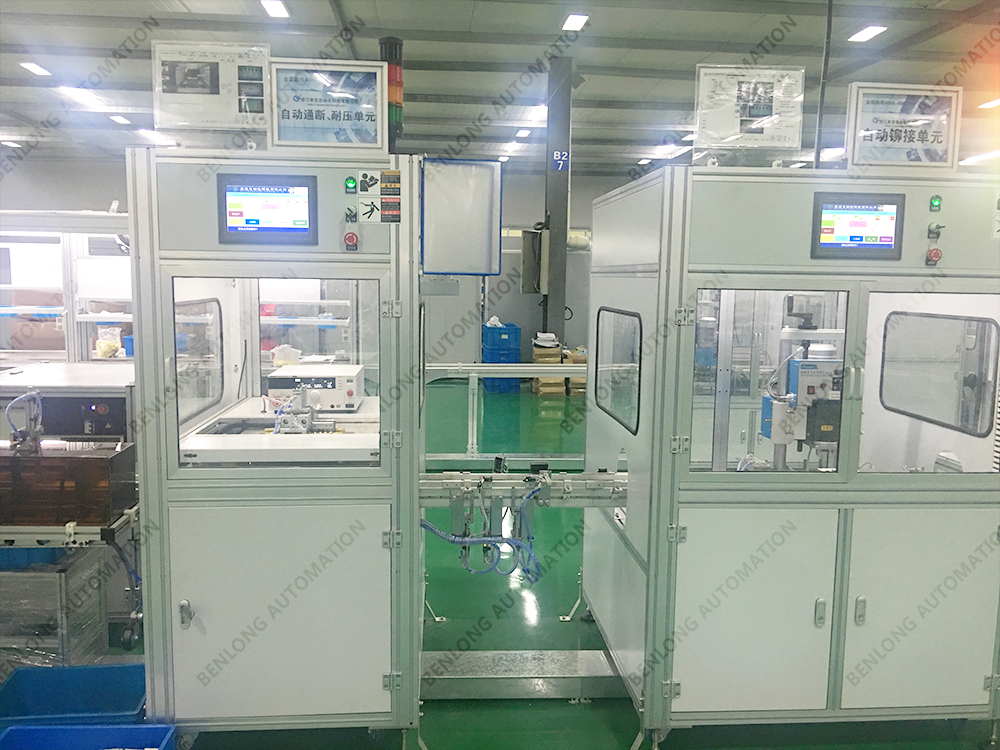

MCB automatic withstand voltage testing equipment

Short Description:

Automatic Withstand Pressure Test: The equipment is able to automatically conduct withstand pressure test on MCB miniature circuit breakers. By applying a certain voltage or current, the equipment can detect the circuit breaker’s ability to withstand pressure under pressure.

Pressure withstand parameter control: the equipment can control the pressure withstand test according to the set parameters. Parameters such as test voltage and current can be set to ensure the accuracy and reliability of the test.

Evaluation of results: The equipment can evaluate the circuit breaker according to the results of the pressure withstand test. It can measure whether the electrical performance of the circuit breaker meets the requirements after the withstand-voltage test and judge whether it is qualified.

Record and Report Generation: The equipment can record and save the data of the withstand voltage test and generate the corresponding test report. Including the time, voltage, current and other parameters of the test, as well as the test results of the circuit breaker. These data and reports can be used for quality control and traceability.

Alarm and Protection Function: When there is an abnormal situation in the voltage withstand test of the circuit breaker, the equipment will issue an alarm signal to remind the operator to take corresponding measures. At the same time, the equipment can also prevent the circuit breaker from being damaged during the testing process through protection measures.

Send email to us

Photograph

Parameters

Video

Previous: MCB automatic screw torque testing equipment

Next: MCB automatic instantaneous, on-off, voltage withstand testing equipment

1, equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible poles: 1P, 2P, 3P, 4P, 1P + module, 2P + module, 3P + module, 4P + module
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of the equipment.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; different shell frame products need to manually replace the mold or fixture.
5, high-voltage output range: 0 ~ 5000V; leakage current of 10mA, 20mA, 100mA, 200mA graded selectable.
6, detection of high-voltage insulation time: 1 ~ 999S parameters can be set arbitrarily.
7, detection times: 1 ~ 99 times parameters can be set arbitrarily.
8, high-voltage detection parts: when the product is in the closing state, detect the withstand voltage between the phase and the phase; when the product is in the closing state, detect the withstand voltage between the phase and the base plate; when the product is in the closing state, detect the withstand voltage between the phase and the handle; when the product is in the breaking state, detect the withstand voltage between the inlet and outlet lines.
9, the product is in the horizontal state detection or the product is in the vertical state detection can be optional.
10、Equipment with fault alarm, pressure monitoring and other alarm display functions.
11, Chinese and English version of the two operating systems.
12、All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
13, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
14、It has independent independent intellectual property rights
