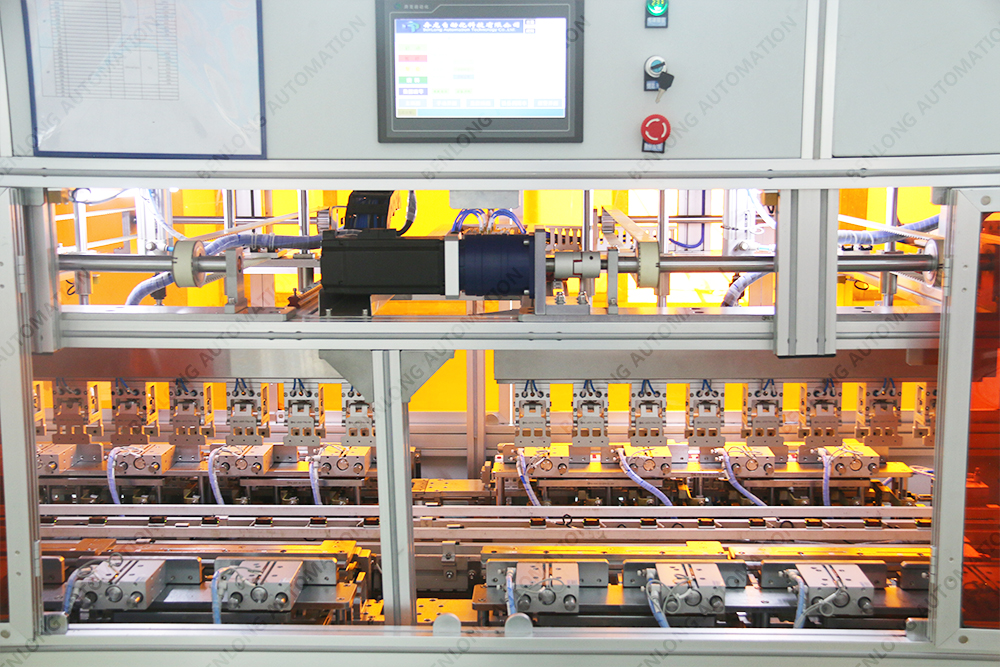

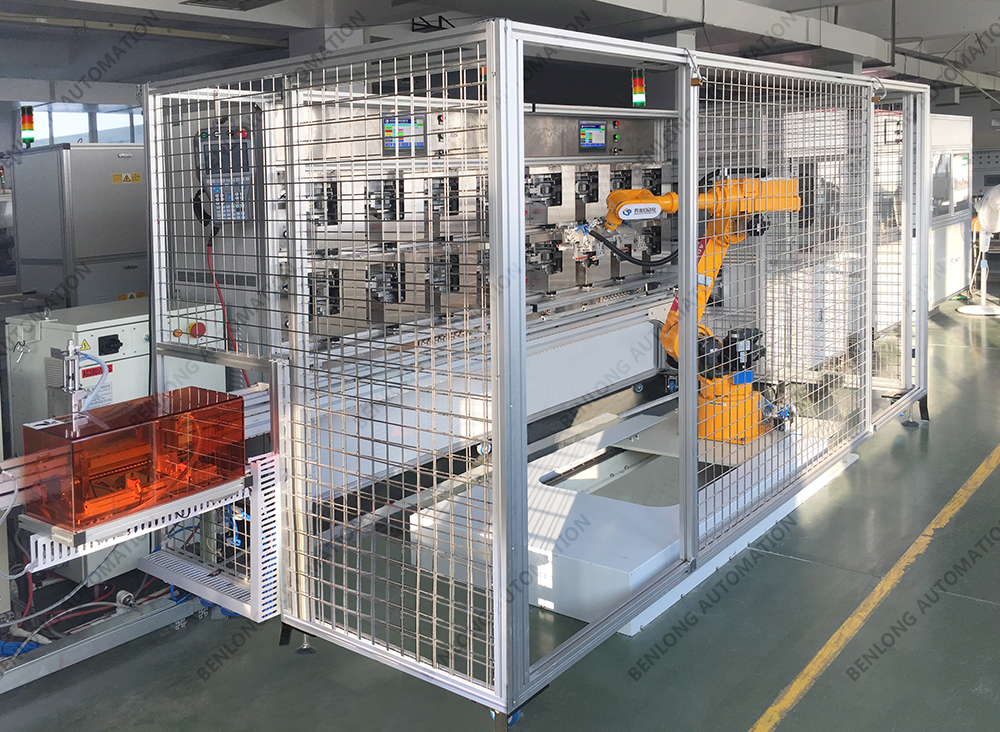

MCB automatic time-delay testing equipment

Short Description:

Automatic time-delay detection: The device is capable of automatic time-delay for circuit breaker detection according to the set time parameter. During the set delay time, the device will monitor the working status and current load of the circuit breaker.

Detecting current load: the device can detect the current load of the circuit connected to the circuit breaker in real time. By monitoring the current load, the device can determine whether there is overload, short circuit and other abnormal conditions.

Alarm Function: When the device detects abnormal conditions (such as overload, short circuit, etc.) in the circuit connected to the circuit breaker, it will send out an alarm signal to remind the operator to take corresponding measures.

Fault diagnosis: the equipment can carry out fault diagnosis according to the operating data and abnormal conditions of the circuit breaker, helping the operator to quickly locate the problem and take appropriate measures to solve it.

Data Recording and Analysis: The equipment can record and save the working data of the circuit breaker, including current load, working status and so on. By analyzing these data, the working condition of the circuit breaker can be understood, and prediction and optimization can be carried out.

Send email to us

Photograph

Parameters

Video

Previous: MCB Automatic Circulating Cooling Equipment

Next: MCB automatic screw torque testing equipment

1, equipment input voltage 220V/380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible poles: 1P, 2P, 3P, 4P, 1P + module, 2P + module, 3P + module, 4P + module
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole, 4 seconds / pole; six different specifications of the equipment.
4, the same shell frame products, different poles can be a key to switch or sweep code switch can be; different shell frame products need to manually replace the mold or fixture.
5、The number of detecting fixture is 8 integer times, and the size of fixture can be customized according to the product model.
6, detection current, time, speed, temperature coefficient, cooling time and other parameters can be set arbitrarily.
7、Equipment with fault alarm, pressure monitoring and other alarm display functions.
8, Chinese version and English version of the two operating systems.
9、All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
11、Independent independent intellectual property rights
