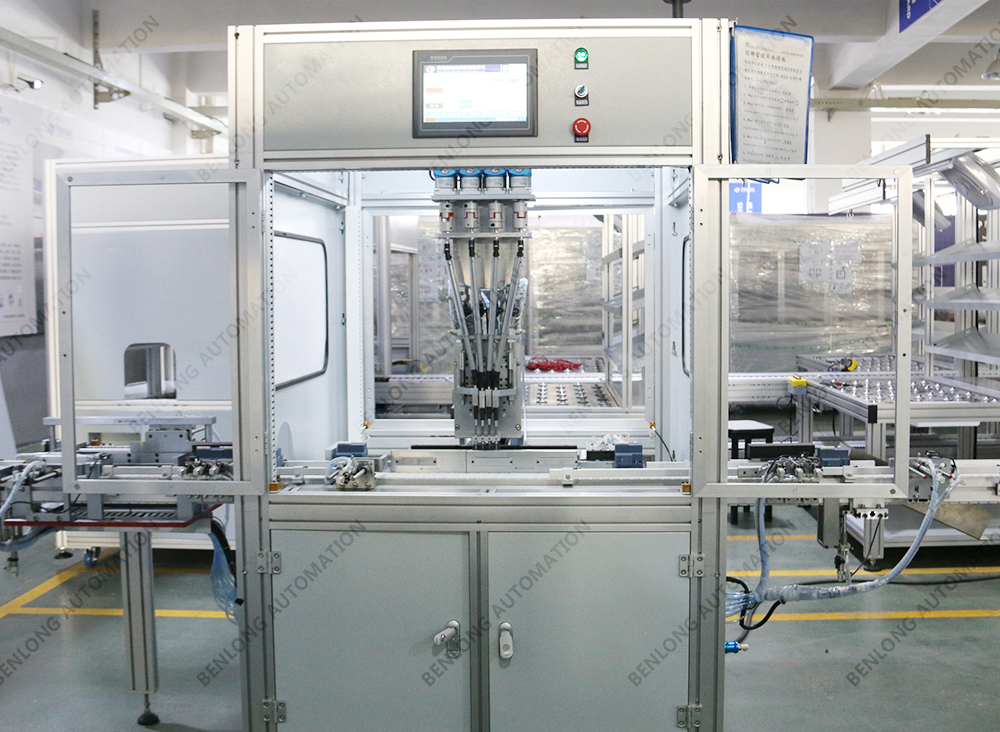

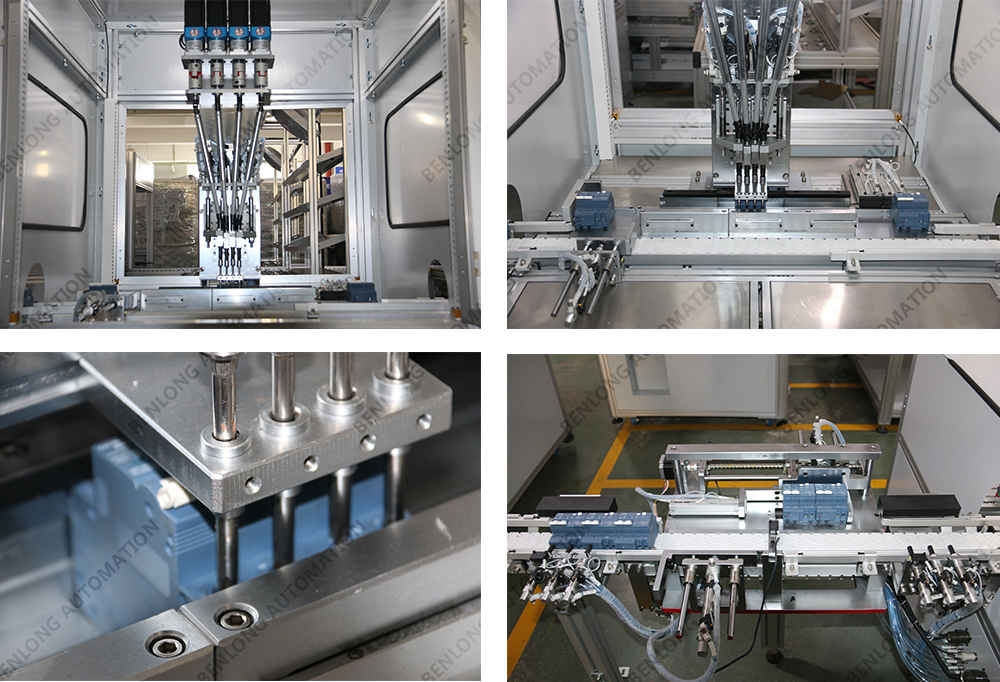

MCB automatic screw torque testing equipment

Short Description:

Automatic torque detection: The equipment can automatically detect the torque of MCB miniature circuit breaker screws. By measuring the torque of the screws, the equipment can determine whether the screws are loose or too tight.

Torque adjustment: the device can adjust the screws according to the set torque parameters. When the screws are detected to be loose or too tight, the equipment can automatically make adjustments to ensure that the screws have the right torque.

Accuracy Assurance: The equipment is equipped with high-precision torque detection and adjustment functions to ensure that the torque of the screws meets the specified requirements. Equipment failure or unsafe conditions caused by loose screws can be avoided through the detection and adjustment of the equipment.

Data Recording and Analysis: The equipment is capable of recording and storing data on the torque of the screws, including the torque values before and after the test. These data can be analyzed to understand the working status and changes of the screws.

Alarm function: When the equipment detects the existence of abnormalities (such as loosening or over-tightening) in the screws of MCB miniature circuit breakers, it will send out an alarm signal to remind the operator to take appropriate measures.

Send email to us

Photograph

Parameters

Video

Previous: MCB automatic time-delay testing equipment

Next: MCB automatic withstand voltage testing equipment

1, equipment input voltage 220V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible poles: 1P, 2P, 3P, 4P, 1P + module, 2P + module, 3P + module, 4P + module.
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of equipment.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; different shell frame products need to manually replace the mold or fixture.
5, torque mode: servo motor, torque electric screwdriver two optional.
6、Equipment fixture can be customized according to the product model.
7、Equipment with fault alarm, pressure monitoring and other alarm display function.
8, Chinese and English version of the two operating systems.
9, all core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
11、Independent independent intellectual property rights
