MCB automatic riveting equipment

Short Description:

Automatic loading: The equipment can automatically and accurately load the miniature circuit breakers to be riveted into the working position, improving the production efficiency.

Riveting operation: the equipment can automatically carry out the riveting operation of the circuit breaker, including the steps of pressing in, pressing together and fixing to ensure the riveting quality and stability.

Riveting position control: the equipment can precisely control the riveting position of the circuit breaker to ensure the accuracy and consistency of riveting.

Automatic detection: The equipment can automatically detect the parameters and results of the riveting process, such as pressure, press depth and fixing force, to ensure the good quality of riveting.

Abnormal Handling: The equipment can automatically identify and handle abnormalities in the riveting process, such as breakers not properly loaded, riveting failure, etc., reducing operator intervention and troubleshooting time.

Data Recording: The equipment can record the data during the riveting process, such as time, serial number, riveting quality, etc., in order to facilitate quality traceability and quality control.

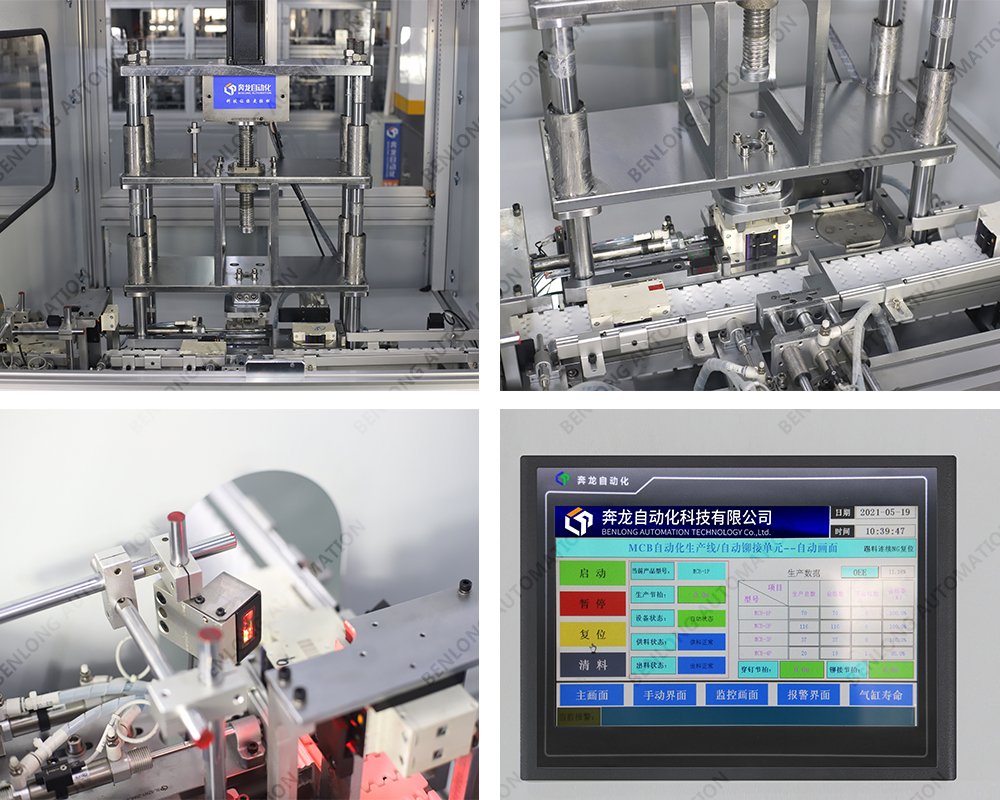

Operator Interface: The equipment has an intuitive and simple operator interface, which is convenient for operators to set, monitor and control.

Send email to us

Photograph

Parameters

Video

Previous: MCB Automatic Side Pad Printing Machine

Next: MCB automatic piercing and riveting equipment

1, equipment input voltage 220V/380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible with the number of poles: 1P, 2P, 3P, 4P, 5P
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of the device.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; different shell frame products need to manually replace the mold or fixture.

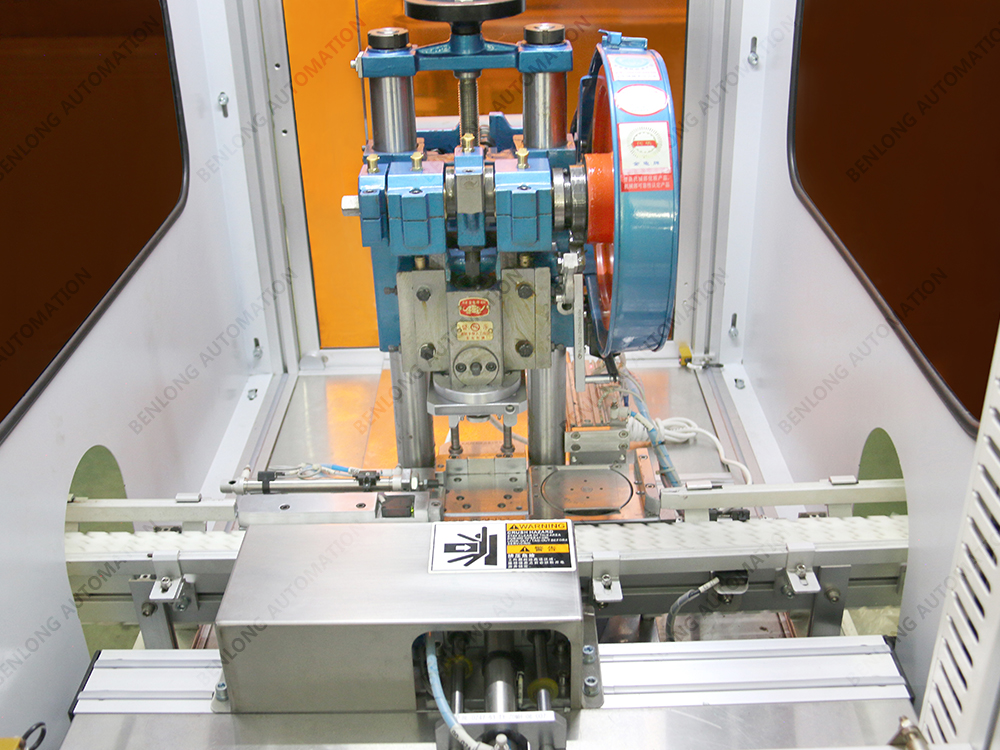

5, riveting form for the cam riveting and servo riveting two optional.
6, riveting speed parameters can be set arbitrarily; the number of rivets and molds can be customized according to the product model.
7、Equipment with fault alarm, pressure monitoring and other alarm display function.
8, Chinese and English version of the two operating systems.
9、All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
11、Independent independent intellectual property rights
