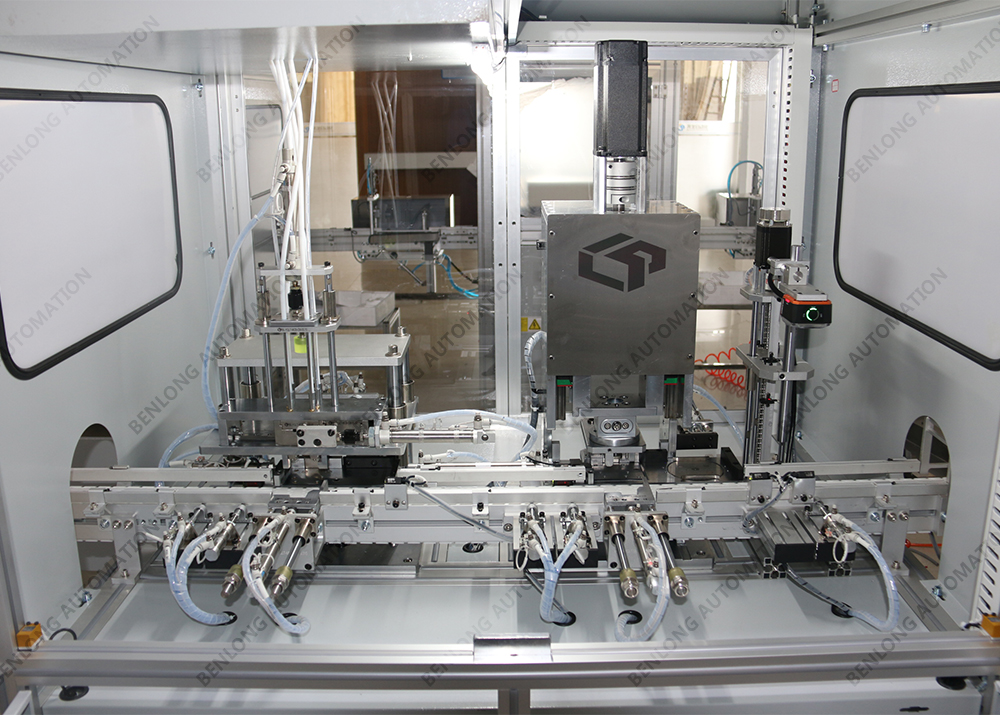

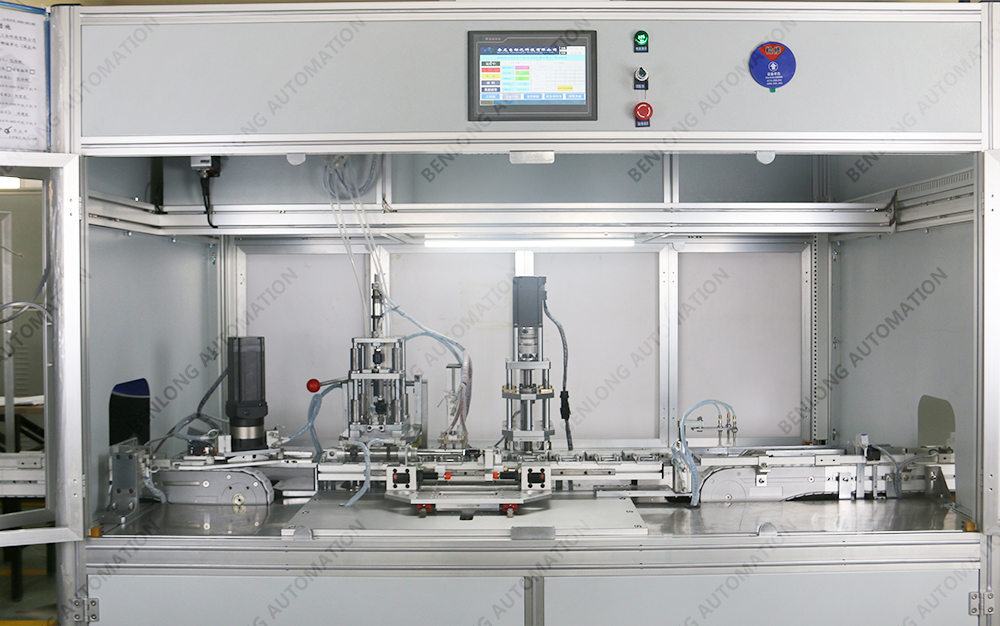

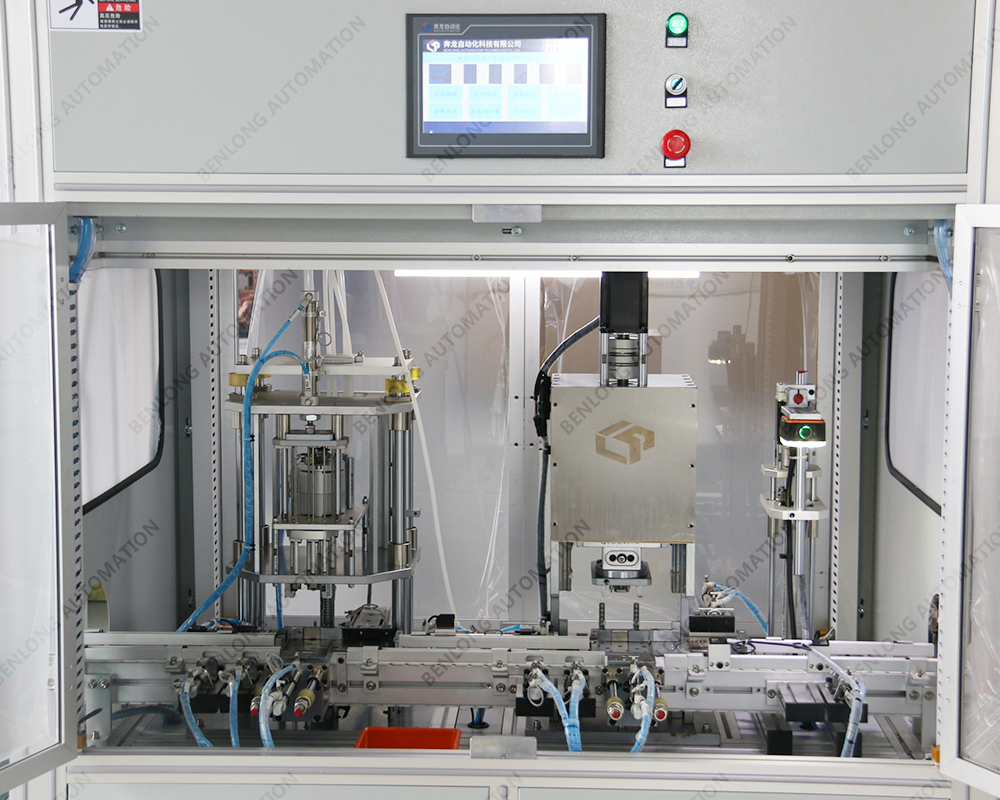

MCB automatic piercing and riveting equipment

Short Description:

Automatic loading: the equipment can automatically and accurately load the MCB miniature circuit breakers to be pierced and riveted to the working position, which improves the production efficiency.

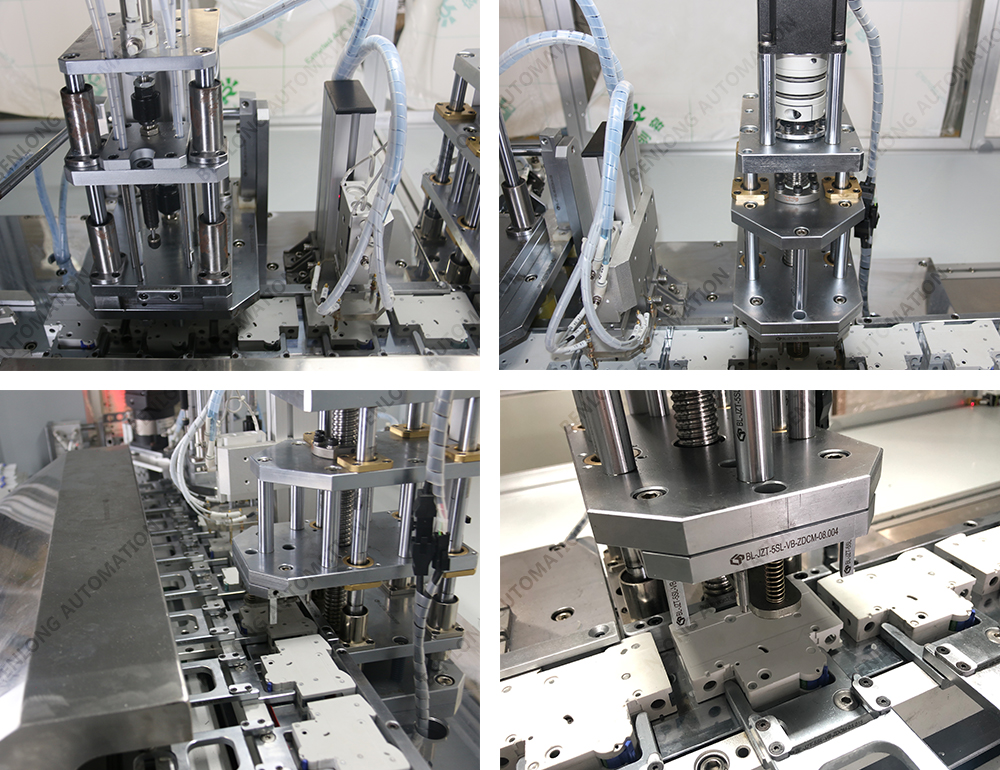

Nailing and riveting operation: the equipment can automatically carry out the nailing and riveting operation of MCB, including drilling, nailing and riveting steps, to ensure the quality and stability of nailing.

Drilling control: The equipment can precisely control the drilling position and depth to ensure the accuracy and consistency of piercing.

Drilling Cooling: The machine can cool the drilling tool through the cooling system to reduce tool wear and prolong the service life.

Nail piercing control: The equipment can accurately control the speed and strength of nail piercing to ensure the firmness and consistency of nail piercing.

Riveting control: The equipment can accurately control the riveting strength and pressure depth to ensure the quality and stability of riveting.

Automatic identification: the equipment can automatically identify the riveted and unriveted miniature circuit breakers to ensure that each circuit breaker has completed the riveting operation.

Automatic troubleshooting: The equipment has fault detection and automatic troubleshooting functions, which can automatically identify and deal with abnormalities in the process of piercing and riveting, such as failure to pierce the nails, poor piercing, unstable riveting and so on.

Send email to us

Photograph

Parameters

Video

Previous: MCB automatic riveting equipment

Next: MCB Automatic Nail Threading Equipment

1, equipment input voltage 220V/380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible with the number of poles: 1P, 2P, 3P, 4P, 5P
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of the device.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; different shell frame products need to manually replace the mold or fixture.
5、Rivet feeding mode is vibrating plate feeding; noise ≤ 80db; rivet quantity and mold can be customized according to product model.
6、The speed and vacuum parameter of the nail splitting mechanism can be set arbitrarily.
7、Rivet pressure in the form of cam riveting and servo riveting two optional.
8, riveting speed parameters can be set arbitrarily.
9、Equipment with fault alarm, pressure monitoring and other alarm display function.
10, Chinese and English version of the two operating systems.
11、All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
12, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
13、It has independent independent intellectual property rights
