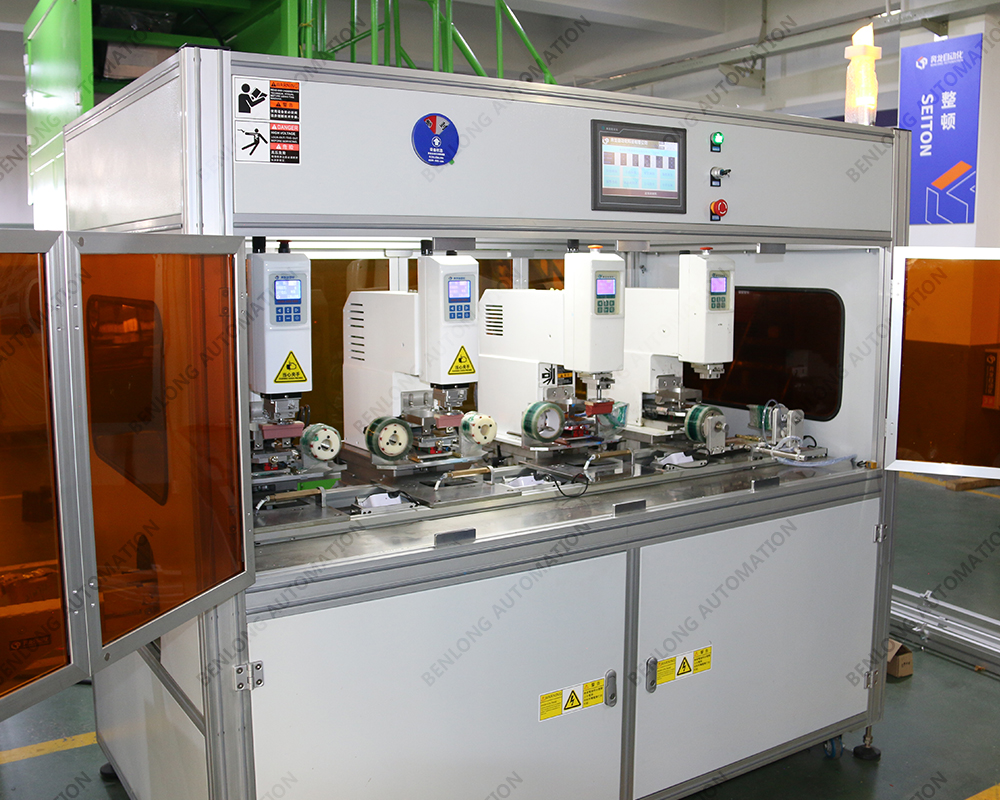

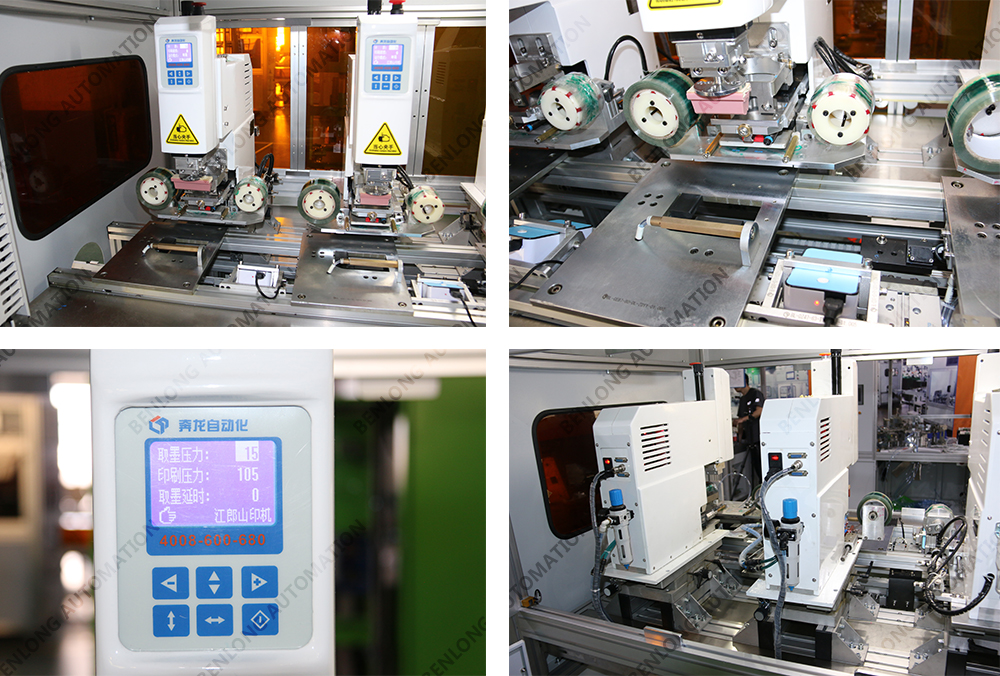

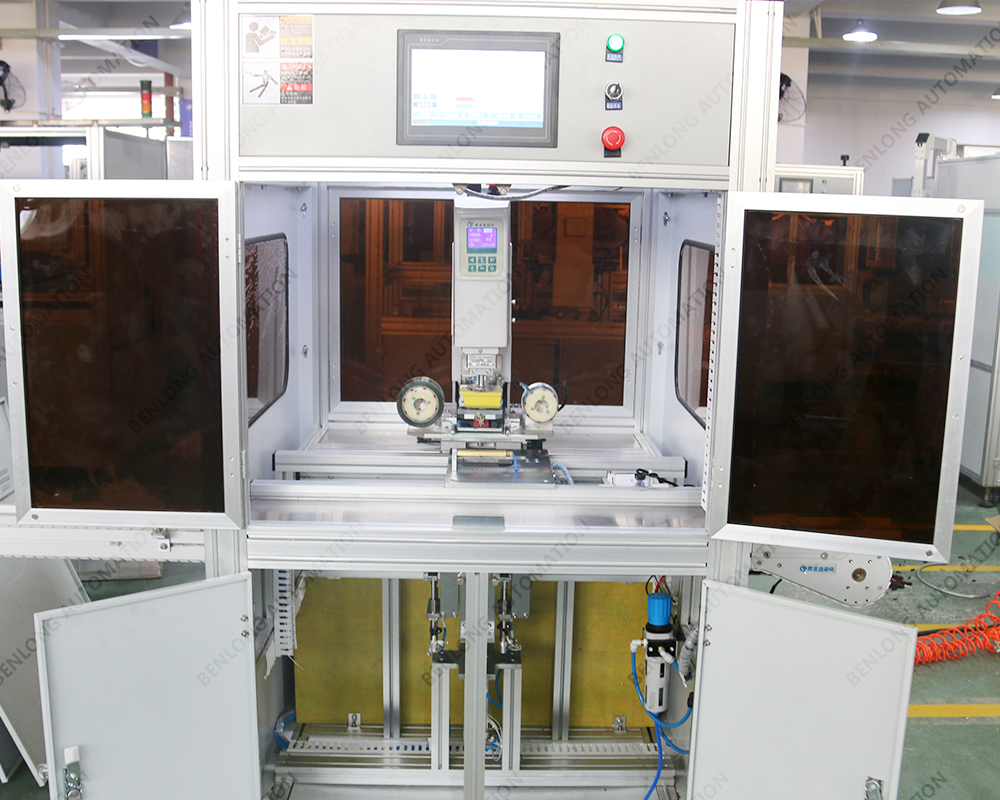

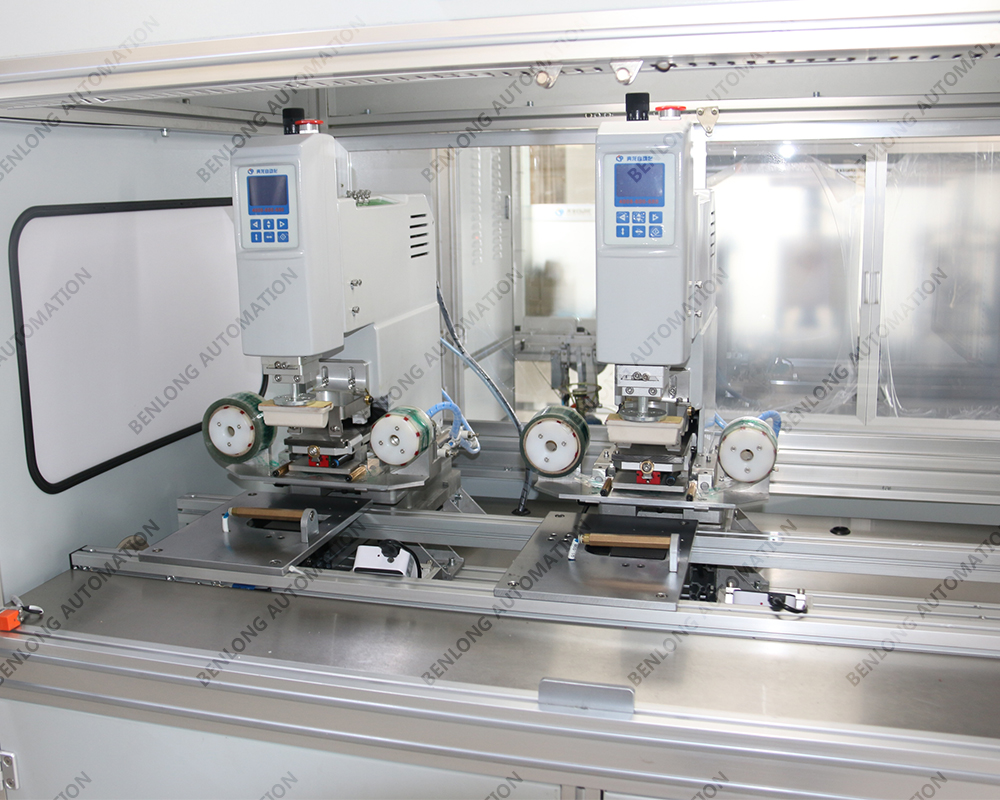

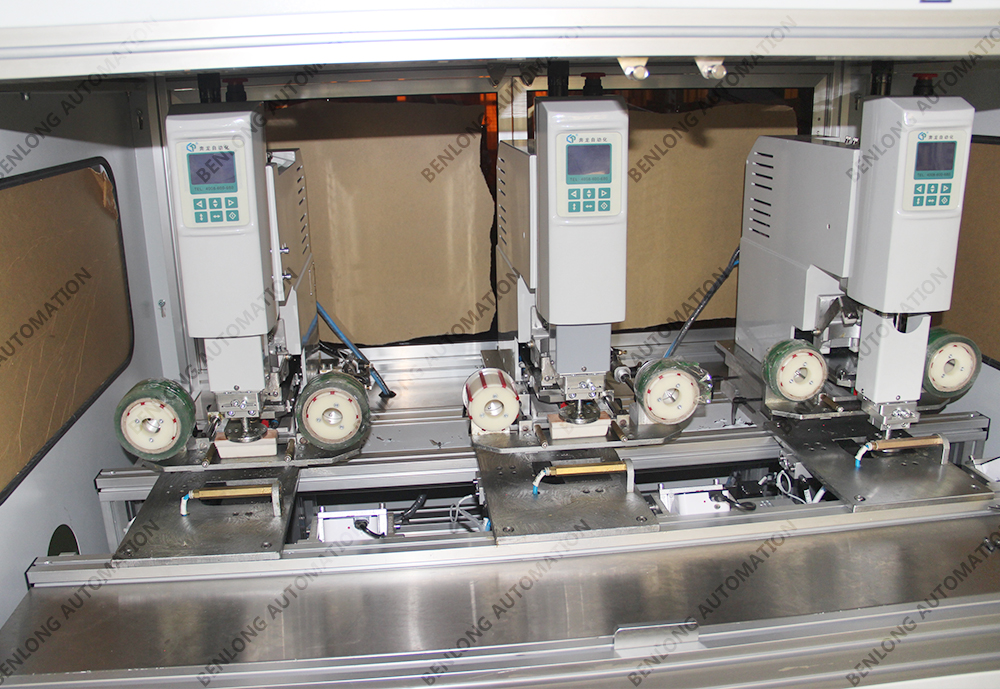

MCB Automatic Pad Printing Equipment

Short Description:

Automatic Positioning: The equipment has the ability to automatically recognize and position the miniature circuit breakers to ensure pad printing accuracy and consistency.

Pad Printing Function: The equipment can pad print pre-set patterns, logos or text onto the surface of miniature circuit breakers. The pad printing method can be one-time or continuous to meet different production needs.

Automatic control: the equipment is equipped with an automatic control system, which can automatically carry out the pad printing operation and monitor the pad printing quality according to the set parameters and rules.

High-precision pad printing: the equipment has high-precision pad printing capability, which can realize fine pattern and text pad printing and ensure product quality.

Adjustability: the equipment can adjust the pad printing speed, pad printing pressure and other parameters, in order to adapt to different materials and requirements of the pad printing effect.

Through the functions of MCB miniature circuit breaker automatic pad printing equipment, manufacturers can improve production efficiency, reduce labor input, ensure the accuracy and consistency of pad printing, thus improving product quality and customer satisfaction.

Send email to us

Photograph

Parameters

Video

Previous: MCB automatic pad printing, laser marking equipment

Next: MCB automatic assembly stop equipment

1, equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible poles: 1P, 2P, 3P, 4P, 1P + module, 2P + module, 3P + module, 4P + module
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of the equipment.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; different shell frame products need to manually replace the mold or fixture.
5、Defective product detection: CCD visual inspection.
6, pad printing machine for environmental protection pad printing machine, comes with cleaning system and X, Y, Z adjustment mechanism.
7、Equipment with fault alarm, pressure monitoring and other alarm display function.
8, Chinese version and English version of the two operating systems.
9、All core parts are imported from different countries and regions, such as Italy, Sweden, Germany, Japan, the United States, Taiwan and so on.
10, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
11、Independent independent intellectual property rights
