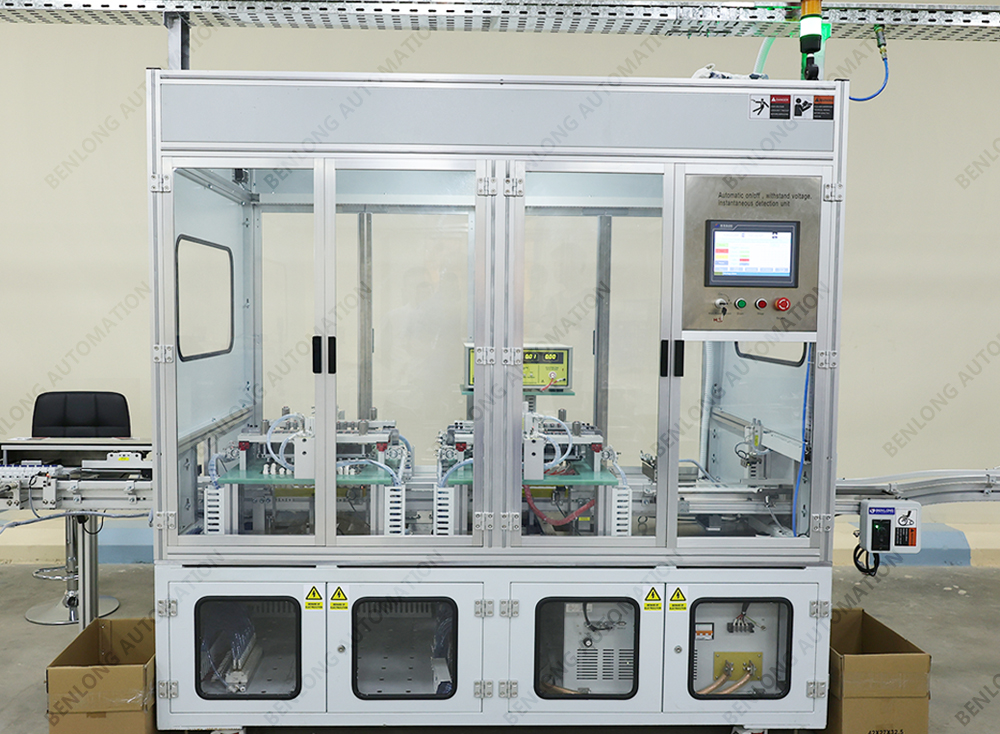

MCB automatic on/off, withstand voltage, and instantaneous detection unit
See More>>
It has online monitoring, real-time monitoring, quality traceability, barcode recognition, key component life monitoring, data storage, MES system and ERP system networking, parameter arbitrary formula, intelligent energy analysis and energy-saving management system, intelligent equipment service big data cloud platform, etc.
Adopting the design concept of multi specification mixed production, automation, informatization, modularization, flexibility, customization, visualization, cloud computing, one click switching, warning notification, evaluation report, data collection and processing, global detection management, equipment lifecycle management, more advanced, intelligent, reliable, highly integrated, intelligent scheduling, and remote maintenance.
1. Equipment input voltage 380V ± 10%, 50Hz; ±1Hz；
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module
3. Equipment production cycle: 1 second/pole, 1.2 seconds/pole, 1.5 seconds/pole, 2 seconds/pole, 3 seconds/pole; Five different specifications of equipment.
4. The same shelf product can be switched with one click or scanned to switch between different pole numbers; Different shell products require manual replacement of molds or fixtures.
5. Current output system: AC3~1500A or DC5~1000A, AC3~2000A, AC3~2600A can be selected according to the product model.
6. The parameters for detecting high and low current multiples can be set arbitrarily; Current accuracy ± 1.5%; Waveform distortion ≤ 3%
7. Release type: B type, C type, D type can be freely selected.
8. Release time: 1~999mS parameter can be set arbitrarily; Detection frequency: 1~99 times. Parameters can be set arbitrarily.
9. The product can be tested horizontally or vertically as an optional option.
10. High voltage output range: 0~5000V; The leakage current can be selected in different levels of 10mA, 20mA, 100mA, and 200mA.
11. Testing high-voltage insulation time: 1~999S parameters can be set arbitrarily.
12. Detection frequency: 1~99 times. Parameters can be set arbitrarily.

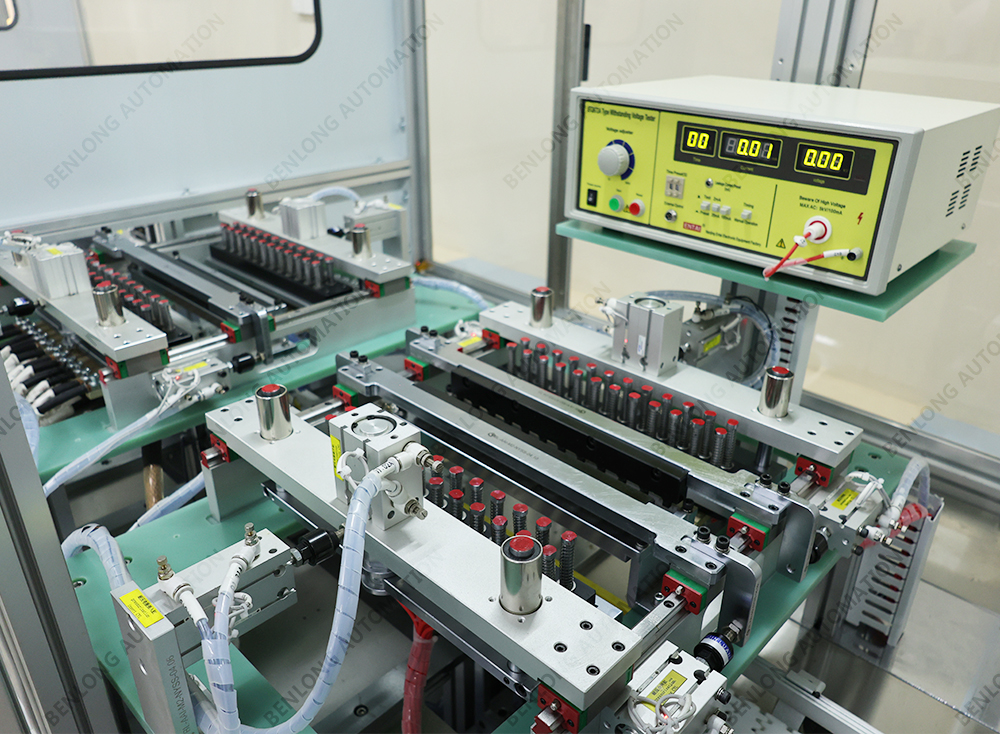

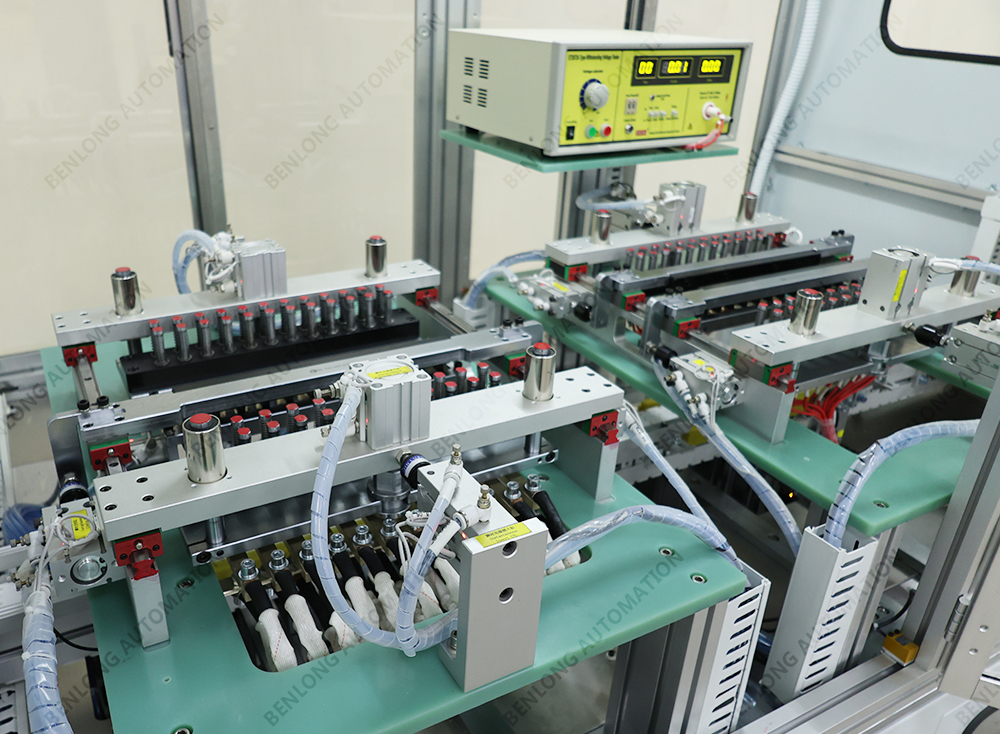

13. High voltage detection location: When the product is in the closed state, detect the withstand voltage between phases; When the product is in the closed state, detect the voltage resistance between the phase and the bottom plate; When the product is in the closed state, check the voltage resistance between the detection phase and the handle; When the product is in the open state, check the voltage resistance between the incoming and outgoing lines.
14. The equipment has alarm display functions such as fault alarm and pressure monitoring.
15. There are two operating systems: Chinese version and English version.
16. All core components are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
17. The device can be equipped with functions such as “Smart Energy Analysis and Energy Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
18. Having independent and proprietary intellectual property rights
