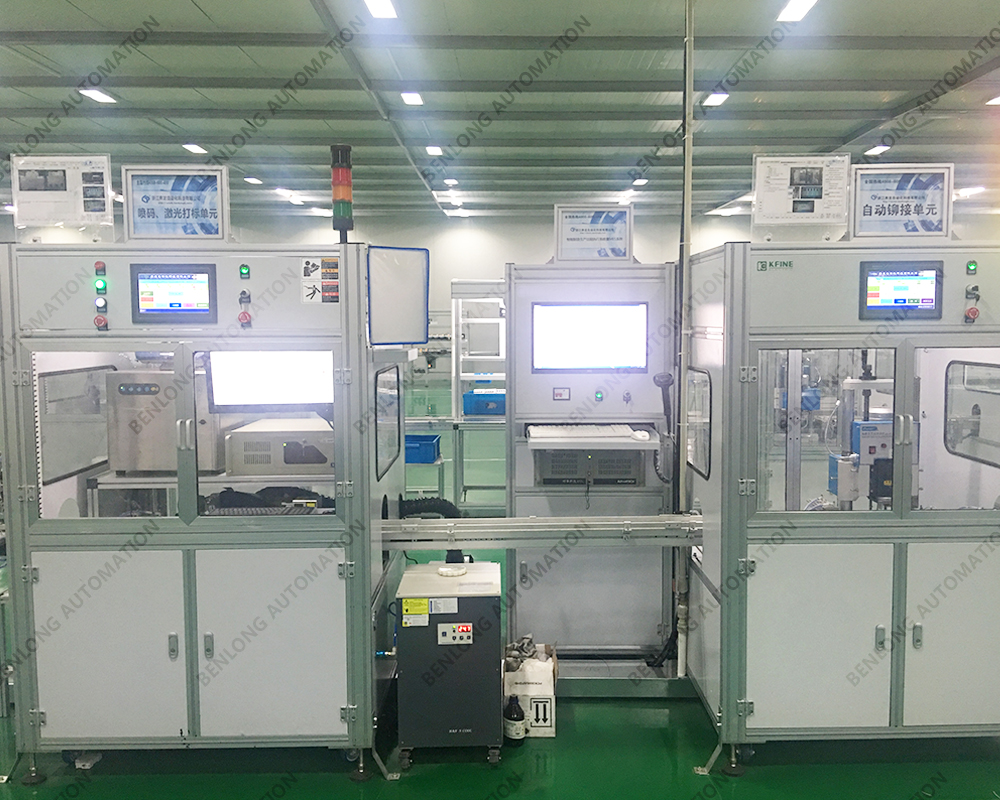

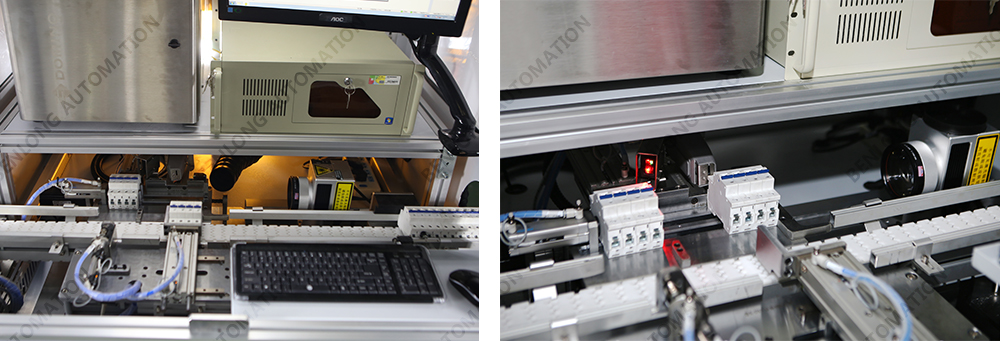

MCB automatic laser and coding equipment

Short Description:

Automatic laser coding: the equipment is equipped with high-precision laser coding system, which can automatically print the identification code, serial number and other information in the form of laser coding on MCB miniature circuit breakers.

High-speed coding: the equipment is equipped with efficient laser coding technology and fast coding speed, which can meet the production demand of a large number of MCB miniature circuit breakers.

High-precision coding: the laser coding system of the equipment is equipped with high-precision positioning and control functions, with high coding precision and clearly visible coding results.

Multi-format identification code: the equipment can print different formats of identification code, such as two-dimensional code, barcode, etc., according to the demand, in order to meet different applications and traceability requirements.

Automatic identification and calibration: the equipment is equipped with automatic identification system, which can automatically detect the quality of laser coding, detect and correct coding errors in a timely manner to ensure accurate coding.

Automatic adjustment and alignment: the equipment is equipped with automatic adjustment and alignment function, which can automatically adjust the laser spraying position and alignment mode according to different models and sizes of MCB miniature circuit breakers to improve production efficiency and spraying quality.

Data management and traceability: the equipment is equipped with data management system, which can record the coding information and production data of each MCB miniature circuit breaker to realize product traceability and management.

Send email to us

Photograph

Parameters

Video

Previous: MCB automatic coding equipment

Next: MCB automatic laser marking equipment

1, equipment input voltage 220V/380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible with the number of poles: 1P, 2P, 3P, 4P, 5P
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of the device.
4, the same shell frame products, different poles can be switched with one key; different shell frame products need to manually replace the mold or fixture.
5、Equipment fixture can be customized according to the product model.
6, the laser parameters can be pre-stored in the control system, automatic retrieval marking; marking two-dimensional code parameters and spray code parameters can be set arbitrarily, generally ≤ 24 bits.
7、Equipment with fault alarm, pressure monitoring and other alarm display functions.
8, Chinese and English version of the two operating systems.
All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
11、Independent independent intellectual property rights
